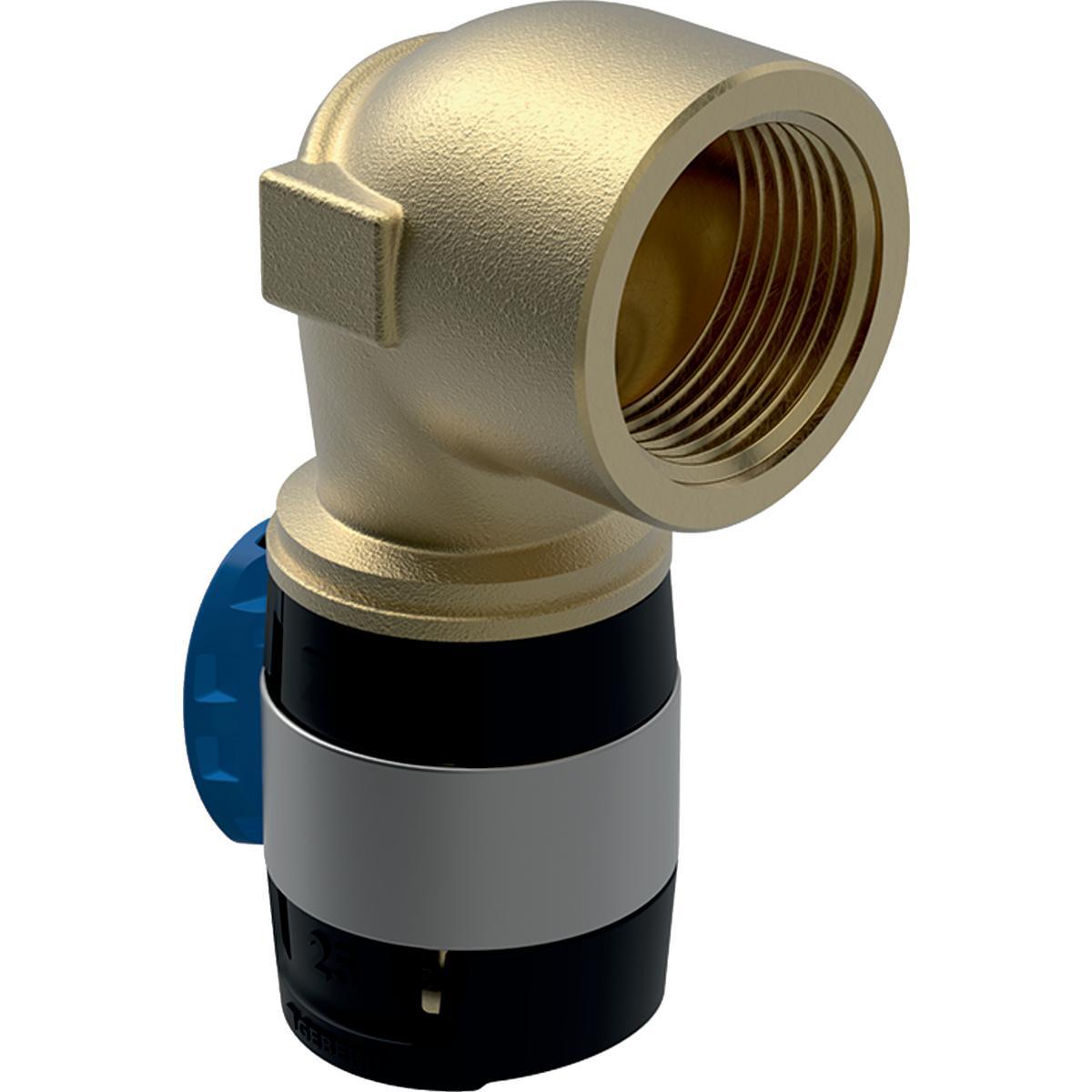

Bend x female thread 90° FlowFit, Geberit
FLOWFIT ELBOW 90° 20XR15 FEMALE THREAD, GEBERIT
Article number: Suppl. article no:
2253719
620.541.00.1
to see price and stock
- Article number: 2253719
- Suppl. article no: 620.541.00.1
- Ean no: 4025416641438
- Material class PAQ17A
- This is an alternative to item 1875176
Technical data
- Packagin Size: 1 PCS/10 PCS/50 PCS
- Outer pipe diameter connection 1: 20 mm
- Nominal diameter connection 2: 1/2 inch (15)
- Nominal diameter connection 1: DN 15
- Bend angle: 90 °
- Material connection 2: Bronze
- Material connection 1: Bronze
- Connection 1: Press sleeve
- Connection 2: Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)
- Shape: Bend
- Reducing: No
- Material sealing: Ethylene-propylene diene monomer rubber (EPDM)
- Material quality connection 2: CuSn4Zn2PS
- Material quality connection 1: CuSn4Zn2PS
- With de-aerator: No
- With drain valve: No
- With sealing rings/gaskets: Yes
- Capped: Yes
- System specific: Yes
- Surface treatment connection 1: Untreated
- Surface treatment connection 2: Untreated
- Surface protection connection 1: Untreated
- Surface protection connection 2: Untreated
- Wall thickness, connection 1: 2 mm
- Working length connection 2: 11 mm
- Working length connection 1: 28 mm
- Length of connection 2: 24 mm
- Length of connection 1: 61 mm
- High tensile strength: Yes
- Main colour fitting: Other
- Contour code connection 1: Other
- Contour code connection 2: Other
- With connection indicator: No
- With thermal insulation: No
- REACH Date: 2019-08-22
- REACH Information obligation: No
