LK

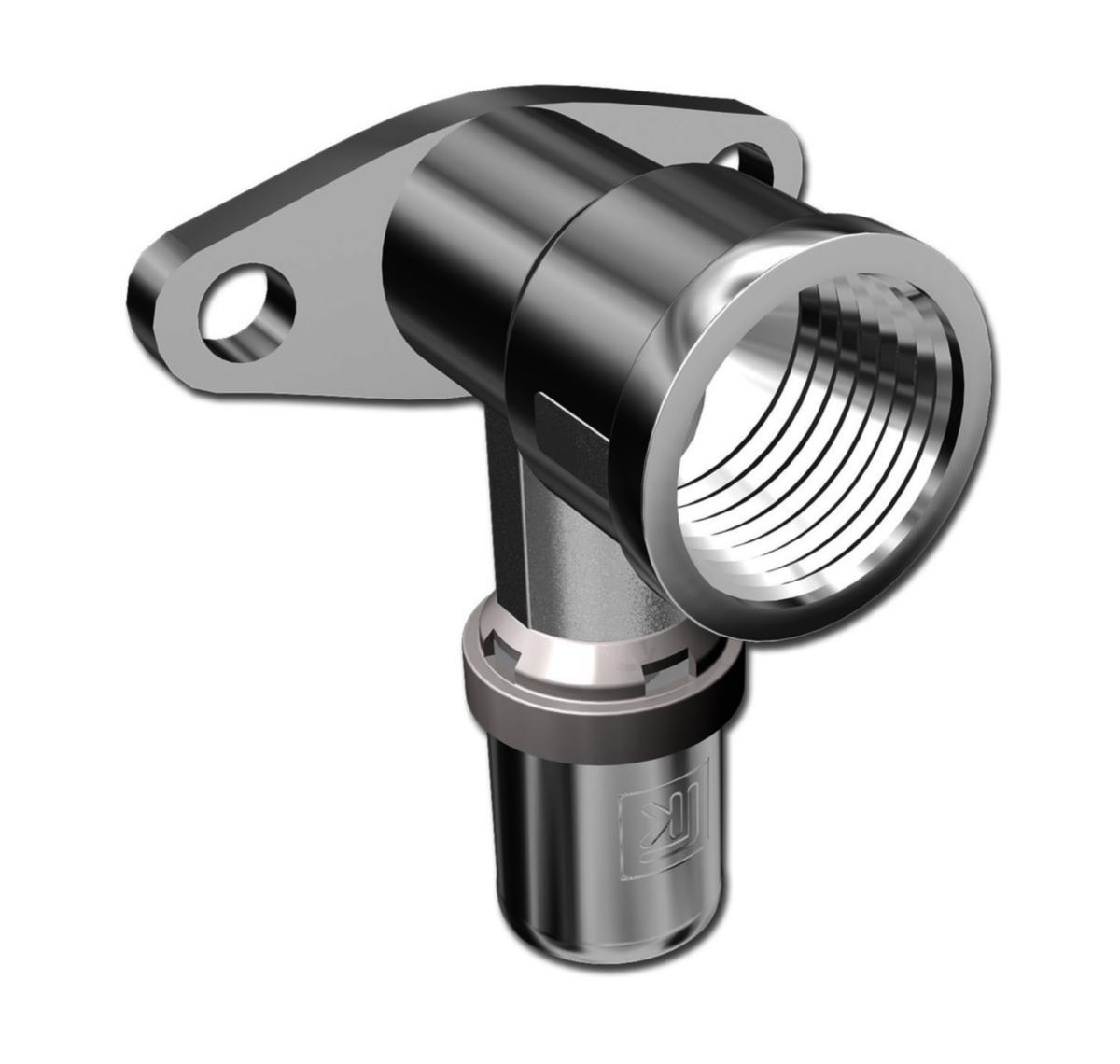

Valve bracket, PressPex, LK
WALL ANGLE AX16X½" LK SYSTEMS
Article number: Suppl. article no:
1876596
1876596
to see price and stock
Press coupling for joining LK PAL and LK PE-X Universal pipe.
- Article number: 1876596
- Suppl. article no: 1876596
- Ean no: 7331590014201
- Material class PAM12B
Technical data
- Packagin Size: 1 ST/10 ST
- Outer pipe diameter connection 1: 16 mm
- Thread size tap connection: 1/2 inch
- Connection: Press sleeve
- Shape: Continuous right-angled
- Material quality: Dezincification resistant brass (DZR)
- Surface protection: Nickel-plated
- System specific: Yes
- Length of connection 2: 14 mm
- Working length connection 1: 43 mm
- Working length connection 2: 24 mm
- Length from wall plate: 39 mm
- Max. operating pressure at 20 °C: 10 bar
- Contour code: TH
- Nominal diameter connection 2: 1/2 inch (15)
- KIWA certified: Yes
- Housing material: Brass
- Gastec QA mark: No
- Max. medium temperature (continuous): 70 °C
- REACH Date: 2022-03-23
- REACH contains candidate substances: Bly
- Min. medium temperature (continuous): 0 °C
- GWP-tot (A1-A3): 0,3672 kgCO2e/ST
- REACH Information obligation: Yes
