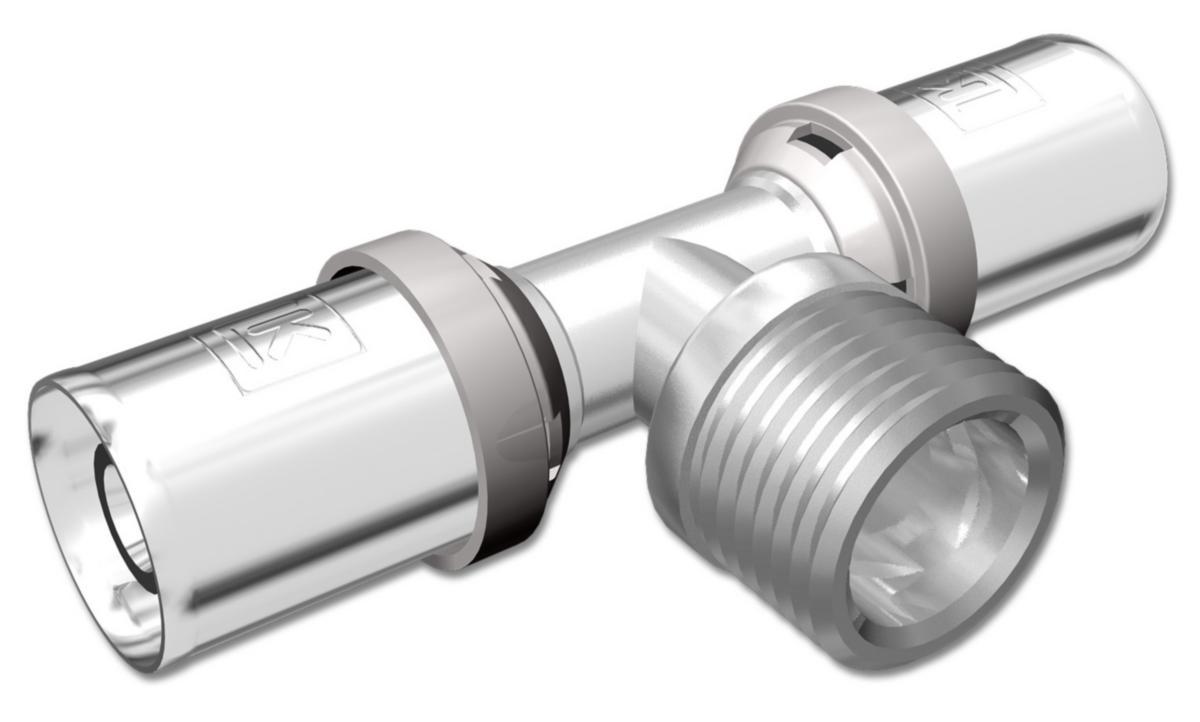

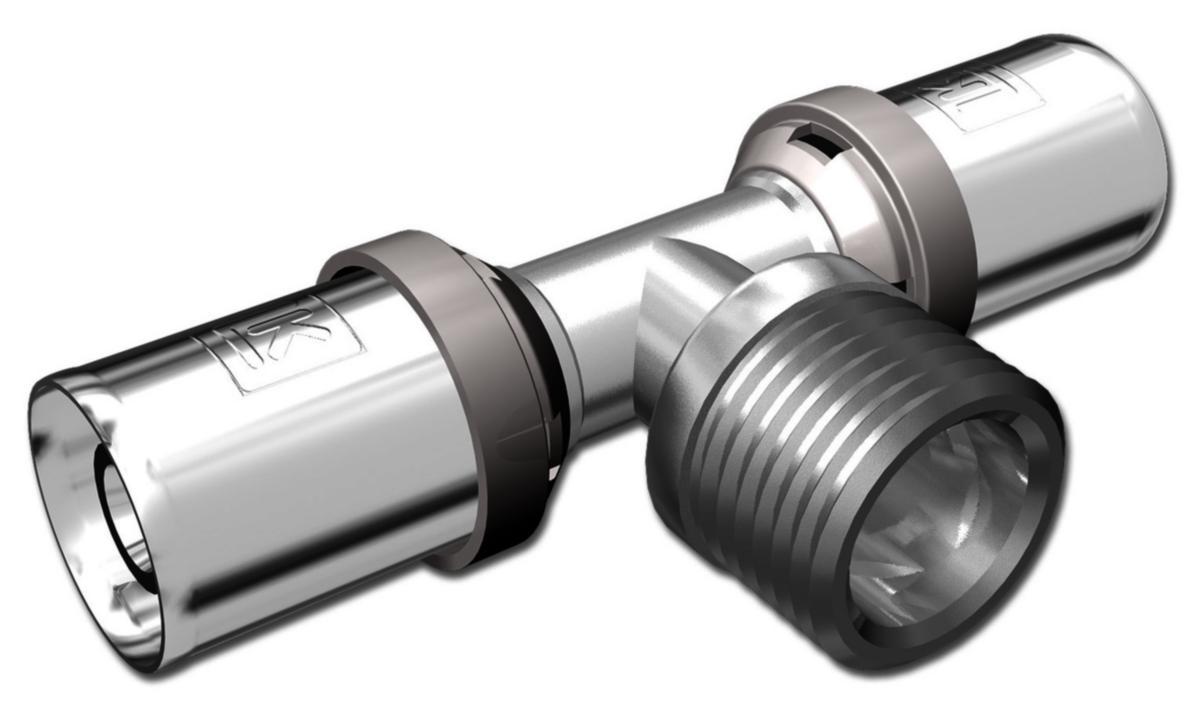

T-connector external thread branch, PressPex, LK
TEE MALE THREAD AX16X½" LK SYSTEMS
Article number: Suppl. article no:
1876565
1876565
to see price and stock
Press coupling for joining LK PAL and LK PE-X Universal pipe.
- Article number: 1876565
- Suppl. article no: 1876565
- Ean no: 7331590013969
- Material class PAM12A
Technical data
- Packagin Size: 1 ST/5 ST
- Outer pipe diameter connection 1: 16 mm
- Outer pipe diameter connection 3: 16 mm
- Nominal diameter connection 2: 1/2 inch (15)
- Connection 1: Press sleeve
- Connection 2: External thread conical BSPT-R (ISO 7-1 / EN 10226-1)
- Connection 3: Press sleeve
- Contour code connection 1: TH
- Contour code connection 3: TH
- Medium temperature (continuous): 70 °C
- Material connection 1: Brass
- Material connection 2: Brass
- Material connection 3: Brass
- Max. operating pressure at 20 °C: 10 bar
- Surface protection connection 1: Nickel-plated
- Surface protection connection 2: Nickel-plated
- Surface protection connection 3: Nickel-plated
- Flange compression class: PN 10
- Multi-part: No
- Reducing: No
- With de-aerator: No
- Material quality connection 1: Dezincification resistant brass (DZR)
- Material quality connection 2: Dezincification resistant brass (DZR)
- Material quality connection 3: CuZn39Pb2 (CW612N)
- Surface treatment connection 1: Untreated
- Surface treatment connection 2: Untreated
- Surface treatment connection 3: Untreated
- FM quality mark: No
- LPCB quality mark: No
- With drain valve: No
- Capped: No
- With sealing rings/gaskets: No
- Model: T-piece
- With buffer stud: Yes
- Swept entry type (with inner radius): No
- System specific: Yes
- UL quality mark: No
- ULC quality mark: No
- KIWA certified: Yes
- Gastec QA mark: No
- VdS quality mark: No
- REACH Date: 2022-03-23
- REACH contains candidate substances: Bly
- GWP-tot (A1-A3): 0,3302 kgCO2e/ST
- REACH Information obligation: Yes
