AhlsellProductsHeating and SanitationInstallation pipes and partsDomestic hot water systemDomestic hot water systems Universal/PAL, LK
LK

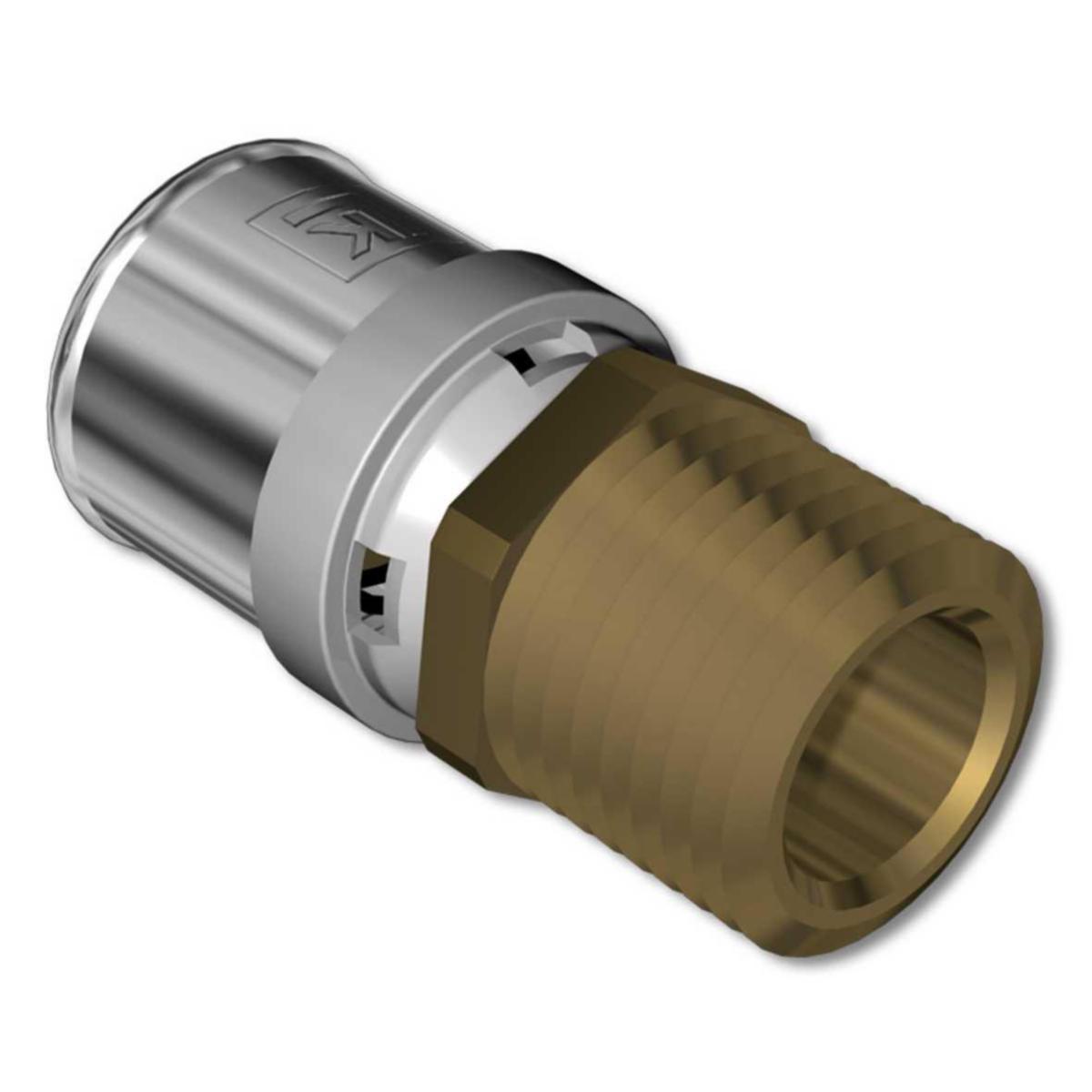

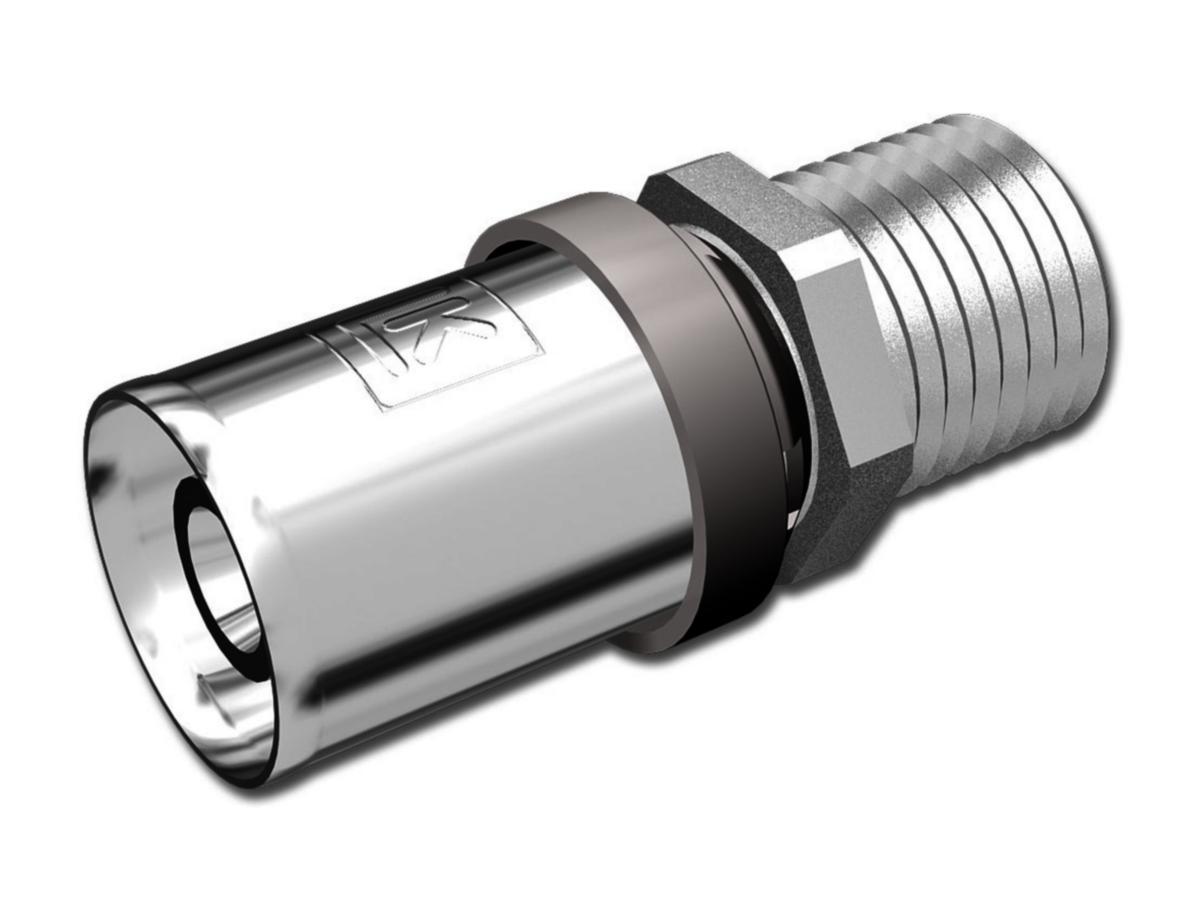

Straight coupling external thread PressPex, LK
STRAIGHT FITTING MALE A40X1" LK PRESSPEX
Article number: Suppl. article no:
1872034
1872034
to see price and stock
Press coupling for joining LK PAL and LK PE-X Universal pipe.
- Article number: 1872034
- Suppl. article no: 1872034
- Ean no: 9008037009455
- Material class PAM12B
Technical data
- Packagin Size: 1 ST/90 ST
- Nominal diameter connection 2: 1 inch (25)
- Outer pipe diameter connection 1: 40 mm
- Connection 1: Press sleeve
- Connection 2: External thread conical BSPT-R (ISO 7-1 / EN 10226-1)
- Material quality connection 1: Dezincification resistant brass (DZR)
- Material quality connection 2: Dezincification resistant brass (DZR)
- Shape: Straight
- KIWA certified: Yes
- Medium temperature (continuous): 0-70 °C
- Contour code connection 1: TH
- Gastec QA mark: No
- Flange compression class: PN 10
- Max. operating pressure at 20 °C: 10 bar
- Reducing: No
- Length: 62.5 mm
- Surface protection connection 1: Untreated
- Surface protection connection 2: Nickel-plated
- Surface treatment connection 1: Untreated
- Surface treatment connection 2: Untreated
- Model: 1-part
- FM quality mark: No
- LPCB quality mark: No
- Material connection 1: Brass
- Material connection 2: Brass
- Material sealing: Ethylene-propylene diene monomer rubber (EPDM)
- With de-aerator: No
- With drain valve: No
- Capped: No
- With sealing rings/gaskets: No
- With buffer stud: Yes
- System specific: Yes
- UL quality mark: No
- ULC quality mark: No
- REACH Date: 2022-03-21
- REACH contains candidate substances: Bly
- GWP-tot (A1-A3): 0,5336 kgCO2e/ST
- REACH Information obligation: Yes
