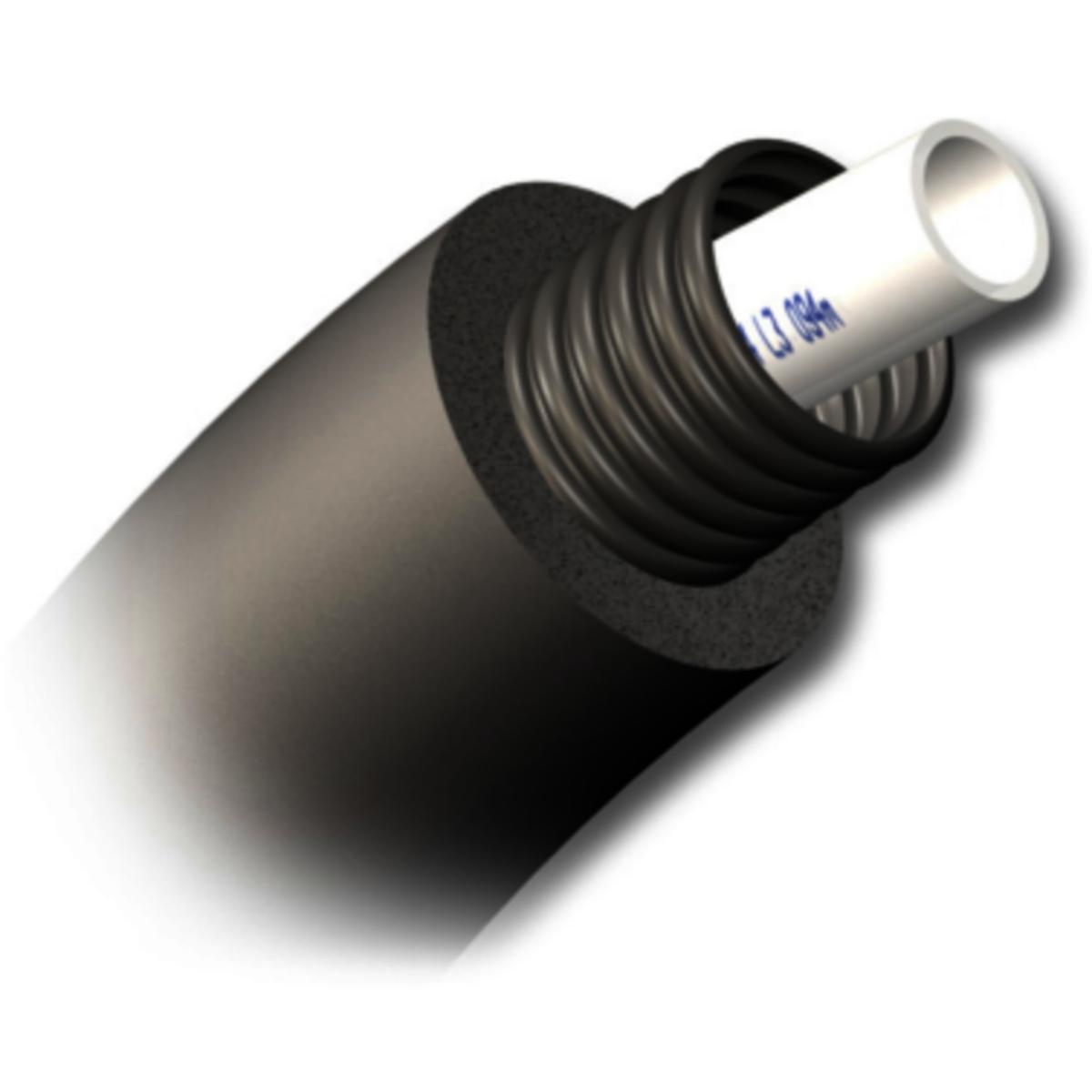

PE-X Universal Pipe with Extra Insulated Conduit, RiR Extra, LK
UNIVERSAL PIP EXTRA X25/50M ISO 13, 50M, (PRICE PER UNIT)
Article number: Suppl. article no:
1870697
1870697
to see price and stock
Supplied installed in empty pipes of HD polyethylene, equipped with surface mounted insulation of cellular rubber. Supplied coiled in carton package.
- Article number: 1870697
- Suppl. article no: 1870697
- Ean no: 7331590002154
- Material class PAM100
Technical data
- Packagin Size: 1 ST/2 ST
- Outer pipe diameter: 25 mm
- Outer diameter mantle pipe: 34 mm
- Wall thickness: 3.5 mm
- Thickness of thermal insulation: 13 mm
- Quality class outer layer: PE-Xa
- Number of layers: 5
- Colour of thermal insulation: Other
- Quality class inner layer: PE-Xa
- Material inner layer: Plastic
- Material intermediate layer: Other
- Material outer layer: Plastic
- With mantle pipe: Yes
- With thermal insulation: Yes
- Quality class intermediate layer: Ethylene vinyl alcohol (EVOH)
- Min. bending radius: 60 mm
- Nominal diameter: DN 20
- Pipe colour: White
- System specific: Yes
- Capped: No
- Medium temperature (continuous): -20-70 °C
- DVGW quality mark for gas: No
- Expansion coefficient: 12 mm/(m.K)
- Wall roughness: 0.0005 mm
- Diffusion-proof: Yes
- Flexible: Yes
- Colour outer sheath: Grey
- Glass-fibre reinforced: No
- Suitable for surface mounting: No
- Max. operating pressure at 20 °C: 10 bar
- Max. medium temperature (momentarily): 95 °C
- REACH Date: 2021-06-15
- REACH Information obligation: No
