Neoperl

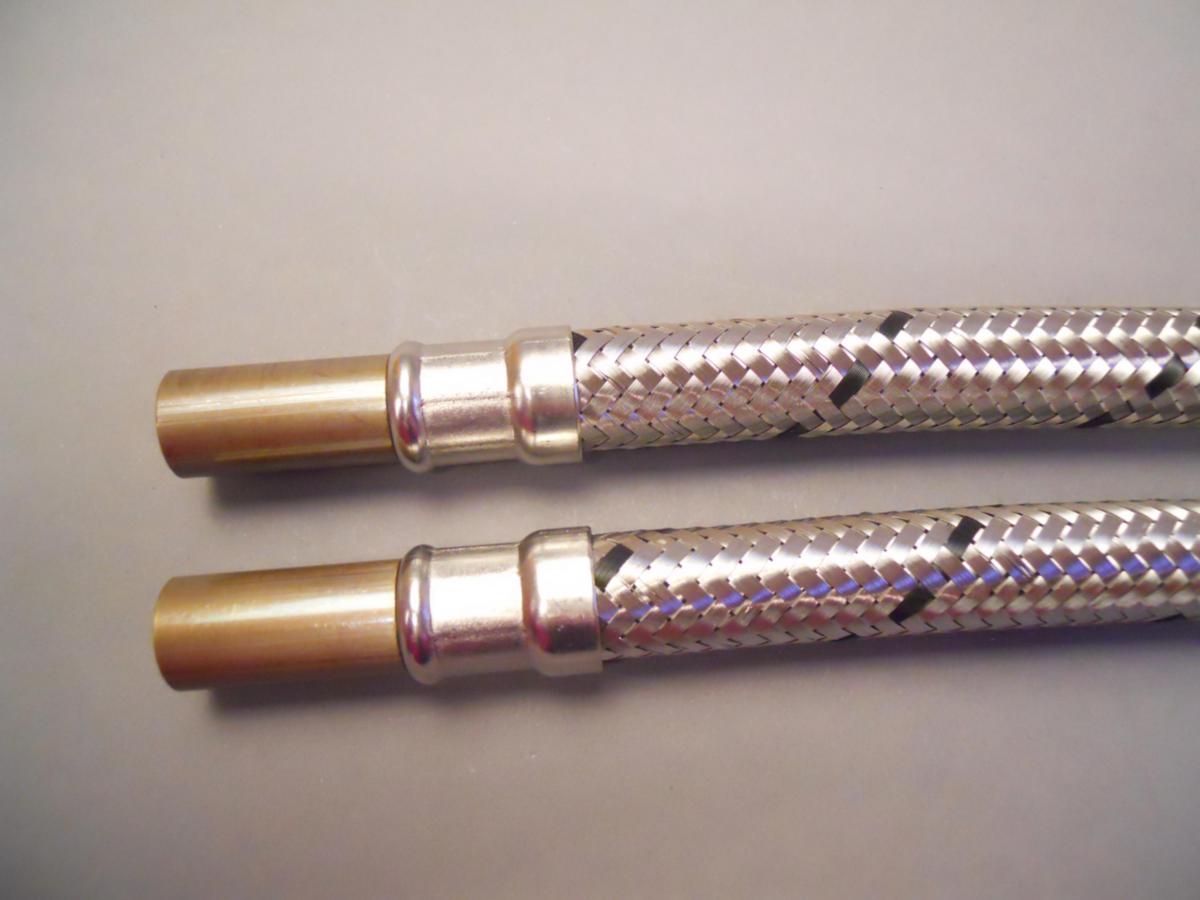

Hose with stainless steel braid and smooth end for clamp or press fitting, a-collection
NEOFLEX SILICON HOSE DN13 0,4M 15MMX15MM STRAIGHT SMOOTH END
Article number: Suppl. article no:
8192745
36358904001
to see price and stock
Silicon inner hose, stainless steel sleeves, brass couplings. Max operating pressure at 90gr 10 bar, at 20gr , 25 bar. Tap water approved, for connection of water heaters and pumps, etc.
Smooth end.
Smooth end.
- Article number: 8192745
- Suppl. article no: 36358904001
- Ean no: 5708550105705
- Replaces art.nbr: 8182421
- Material class PCP02A
Technical data
- Packagin Size: 1 ST/50 ST
- Connection 1: Slide end
- Connection 2: Slide end
- Nominal diameter connection 1: DN 15
- Nominal diameter connection 2: DN 15
- Length: 400 mm
- DVGW quality mark for gas: No
- Nominal diameter hose: DN 13
- Approved according to GDV: No
- Material: Silicone
- Material connection 1: Brass
- Material connection 2: Brass
- Material of braiding: Stainless steel
- Material quality connection 1: CuZn39Pb3 (CW617N)
- Material quality connection 2: CuZn39Pb3 (CW617N)
- With braiding: Yes
- Model: Straight/straight
- Type approval according to BBR/EKS: No
- Outer pipe diameter connection 1: 15 mm
- Outer pipe diameter connection 2: 15 mm
- Outer dimensions: 15
- Material: Silicone
