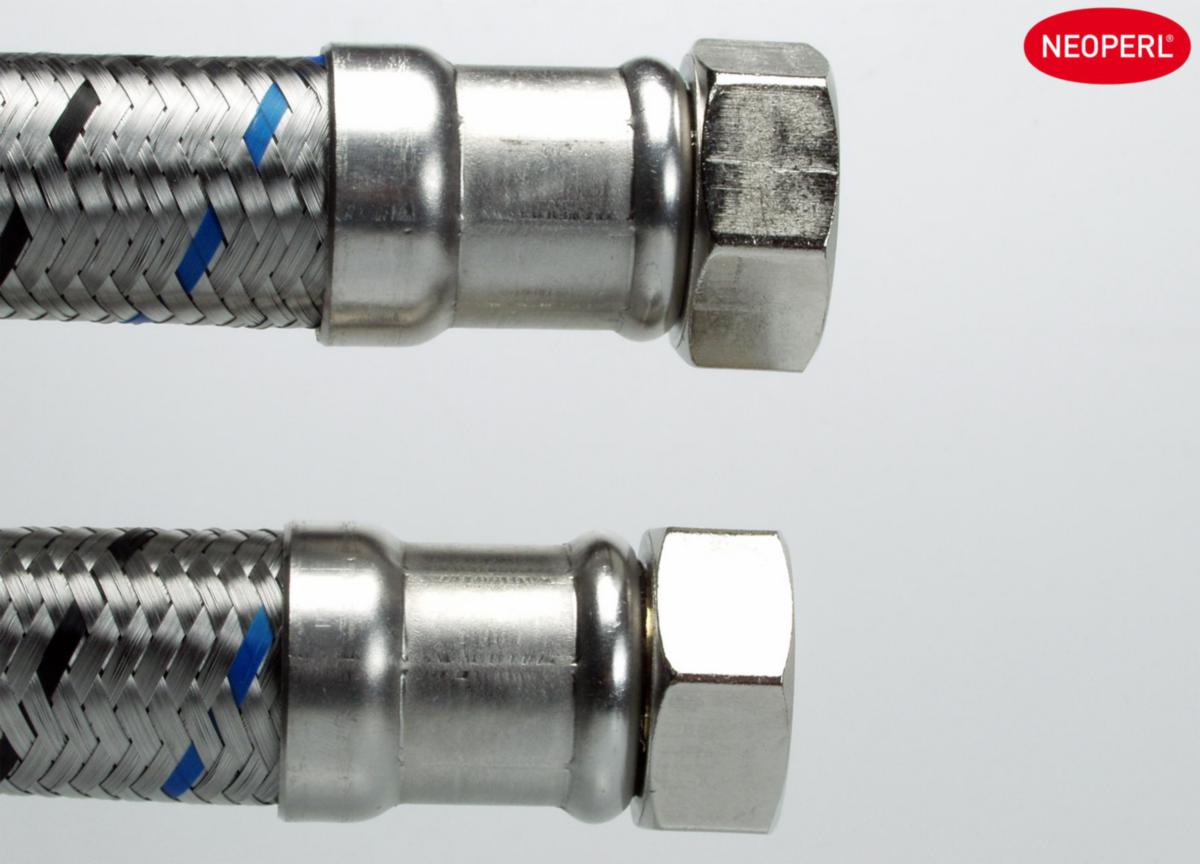

Diffusion-tight hose stainless steel braiding with threaded connections, a-collection - NEOFLEX BUTYL DN25 1200 MM SS R25 FEMALE, SWIVEL NUT
Neoperl

Diffusion-tight hose stainless steel braiding with threaded connections, a-collection

NEOFLEX BUTYL DN25 1200 MM SS R25 FEMALE, SWIVEL NUT
Article number:
8192616
Suppl. article no:
36570112001





 to see price and stock
Butyl inner hose, stainless steel sleeves, brass couplings. Max operating pressure at 90gr 10 bar, at 20gr , 25 bar. For connection of cooling & heating systems as well as cold & hot water for technical use, etc.
Straight, int. pipe thread with swivel nuts.
  • Article number:
    8192616
  • Suppl. article no:
    36570112001
  • Material class
    PCP02B
Technical data
  • Packagin Size: 1 PCS/10 PCS
  • Connection 1: Internal thread
  • Connection 2: Internal thread
  • Nominal diameter connection 1: 1 inch (25)
  • Nominal diameter connection 2: 1 inch (25)
  • Outer pipe diameter connection 1: 25 mm
  • Outer pipe diameter connection 2: 25 mm
  • Length: 1200 mm
  • Max. medium temperature (continuous): 100 °C
