Vatette

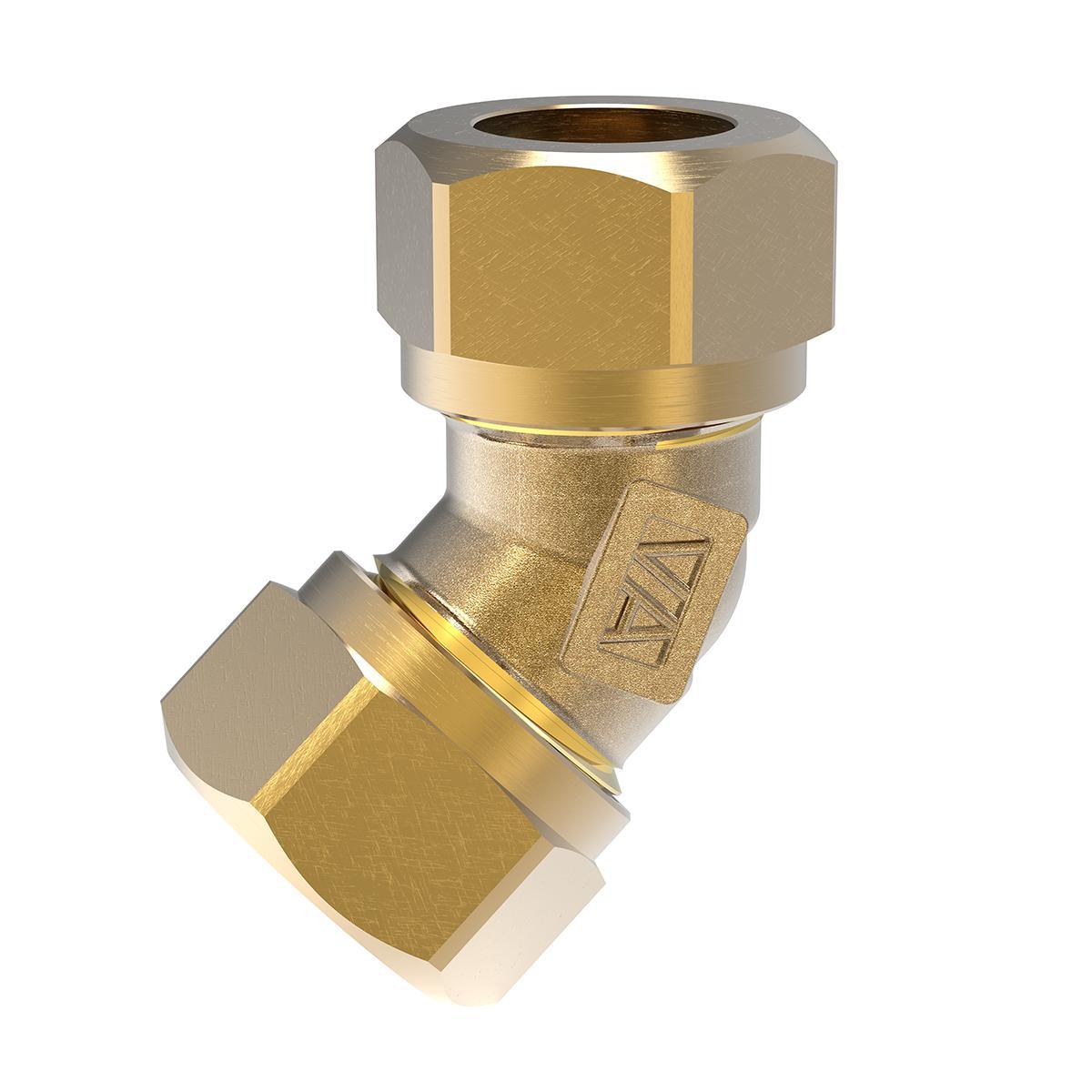

Angle coupling 45° yellow, Vatette
Vatette Elbow 15, 45 degree
Article number: Suppl. article no:
8505155
FG0390500
to see price and stock
For copper, steel and PEX pipes. For some soft thin-walled copper and steel pipes as well as PEX pipes, support sleeves must be used. G = cylindrical pipe thread. For smooth ends
- Article number: 8505155
- Suppl. article no: FG0390500
- Ean no: 7393792106740
- Material class PAD10A
Technical data
- Outer pipe diameter connection 1: 15 mm
- Outer pipe diameter connection 2: 15 mm
- Connection 1: Compression ring
- Connection 2: Compression ring
- Material connection 1: Brass
- Material connection 2: Brass
- Material quality connection 1: Dezincification resistant brass (DZR)
- Material quality connection 2: Dezincification resistant brass (DZR)
- Max. operating pressure at 20 °C: 16 bar
- Bend angle: 45 °
- Shape: Elbow (fitting)
- Surface treatment connection 1: Untreated
- Surface treatment connection 2: Untreated
- Surface protection connection 1: Untreated
- Surface protection connection 2: Untreated
- Medium temperature (continuous): -20-120 °C
