Vatette

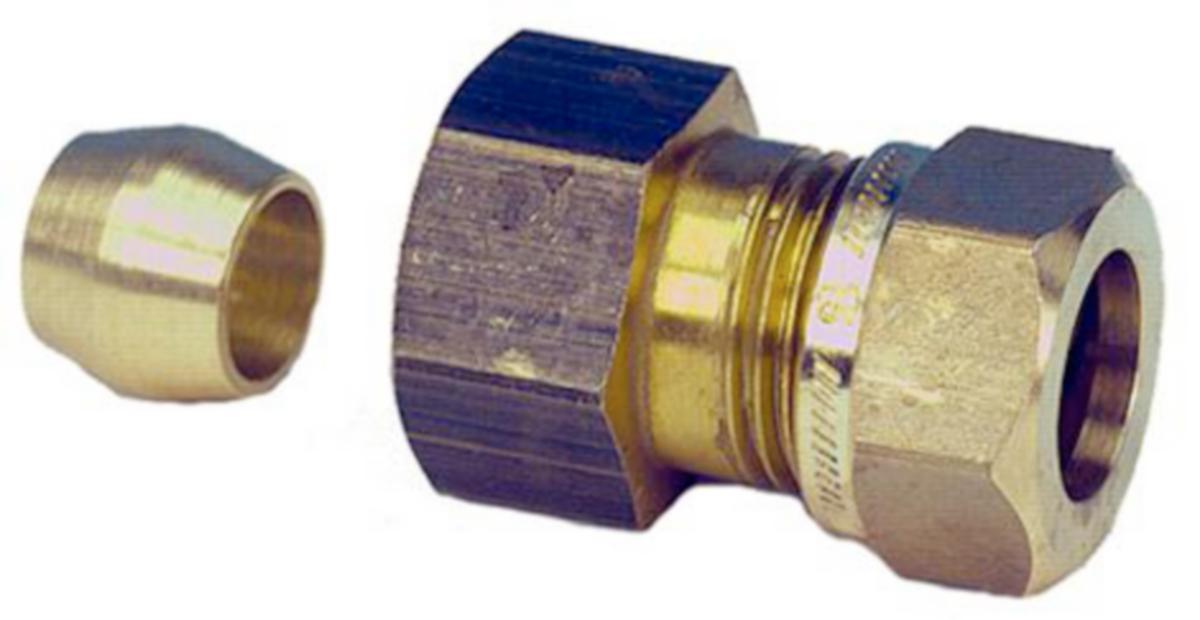

Securex screw part transition, Vatette
16 SECUREX-VATETTE DY 15-8 TRANSITION NIPPLE
Article number: Suppl. article no:
1946482
FG0398051
to see price and stock
For copper, steel and PEX pipes. Support sockets must be used for soft and semi-hard copper and steel pipes and PEX pipes. G=cylindrical pipe thread.
- Article number: 1946482
- Suppl. article no: FG0398051
- Ean no: 7393792004831
- Material class PAD10B
Technical data
- Packagin Size: 1 ST/5 ST
- Outer pipe diameter connection 1: 16 mm
- Outer pipe diameter connection 2: 15 mm
- Connection 1: Internal thread metric
- Connection 2: Clamp connection
- Nominal diameter connection 1: M21 x 1.5
- Nominal diameter connection 2: 1/2 inch (15)
- Material connection 1: Brass
- Material connection 2: Brass
- Material quality connection 1: Dezincification resistant brass (DZR)
- Material quality connection 2: Dezincification resistant brass (DZR)
- Max. operating pressure at 20 °C: 16 bar
- Surface protection connection 1: Untreated
- Surface protection connection 2: Untreated
- Max. medium temperature (continuous): 100 °C
- REACH Date: 2022-05-20
- REACH contains candidate substances: Bly
- Colour: Yellow
- REACH Information obligation: Yes
