Vatette

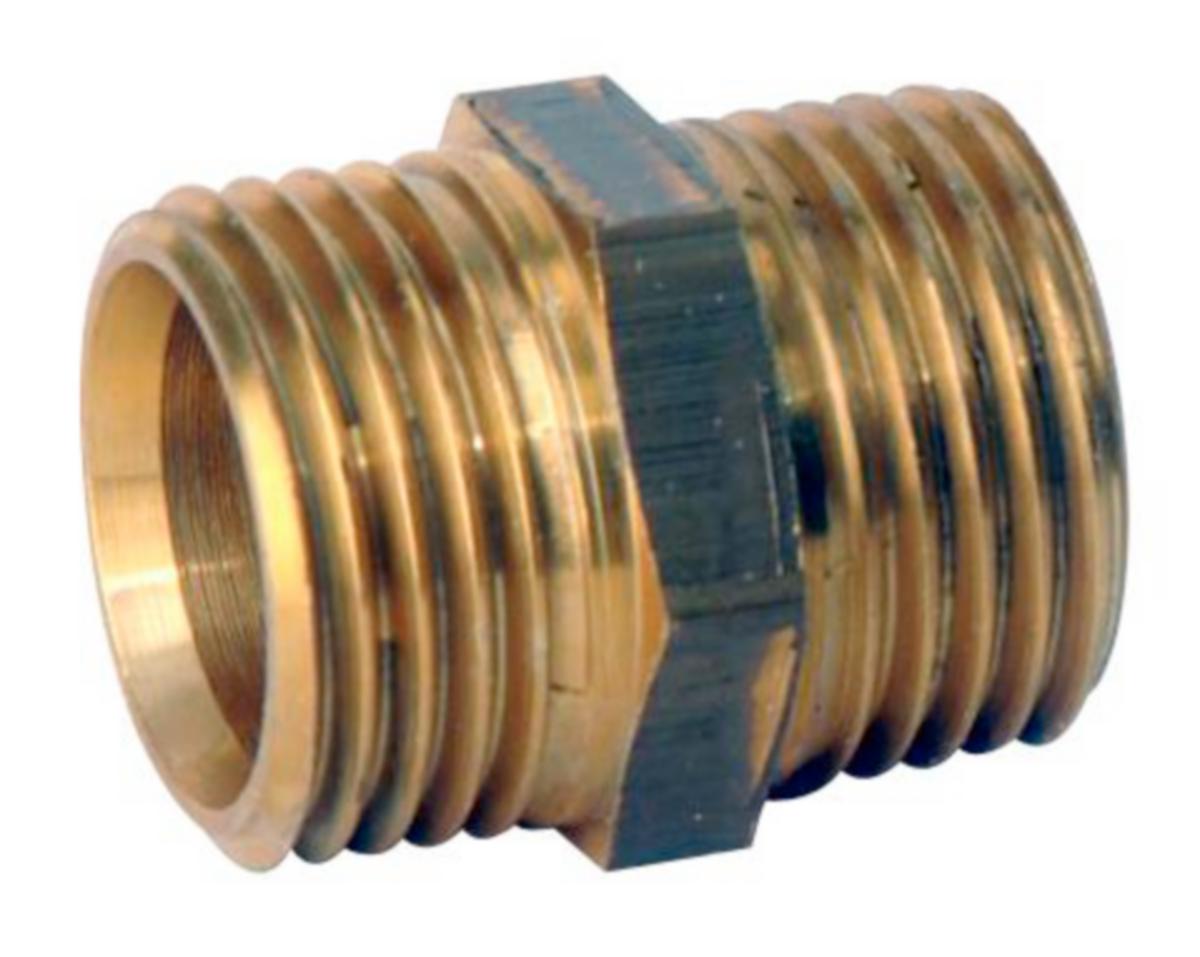

Straight screw part VA 1130, yellow, Vatette
22 VATETTE SCREW PART STRAIGHT M28X1 MALE VA1130
Article number: Suppl. article no:
1940642
FG0603474
to see price and stock
For copper, steel and PEX pipes. Support sockets must be used for soft and semi-hard copper and steel pipes and PEX pipes. G=cylindrical pipe thread.
- Article number: 1940642
- Suppl. article no: FG0603474
- Ean no: 7393792100205
- Material class PAD10B
Technical data
- Packagin Size: 1 ST/5 ST
- Outer pipe diameter connection 1: 22 mm
- Outer pipe diameter connection 2: 22 mm
- Connection 1: External thread metric
- Connection 2: External thread metric
- Nominal diameter connection 1: M28 x 1.5
- Nominal diameter connection 2: M28 x 1.5
- Material connection 1: Brass
- Material connection 2: Brass
- Material quality connection 1: Dezincification resistant brass (DZR)
- Material quality connection 2: Dezincification resistant brass (DZR)
- Max. operating pressure at 20 °C: 16 bar
- Shape: Straight
- With buffer stud: Yes
- Surface treatment connection 1: Untreated
- Surface treatment connection 2: Untreated
- Surface protection connection 1: Untreated
- Surface protection connection 2: Untreated
- Medium temperature (continuous): -50-120 °C
- REACH Date: 2022-05-20
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
