AhlsellProductsHeating and SanitationInstallation pipes and partsCompression ring couplingsCompression ring couplings yellow brass, a-collection
a-collection

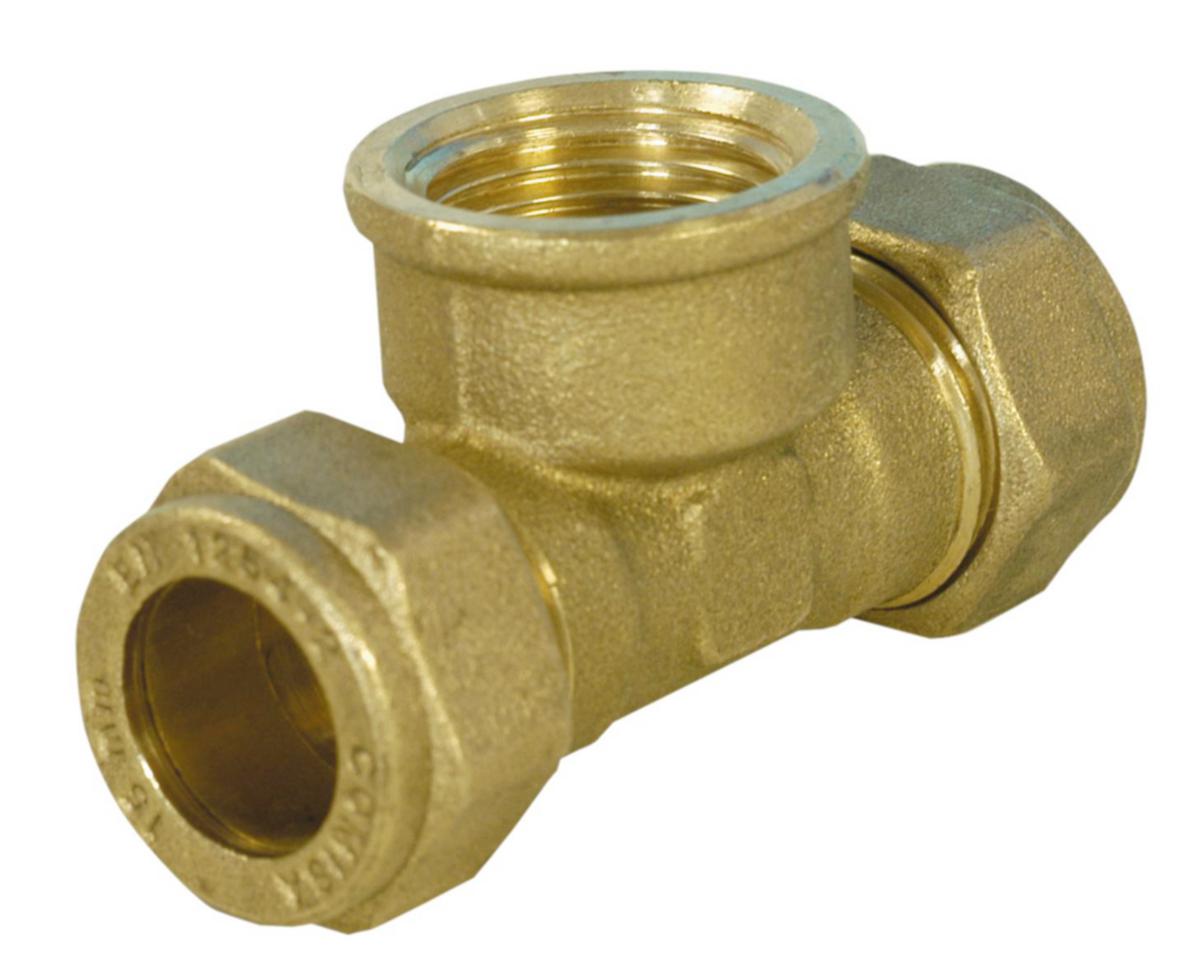

T-connector 90°, A 717, a-collection
15xG15 COMPRESSION FITTING CU x FEMALE, T-PIPE A-COLLECTION
Article number: Suppl. article no:
1926204
15X15X1/2 P717DR.1
to see price and stock
For copper and PEX pipes. A support socket must be used on soft and semi-hard copper pipes and PEX pipes. G=cylindrical pipe thread. Type-approved: Swedish certified 0164.
- Article number: 1926204
- Suppl. article no: 15X15X1/2 P717DR.1
- Material class PAD01A
Technical data
- Packagin Size: 1 ST/10 ST
- Connection 1: Compression ring
- Connection 2: Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)
- Connection 3: Compression ring
- Nominal diameter connection 2: 1/2 inch (15)
- Outer pipe diameter connection 1: 15 mm
- Outer pipe diameter connection 3: 15 mm
- Material connection 1: Brass
- Material connection 2: Brass
- Material connection 3: Brass
- Material quality connection 1: Dezincification resistant brass (DZR)
- Material quality connection 2: Dezincification resistant brass (DZR)
- Material quality connection 3: Dezincification resistant brass (DZR)
- Max. operating pressure at 20 °C: 16 bar
- Surface protection connection 1: Untreated
- Surface protection connection 2: Untreated
- Surface protection connection 3: Untreated
- Max. medium temperature (continuous): 100 °C
- Colour: Yellow
