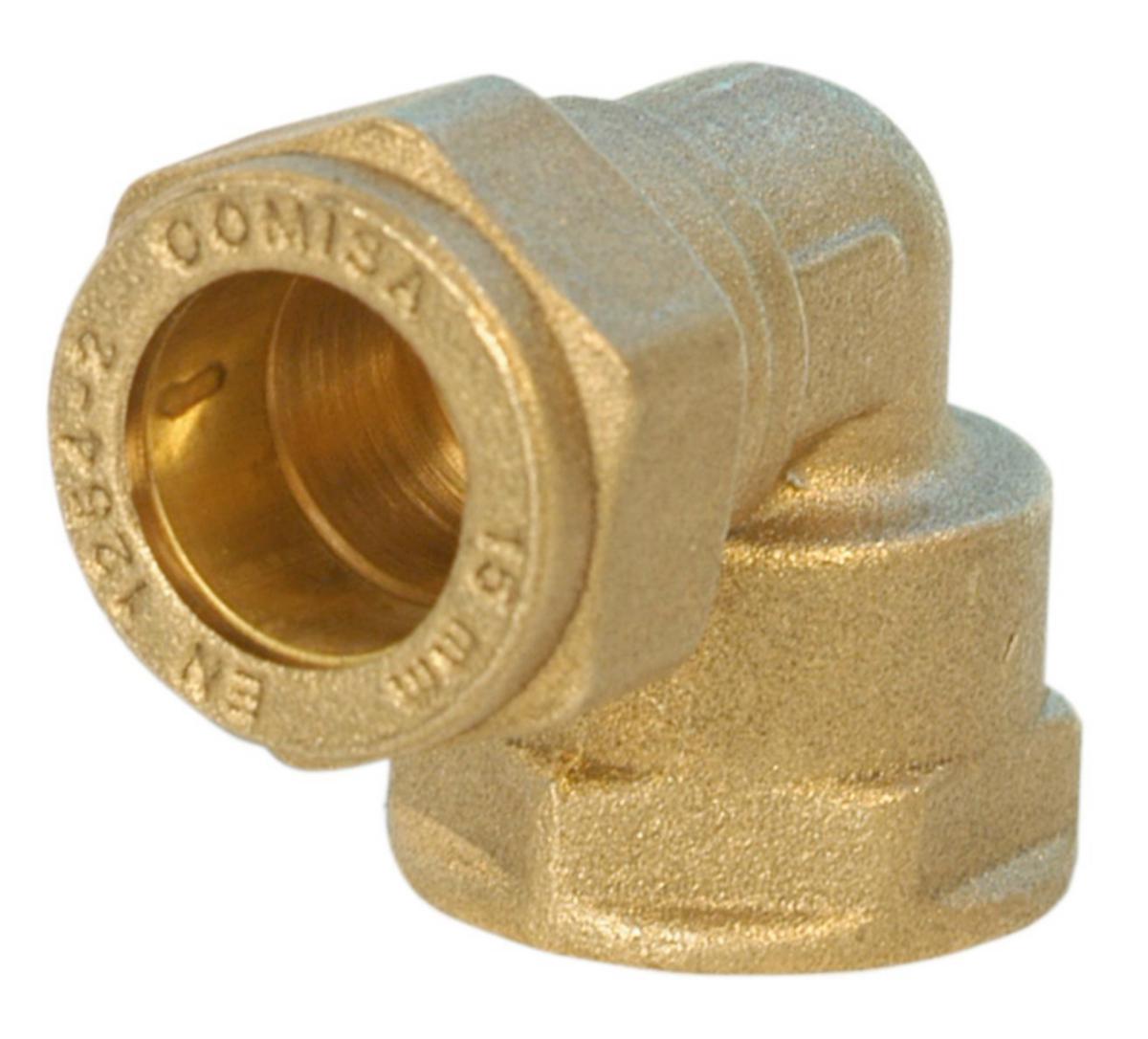

Angle coupling 90°, A 803, a-collection
15xR15 COMPRESSION FITTING CU x FEMALE, ELBOW A-COLLECTION
Article number: Suppl. article no:
1926171
P803DR.06
to see price and stock
For copper and PEX pipes. A support socket must be used on soft and semi-hard copper pipes and PEX pipes. G=cylindrical pipe thread. Type-approved: Swedish certified 0164.
Smooth end x internal thread.
Smooth end x internal thread.
- Article number: 1926171
- Suppl. article no: P803DR.06
- Material class PAD01A
Technical data
- Packagin Size: 1 ST/10 ST
- Outer pipe diameter connection 1: 15 mm
- Connection 1: Compression ring
- Connection 2: Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)
- Nominal diameter connection 2: 1/2 inch (15)
- Material connection 1: Brass
- Material connection 2: Brass
- Material quality connection 1: Dezincification resistant brass (DZR)
- Material quality connection 2: Dezincification resistant brass (DZR)
- Max. operating pressure at 20 °C: 16 bar
- Bend angle: 90 °
- Shape: Elbow (fitting)
- Surface protection connection 1: Untreated
- Surface protection connection 2: Untreated
- Max. medium temperature (continuous): 100 °C
- Colour: Yellow
