Straight Coupling in V.G. A 903, a-collection

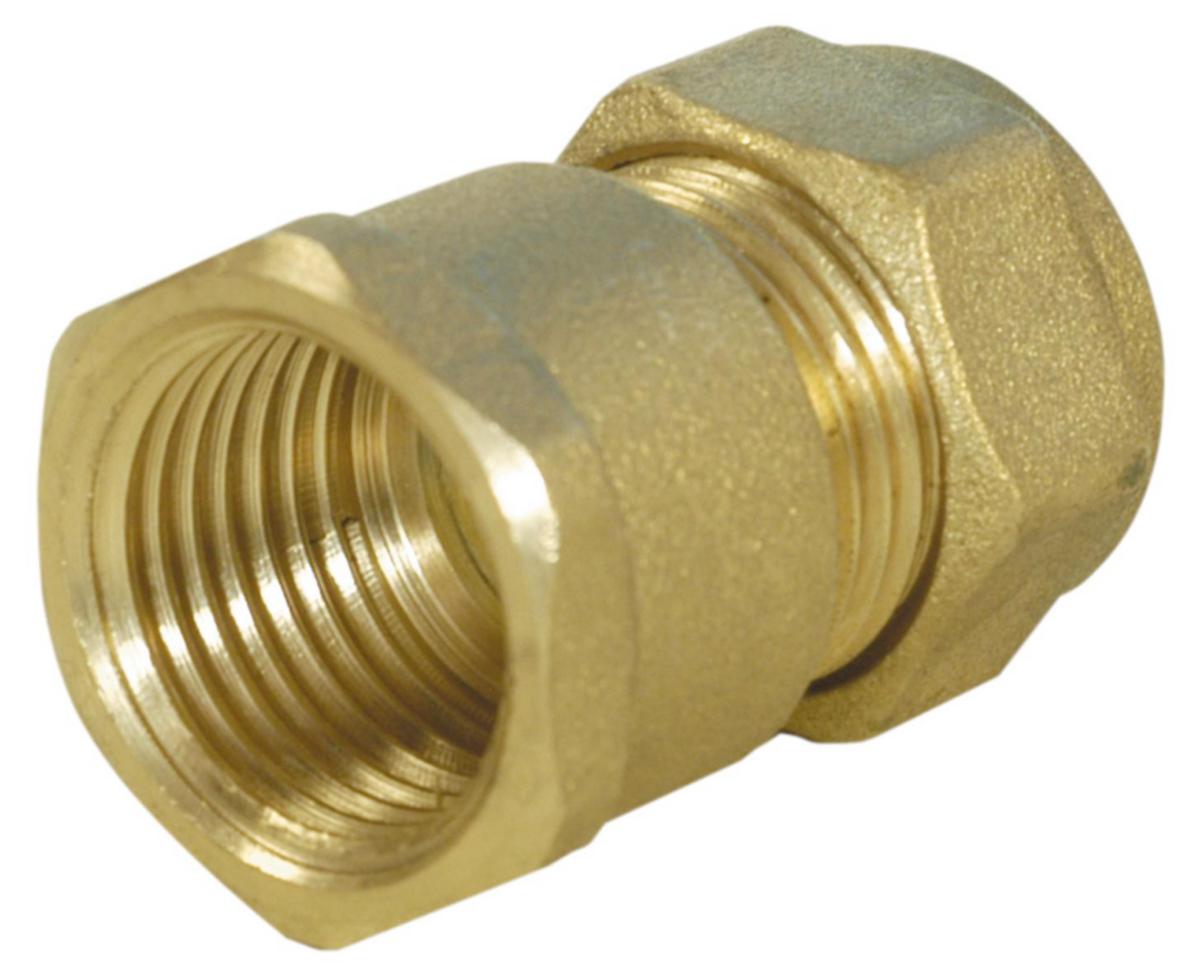

10xR10 COMPRESSION FITTING CU x FEMALE, STRAIGHT A-COLL.
Article number: Suppl. article no:
1926135
P903DR.05
to see price and stock
For more information, please read our brochure order no. BRR7705
For copper and PEX pipes. A support socket must be used on soft and semi-hard copper pipes and PEX pipes. G=cylindrical pipe thread.
Type-approved: Swedish certified 0164
Smooth end x internal thread.
For copper and PEX pipes. A support socket must be used on soft and semi-hard copper pipes and PEX pipes. G=cylindrical pipe thread.
Type-approved: Swedish certified 0164
Smooth end x internal thread.
- Article number: 1926135
- Suppl. article no: P903DR.05
- Material class PAD01B
Technical data
- Packagin Size: 1 ST/20 ST
- Outer pipe diameter connection 1: 10 mm
- Connection 1: Compression ring
- Connection 2: Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)
- Nominal diameter connection 2: 3/8 inch (10)
- Material connection 1: Brass
- Material connection 2: Brass
- Material quality connection 1: Dezincification resistant brass (DZR)
- Material quality connection 2: Dezincification resistant brass (DZR)
- Max. operating pressure at 20 °C: 16 bar
- Max. medium temperature (continuous): 100 °C
