Vatette

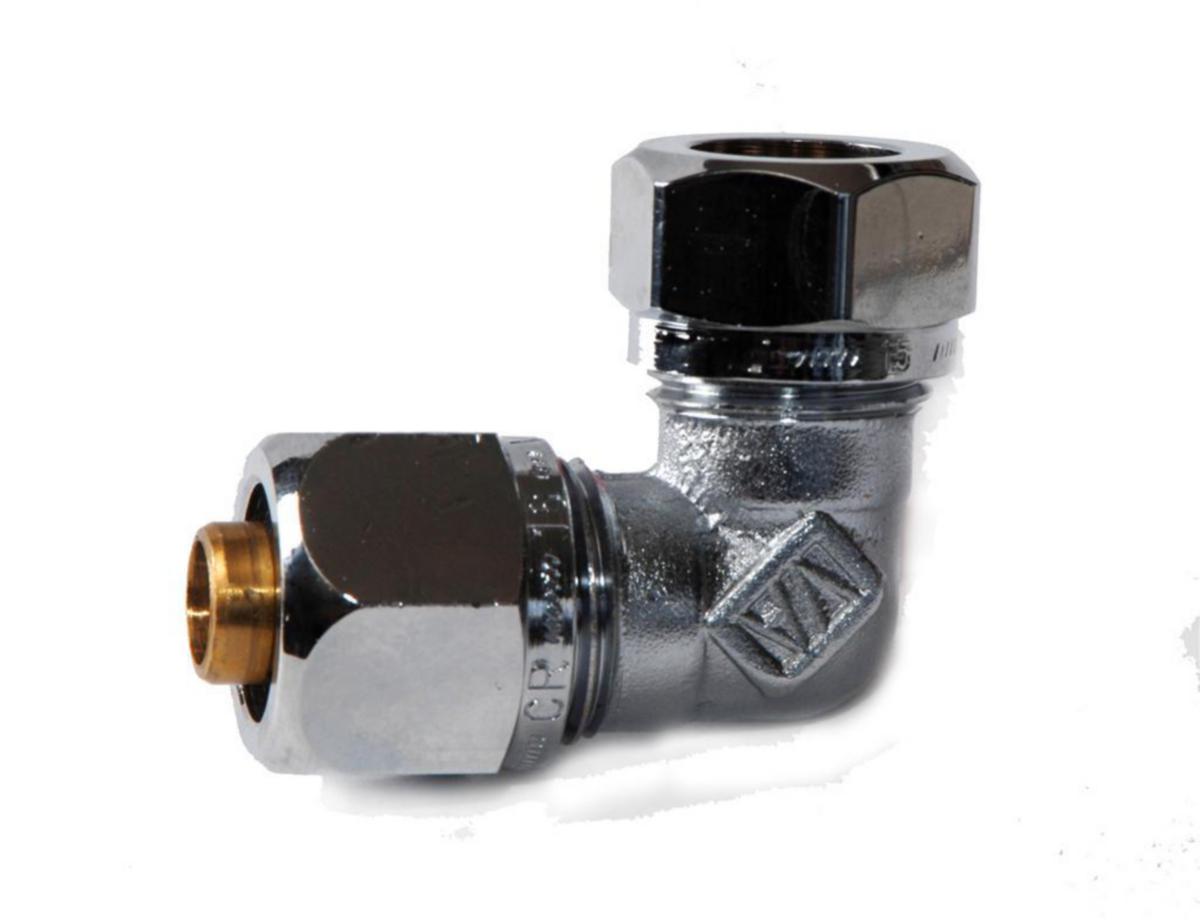

Chrome-plated angle, plastic to copper, Vatette
16xCU15 VATETTE PLASTIC 2139 CROME, TRANSITION ELBOW
Article number: Suppl. article no:
1873825
FG044060520
to see price and stock
For transitions from PEX, Alu-PEX, PEM or PB pipes to copper pipes.
- Article number: 1873825
- Suppl. article no: FG044060520
- Ean no: 7393792009591
- Material class PAD11B
Technical data
- Packagin Size: 1 ST/10 ST
- Outer pipe diameter connection 1: 16 mm
- Outer pipe diameter connection 2: 15 mm
- Connection 1: Compression ring
- Connection 2: Compression ring
- Material connection 1: Brass
- Material connection 2: Brass
- Material quality connection 1: Dezincification resistant brass (DZR)
- Material quality connection 2: Dezincification resistant brass (DZR)
- Max. operating pressure at 20 °C: 16 bar
- Bend angle: 90 °
- Shape: Elbow (fitting)
- Surface protection connection 1: Chromium-plated
- Surface protection connection 2: Chromium-plated
- Medium temperature (continuous): -50-120 °C
- REACH Date: 2022-05-20
- REACH contains candidate substances: Bly
- Colour: Chrome-plated
- REACH Information obligation: Yes
