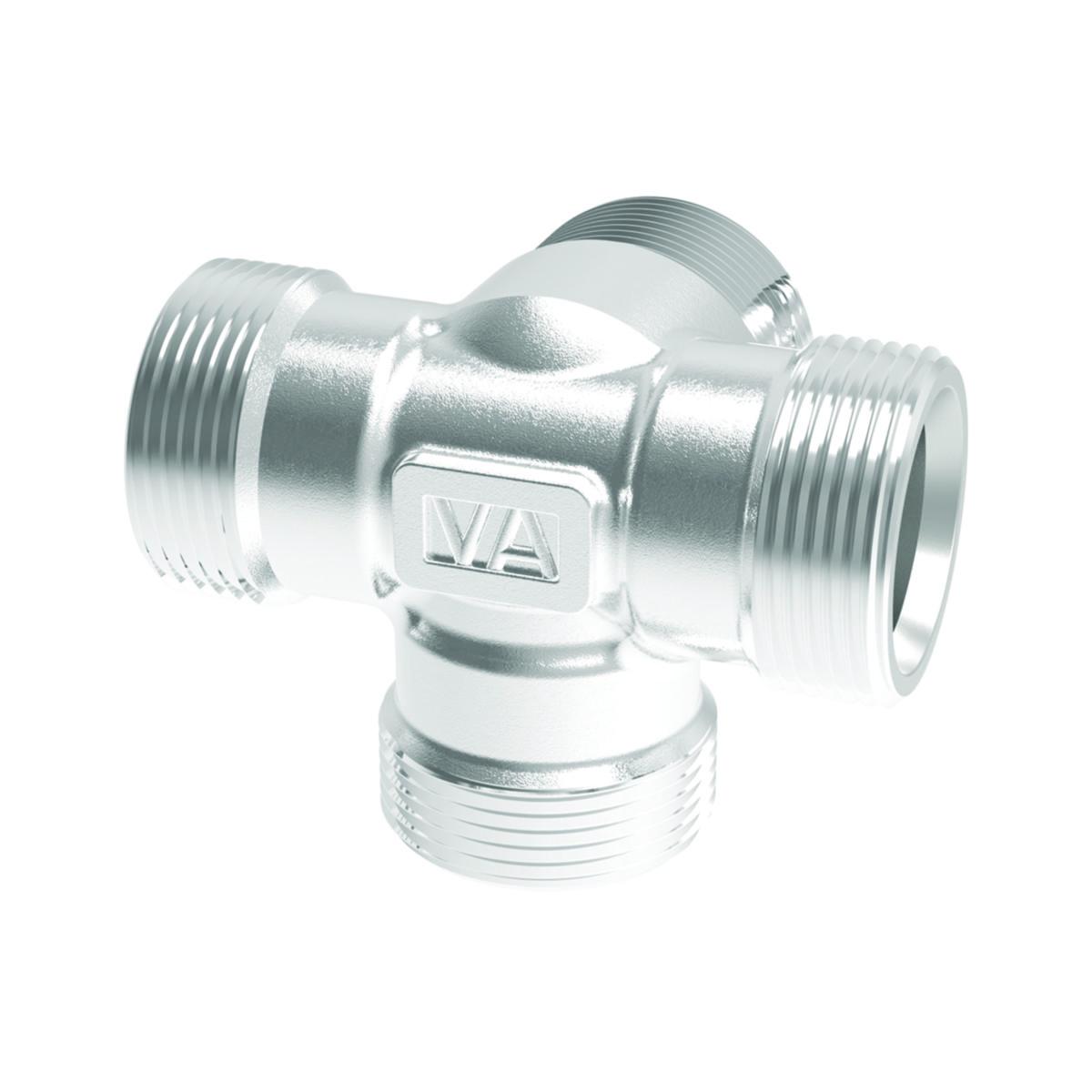

T-angle pipe V6 chrome, Vatette
VATETTE FITTINGV6 T-CORNER Cr4XØ15 (G1 / 2)
Article number: Suppl. article no:
1970174
FG039055420
to see price and stock
Provides the ability to build an angled wall distributor in several rows, with extra connection
Use products marked V6 and get 60 cc automatically
With four Vatette ends Dy15.
Use products marked V6 and get 60 cc automatically
With four Vatette ends Dy15.
- Article number: 1970174
- Suppl. article no: FG039055420
- Ean no: 7393792106689
- Material class PAD10B
Technical data
- Packagin Size: 1 ST/5 ST
- Connection 1: External thread cylindrical BSPP-G (ISO 228-1)
- Connection 2: External thread cylindrical BSPP-G (ISO 228-1)
- Connection 3: External thread cylindrical BSPP-G (ISO 228-1)
- Connection 4: External thread cylindrical BSPP-G (ISO 228-1)
- Outer pipe diameter connection 1: 15 mm
- Outer pipe diameter connection 2: 15 mm
- Outer pipe diameter connection 3: 15 mm
- Outer pipe diameter connection 4: 15 mm
- Nominal diameter connection 1: 1/2 inch (15)
- Nominal diameter connection 2: 1/2 inch (15)
- Nominal diameter connection 3: 1/2 inch (15)
- Nominal diameter connection 4: 1/2 inch (15)
- Material: Brass
- Material quality: Dezincification resistant brass (DZR)
- Max. operating pressure at 20 °C: 16 bar
- With buffer stud: Yes
- Model: T piece with side piece
- Surface treatment: Untreated
- Surface protection: Chromium-plated
- Max. medium temperature (continuous): 120 °C
- REACH Date: 2022-05-20
- REACH contains candidate substances: Bly
- Min. medium temperature (continuous): -50 °C
- REACH Information obligation: Yes
