AhlsellProductsHeating and SanitationInstallation pipes and partsCompression ring couplingsCompression ring couplings chrome-plated, Vatette
Vatette

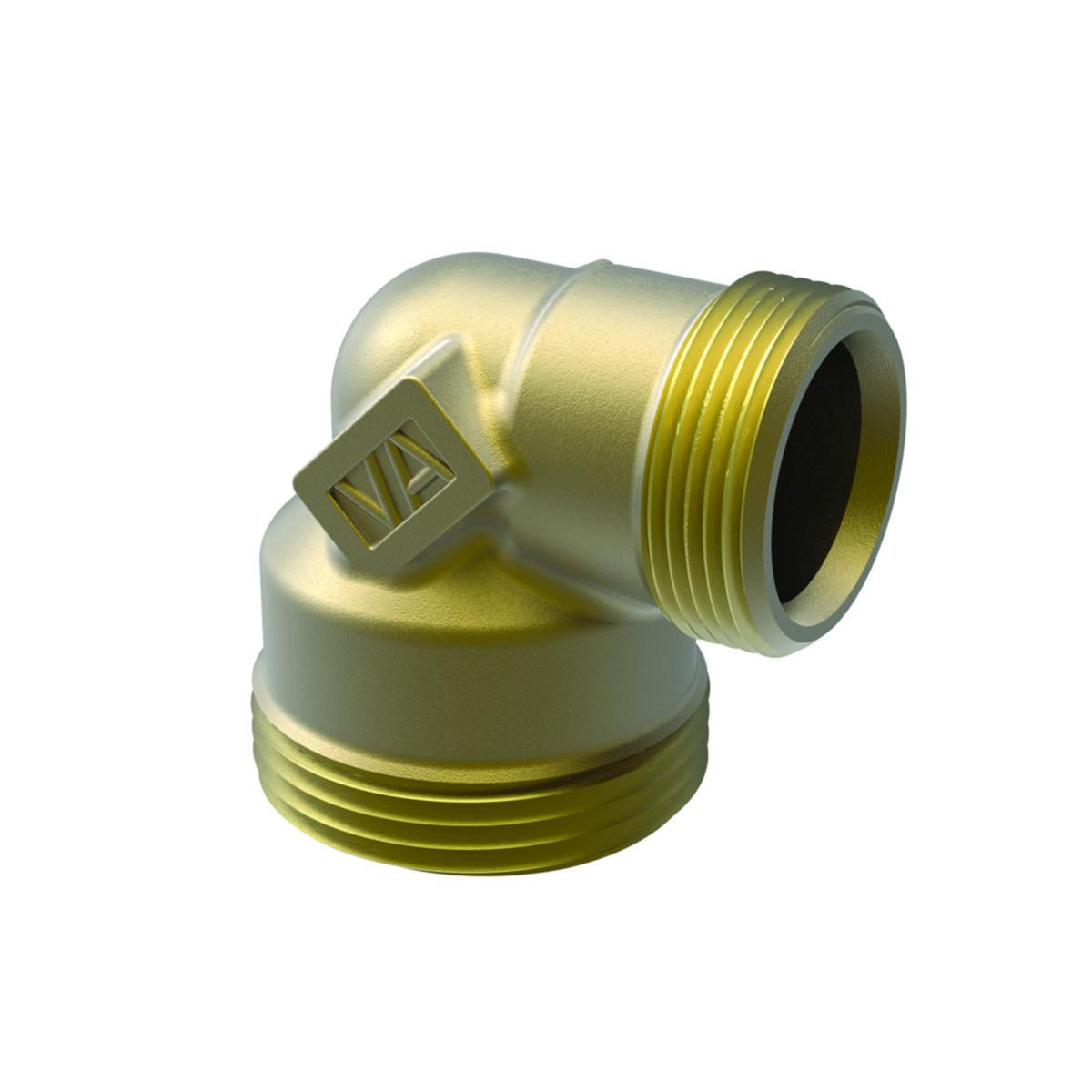

Angle screw part V6 reduced yellow, Vatette
VATETTE FITTINGV6 ELBOW Ø22XØ15
Article number: Suppl. article no:
1970168
FG0603435
to see price and stock
Dy20 supply to wall distributor
Use products marked V6 and get 60 cc automatically
With Vatette ends Dy22x15
Use products marked V6 and get 60 cc automatically
With Vatette ends Dy22x15
- Article number: 1970168
- Suppl. article no: FG0603435
- Ean no: 7393792106726
- Material class PAD10B
Technical data
- Packagin Size: 1 ST/10 ST/25 ST/5500 ST
- Connection 1: External thread metric
- Connection 2: External thread cylindrical BSPP-G (ISO 228-1)
- Nominal diameter connection 1: M28 x 1.5
- Nominal diameter connection 2: 1/2 inch (15)
- Material connection 1: Brass
- Material connection 2: Brass
- Material quality connection 1: Dezincification resistant brass (DZR)
- Material quality connection 2: Dezincification resistant brass (DZR)
- Max. operating pressure at 20 °C: 16 bar
- Bend angle: 90 °
- Shape: Elbow (fitting)
- With buffer stud: Yes
- Surface treatment connection 1: Untreated
- Surface treatment connection 2: Untreated
- Surface protection connection 1: Untreated
- Surface protection connection 2: Untreated
- Medium temperature (continuous): -50-120 °C
- REACH Date: 2022-05-20
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
