Vatette

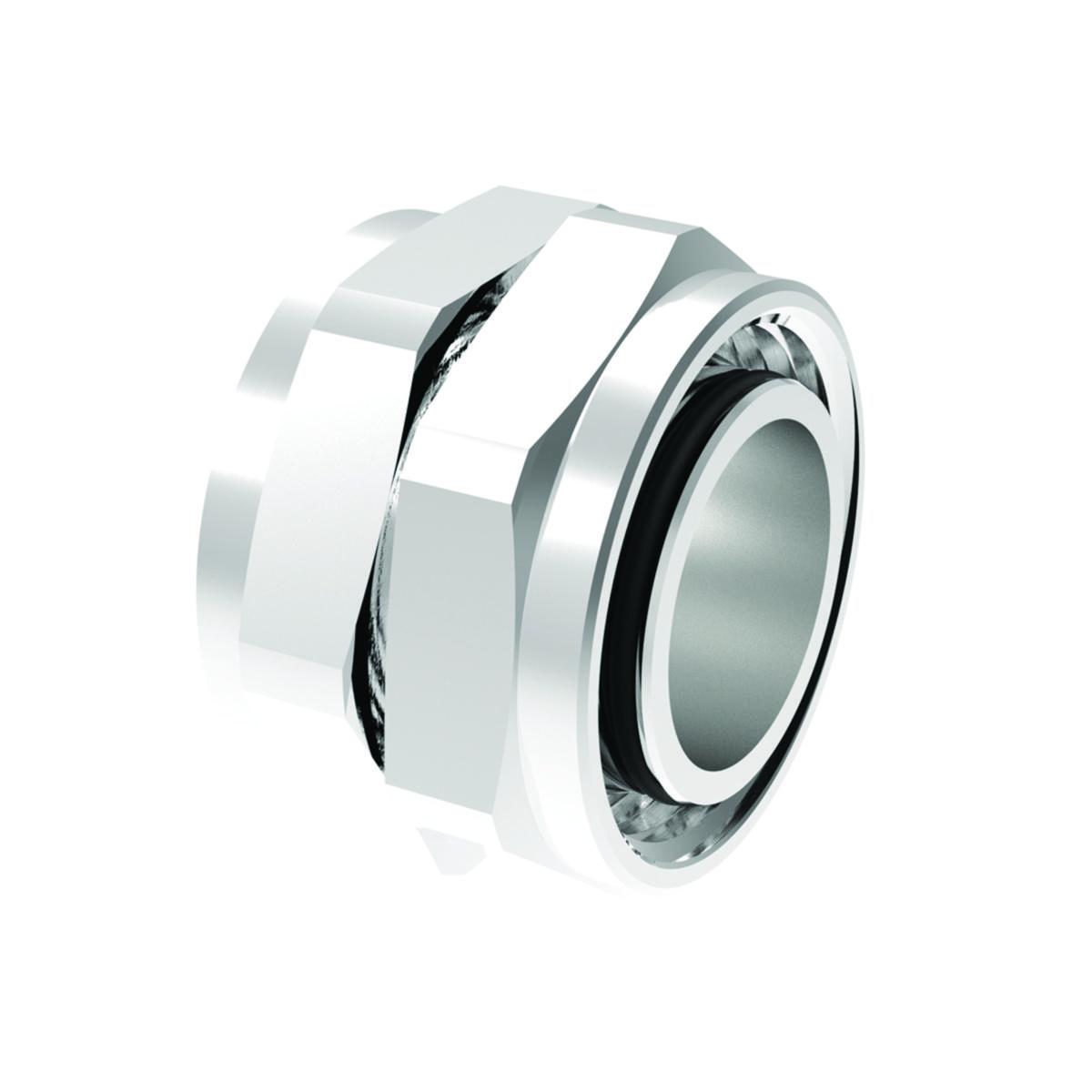

Double nut V6 chrome, Vatette
VATETTE DUBBLE NUTV6 Cr CONNECTION OF 2 VATETTE Ø22
Article number: Suppl. article no:
1965613
FG0398069
to see price and stock
For connection to Vatette-end Dy22
Easily assembles Vatette manifolds, couplings and ball valves
Use products marked V6 and get 60 cc automatically
Easily assembles Vatette manifolds, couplings and ball valves
Use products marked V6 and get 60 cc automatically
- Article number: 1965613
- Suppl. article no: FG0398069
- Ean no: 7393792106191
- Material class PAP10B
Technical data
- Packagin Size: 1 ST/50 ST/2750 ST/11000 ST
- Outer pipe diameter connection 1: 22 mm
- Outer pipe diameter connection 2: 22 mm
- Connection 1: Internal thread metric
- Connection 2: Internal thread metric
- Material quality connection 1: Dezincification resistant brass (DZR)
- Material quality connection 2: Dezincification resistant brass (DZR)
- Shape: Straight
- Medium temperature (continuous): 0-120 °C
- Max. operating pressure at 20 °C: 16 bar
- Surface protection connection 1: Chromium-plated
- Surface protection connection 2: Chromium-plated
- Surface treatment connection 1: Untreated
- Surface treatment connection 2: Untreated
- Material connection 1: Brass
- Material connection 2: Brass
- Wrench width union nut: 32 mm
- REACH contains candidate substances: Bly
- REACH Date: 2022-05-20
- REACH Information obligation: Yes
