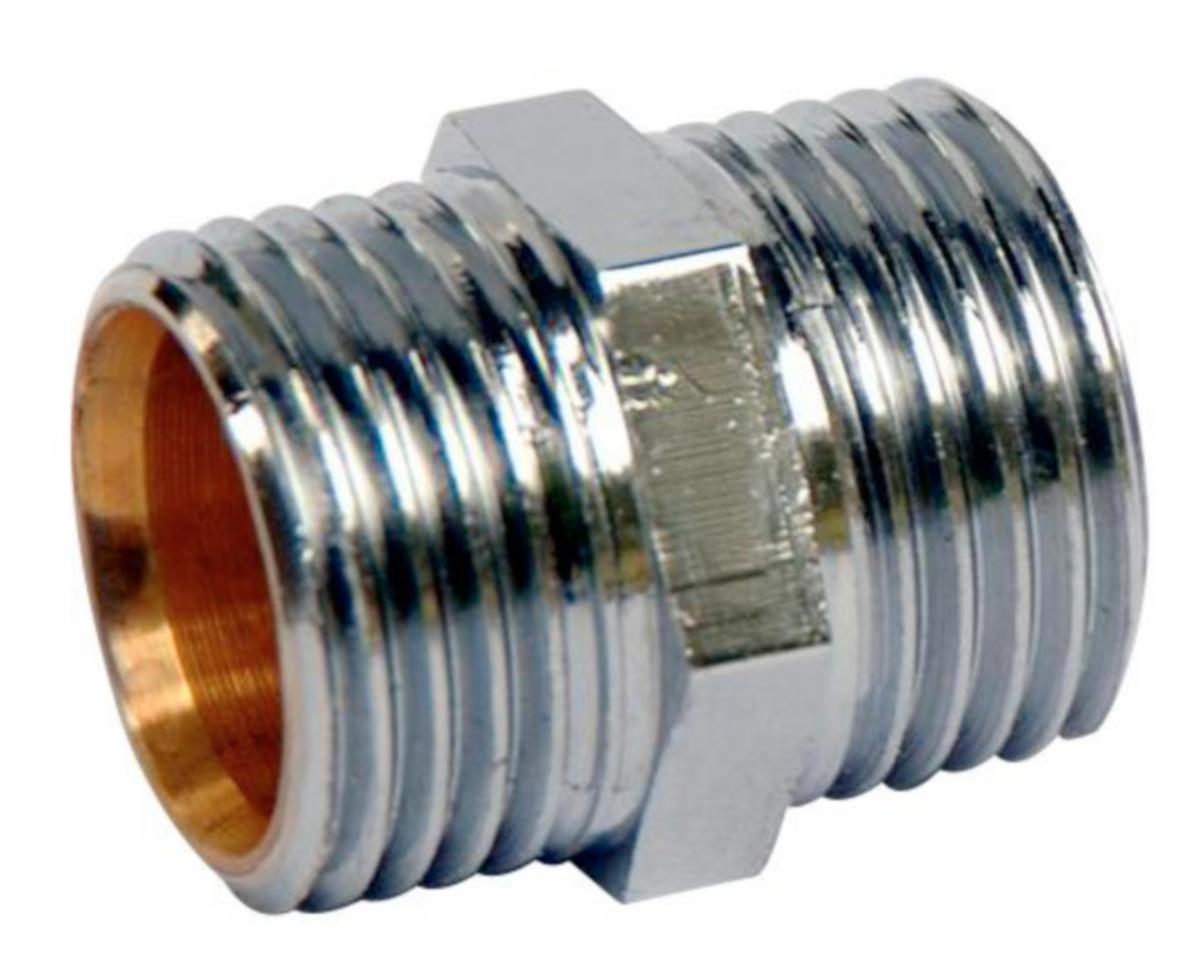

Straight screw part VA 1130, chrome-plated, Vatette

12 VATETTE SCREW PART STRAIGHT CROME, G10 MALE VA1130
Article number:
1947712
Suppl. article no:
FG060346220





 to see price and stock
Säker vatteninstallationDenna produkt innehåller ett eller flera ämnen på kandidatförteckningen.
For copper, steel and PEX pipes. Support sockets must be used for soft and semi-hard copper and steel pipes and PEX pipes. G=cylindrical pipe thread. External thread, chromed
  • Article number:
    1947712
  • Suppl. article no:
    FG060346220
  • Ean no:
    7393792009119
  • Material class
    PAD10B
Technical data
  • Packagin Size: 1 ST/10 ST
  • Outer pipe diameter connection 1: 10 mm
  • Outer pipe diameter connection 2: 10 mm
  • Connection 1: External thread cylindrical BSPP-G (ISO 228-1)
  • Connection 2: External thread cylindrical BSPP-G (ISO 228-1)
  • Nominal diameter connection 1: 3/8 inch (10)
  • Nominal diameter connection 2: 3/8 inch (10)
  • Material connection 1: Brass
  • Material connection 2: Brass
  • Material quality connection 1: Dezincification resistant brass (DZR)
  • Material quality connection 2: Dezincification resistant brass (DZR)
  • Max. operating pressure at 20 °C: 16 bar
  • Shape: Straight
  • Wrench width union nut: 20 mm
  • Surface treatment connection 1: Untreated
  • Surface treatment connection 2: Untreated
  • Surface protection connection 1: Chromium-plated
  • Surface protection connection 2: Chromium-plated
  • Medium temperature (continuous): -50-120 °C
  • REACH Date: 2022-05-20
  • REACH contains candidate substances: Bly
  • REACH Information obligation: Yes
