Vatette

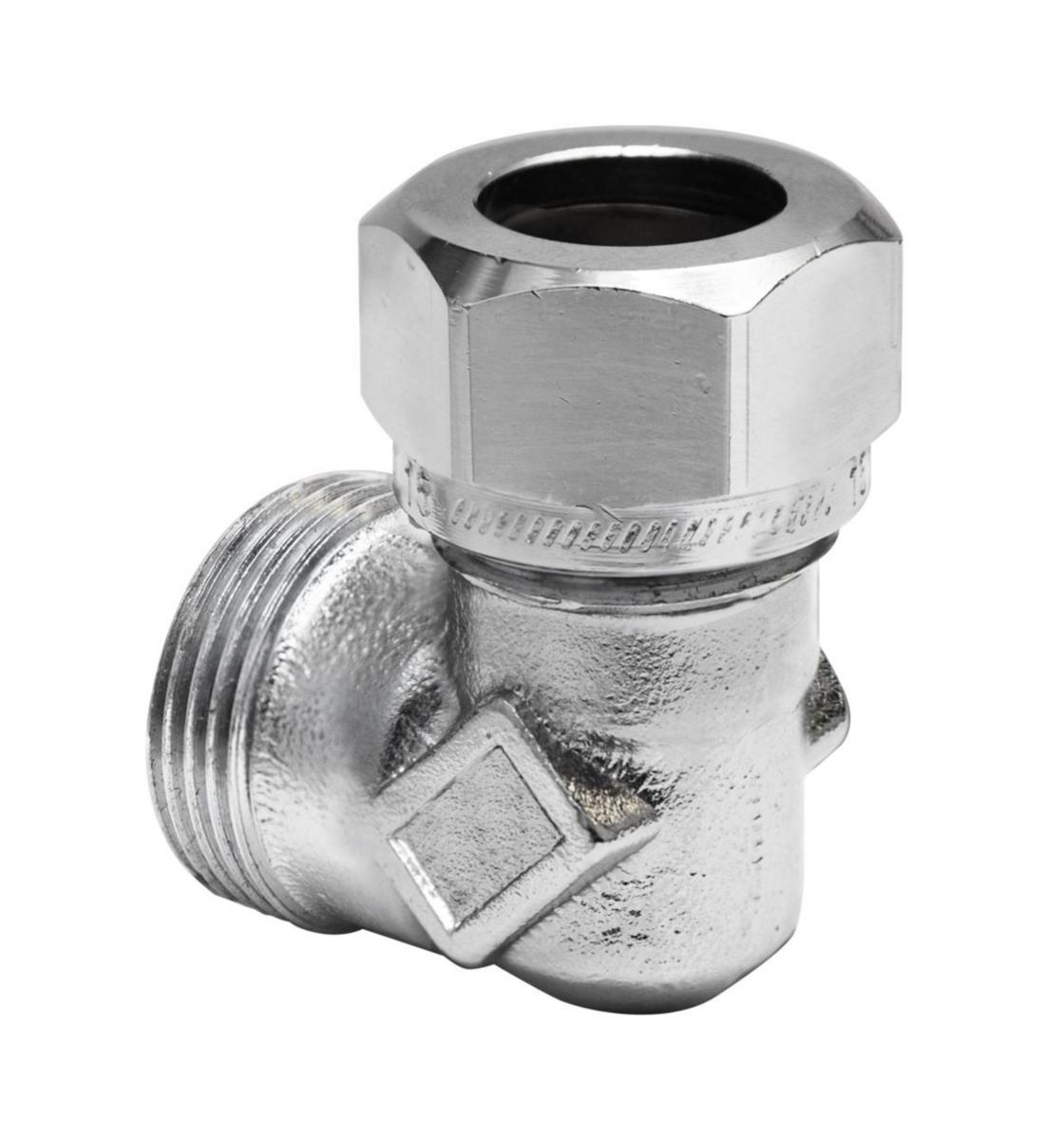

Angle coupling 18x15mm for bathroom distributor, Vatette
VA ANGLE COUPLING 18XM24X1/2 VA 1145 BATHROOM DITRIBUTOR
Article number: Suppl. article no:
1947523
FG0398271
to see price and stock
- Article number: 1947523
- Suppl. article no: FG0398271
- Ean no: 7393792104005
- Material class PAP10B
Technical data
- Packagin Size: 1 ST/5 ST
- Outer pipe diameter connection 1: 18 mm
- Outer pipe diameter connection 2: 15 mm
- Connection 1: External thread metric
- Connection 2: Compression ring
- Nominal diameter connection 1: M24 x 1.5
- Nominal diameter connection 2: DN 15
- Material connection 1: Brass
- Material connection 2: Brass
- Material quality connection 1: Dezincification resistant brass (DZR)
- Material quality connection 2: Dezincification resistant brass (DZR)
- Max. operating pressure at 20 °C: 16 bar
- Bend angle: 90 °
- Shape: Elbow (fitting)
- Surface treatment connection 1: Untreated
- Surface treatment connection 2: Untreated
- Surface protection connection 1: Chromium-plated
- Surface protection connection 2: Chromium-plated
- Medium temperature (continuous): -50-150 °C
- Max. medium temperature (continuous): 100 °C
- Colour: Chrome-plated
