Vatette

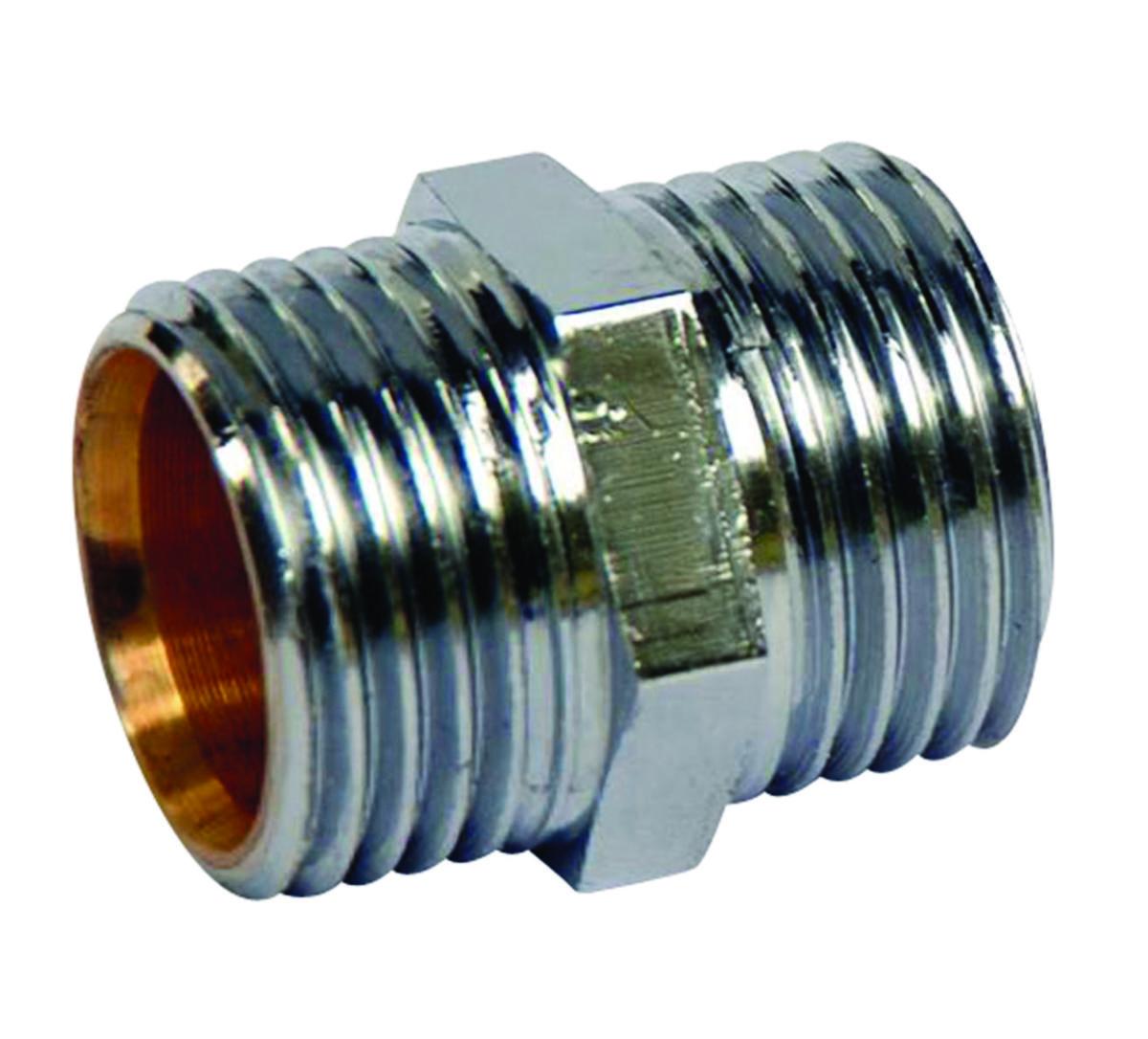

Straight screw part VA 1136, chrome-plated, Vatette
15XG10 VATETTE SCREW PART MALE CROME,STRAIGHT FLAT END VA1136
Article number: Suppl. article no:
1947168
FG060348620
to see price and stock
External thread x external thread.
- Article number: 1947168
- Suppl. article no: FG060348620
- Ean no: 7393792102681
- Material class PAD10B
Technical data
- Packagin Size: 1 ST/10 ST
- Outer pipe diameter connection 1: 15 mm
- Outer pipe diameter connection 2: 10 mm
- Connection 1: External thread cylindrical BSPP-G (ISO 228-1)
- Connection 2: External thread cylindrical BSPP-G (ISO 228-1)
- Nominal diameter connection 1: 1/2 inch (15)
- Nominal diameter connection 2: 3/8 inch (10)
- Material connection 1: Brass
- Material connection 2: Brass
- Material quality connection 1: Dezincification resistant brass (DZR)
- Material quality connection 2: Dezincification resistant brass (DZR)
- Max. operating pressure at 20 °C: 16 bar
- Shape: Straight
- Surface treatment connection 1: Untreated
- Surface treatment connection 2: Untreated
- Surface protection connection 1: Chromium-plated
- Surface protection connection 2: Chromium-plated
- Medium temperature (continuous): -50-120 °C
- REACH Date: 2022-05-20
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
