Vatette

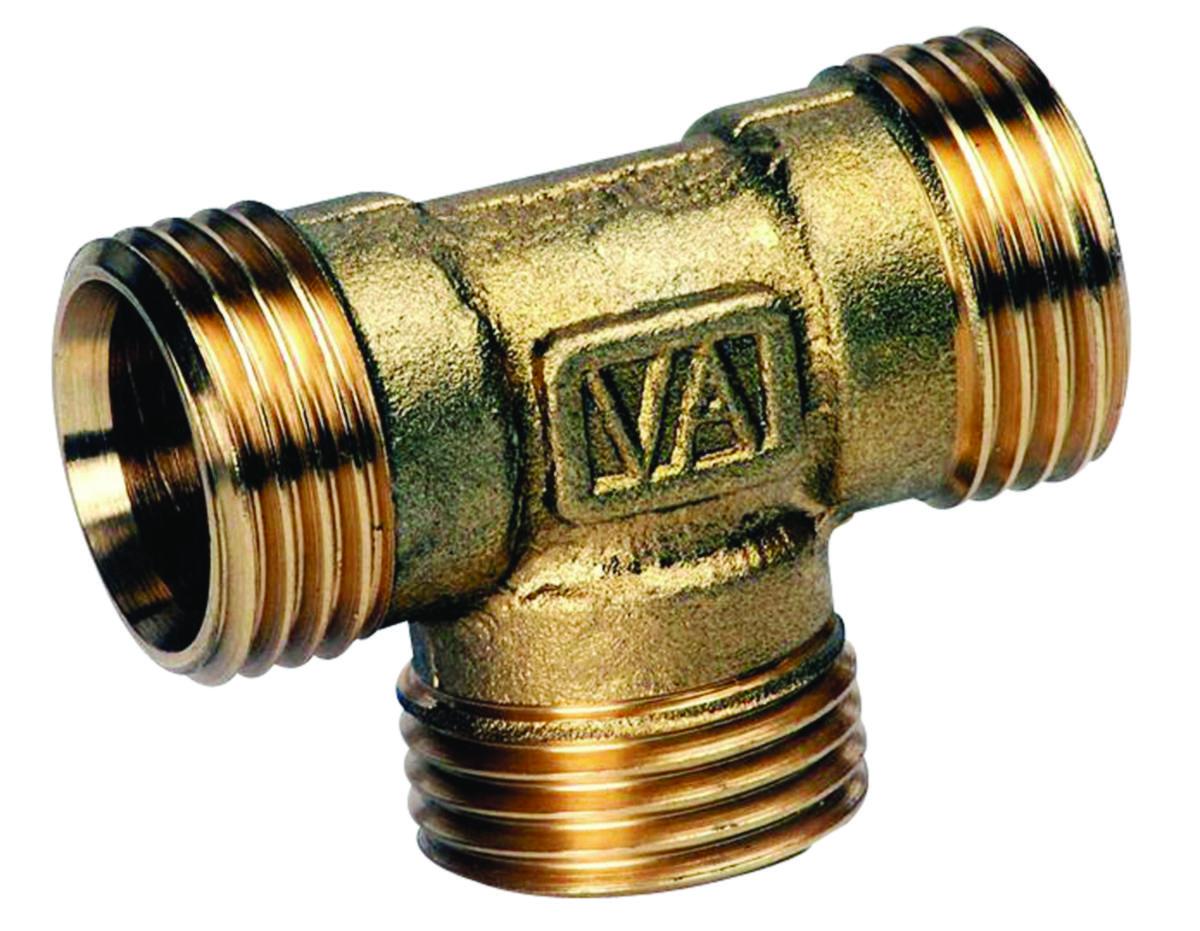

T-pipe screw part Vatette
15 VATETTE SCREW PART T-PIPE G15 MALE VA
Article number: Suppl. article no:
1944123
FG0603638
to see price and stock
Sizes for 1, 2 and 3 are the same. Smooth ends.
- Article number: 1944123
- Suppl. article no: FG0603638
- Ean no: 7393792009072
- Material class PAD10B
Technical data
- Packagin Size: 10 ST
- Connection 1: External thread cylindrical BSPP-G (ISO 228-1)
- Connection 2: External thread cylindrical BSPP-G (ISO 228-1)
- Connection 3: External thread cylindrical BSPP-G (ISO 228-1)
- Nominal diameter connection 2: 1/2 inch (15)
- Outer pipe diameter connection 1: 15 mm
- Outer pipe diameter connection 2: 15 mm
- Outer pipe diameter connection 3: 15 mm
- Multi-part: Yes
- Material connection 1: Brass
- Material connection 2: Brass
- Material connection 3: Brass
- Material quality connection 1: Dezincification resistant brass (DZR)
- Material quality connection 2: Dezincification resistant brass (DZR)
- Material quality connection 3: CuZn39Pb2 (CW612N)
- Max. operating pressure at 20 °C: 16 bar
- Model: T-piece
- Nominal diameter connection 1: 1/2 inch (15)
- Surface treatment connection 1: Untreated
- Surface treatment connection 2: Untreated
- Surface treatment connection 3: Untreated
- Surface protection connection 1: Untreated
- Surface protection connection 2: Untreated
- Surface protection connection 3: Untreated
- Nominal diameter connection 3: 1/2 inch (15)
- Max. medium temperature (continuous): 120 °C
- Min. medium temperature (continuous): -50 °C
