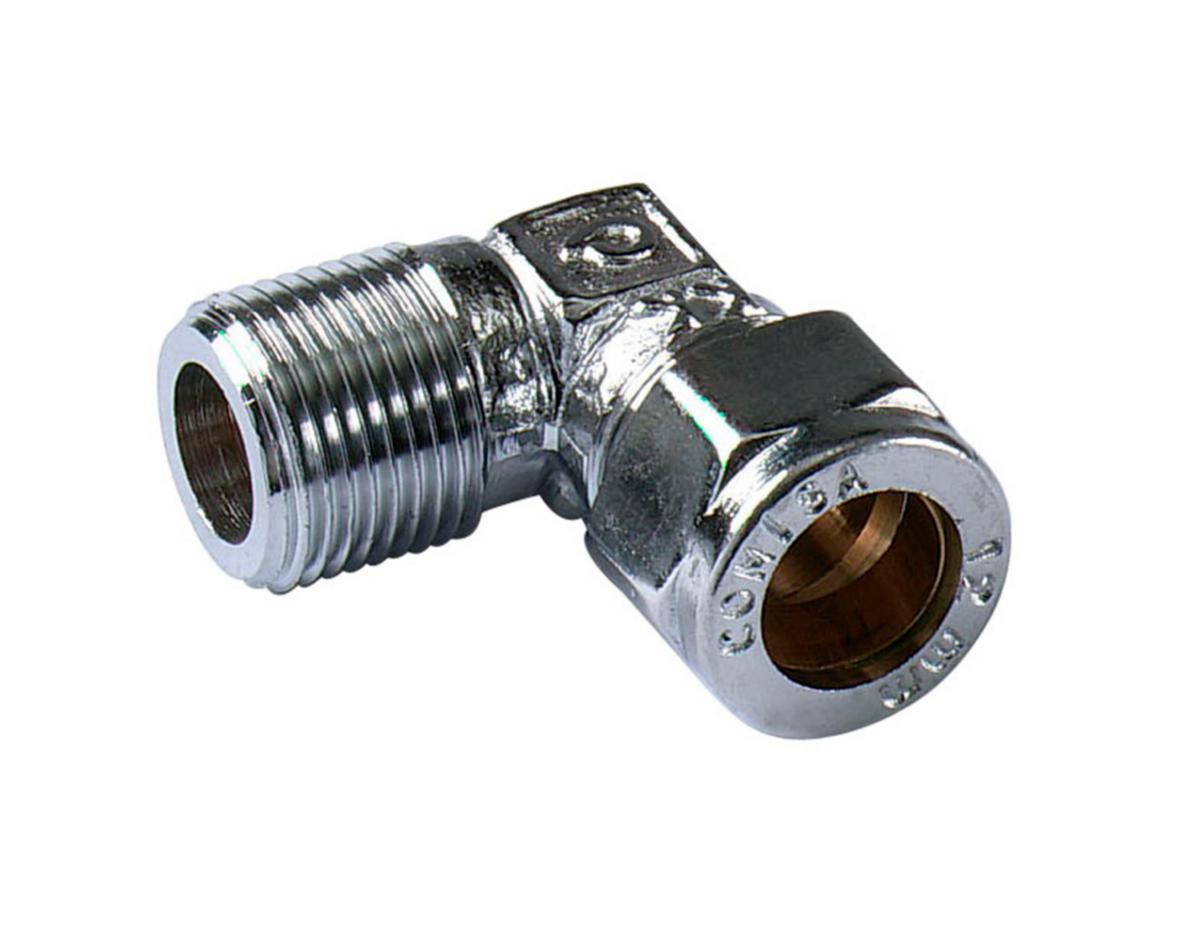

Angle coupling 90°, A 802, chrome-plated, a-collection
12xR15 COMPRESSION FITTING CU x MALE,CROME ELBOW A-COLL.
Article number: Suppl. article no:
1926239
A43.32
to see price and stock
For copper and PEX pipes. For certain soft, thin-walled copper and PEX pipes, support sockets must be used. G=cylindrical pipe thread. Smooth end x external thread.
Type-approved: Swedish certified 0164.
Type-approved: Swedish certified 0164.
- Article number: 1926239
- Suppl. article no: A43.32
- Material class PAD01B
- This is an alternative to item 1854246
Technical data
- Packagin Size: 1 ST/10 ST
- Outer pipe diameter connection 1: 12 mm
- Connection 1: Compression ring
- Connection 2: External thread conical BSPT-R (ISO 7-1 / EN 10226-1)
- Nominal diameter connection 2: 1/2 inch (15)
- Material connection 1: Brass
- Material connection 2: Brass
- Material quality connection 1: Dezincification resistant brass (DZR)
- Material quality connection 2: Dezincification resistant brass (DZR)
- Max. operating pressure at 20 °C: 16 bar
- Bend angle: 90 °
- Shape: Elbow (fitting)
- Surface protection connection 1: Chromium-plated
- Surface protection connection 2: Chromium-plated
- Max. medium temperature (continuous): 100 °C
- Colour: Chrome-plated
