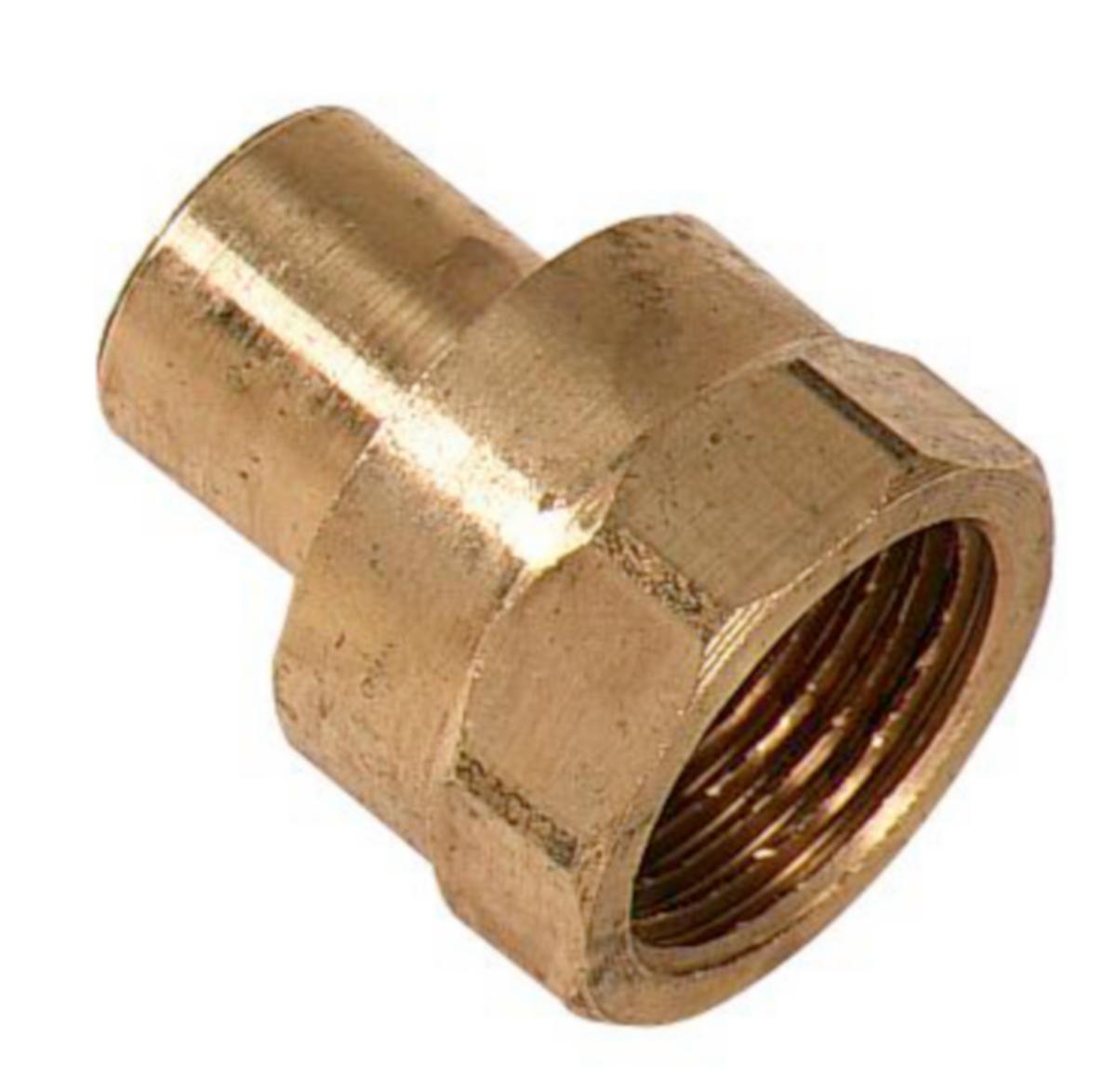

Capillary Transition Sleeve for Soldering, External Soldering x Internal Thread

35XR25 CAPILLARY-NIPPLE INS SOLD. MALE THR
Article number:
2002801





 to see price and stock
Straight coupling
  • Article number:
    2002801
  • Ean no:
    7333123058188
  • Material class
    PAC11B
Technical data
  • Packagin Size: 1 ST/100 ST/6400 ST
  • Connection 1: Slide end
  • Connection 2: Internal thread cylindrical BSPP-G (ISO 228-1)
  • Outer pipe diameter connection 1: 35 mm
  • Nominal diameter connection 2: 1 inch (25)
  • Material connection 1: Brass
  • Material connection 2: Brass
  • Max. operating pressure at 20 °C: 16 bar
  • Shape: Straight
  • Max. medium temperature (continuous): 110 °C
