ACO
Bend AISI 316

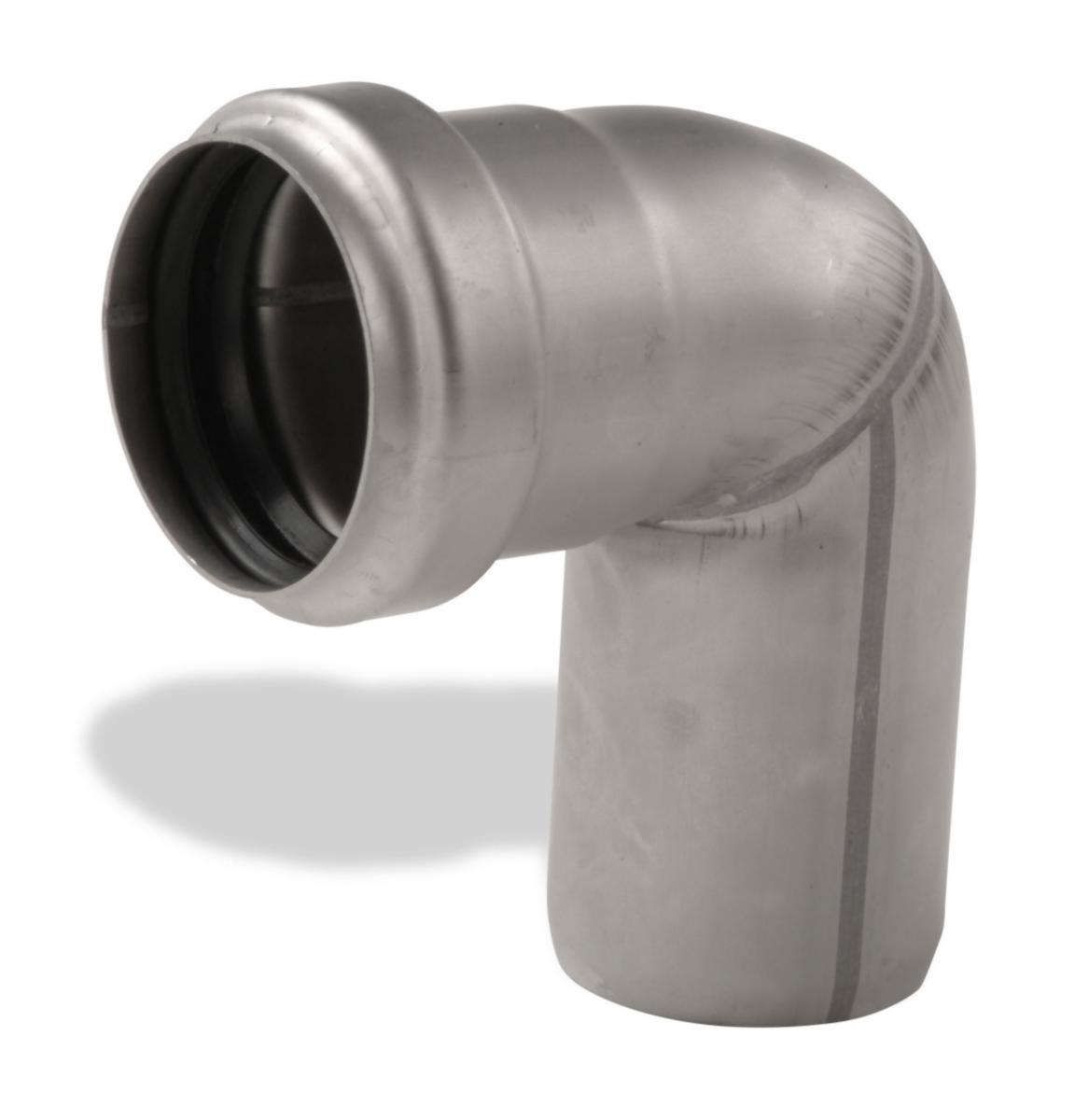

ELBOW 50/87.5° 316L ACO PIPE
Article number: Suppl. article no:
1451117
98750
to see price and stock
EPDM seal.
- Article number: 1451117
- Suppl. article no: 98750
- Ean no: 8590830203136
- Replaces art.nbr: 1550285
- Material class PBS13A
Technical data
- Packagin Size: 1 ST/16 ST
- Outer pipe diameter connection 1: 50 mm
- Outer pipe diameter connection 2: 50 mm
- Nominal diameter connection 1: DN 50
- Nominal diameter connection 2: DN 50
- Material quality connection 1: Stainless steel 316 L (1.4404)
- Material quality connection 2: Stainless steel 316 L (1.4404)
- Material connection 1: Stainless steel
- Material connection 2: Stainless steel
- Material sealing: Ethylene-propylene diene monomer rubber (EPDM)
- Shape: Bend
- Bend angle: 87.5 °
- Connection 1: Slide end
- Connection 2: Slide sleeve
- Wall thickness, connection 1: 1 mm
- Wall thickness, connection 2: 1 mm
- Max. operating pressure at 20 °C: 2 bar
- Model: 1-part
- Surface treatment connection 1: Other
- Surface treatment connection 2: Other
- Surface protection connection 1: Other
- Surface protection connection 2: Other
- Medium temperature (continuous): -50-130 °C
