ACO

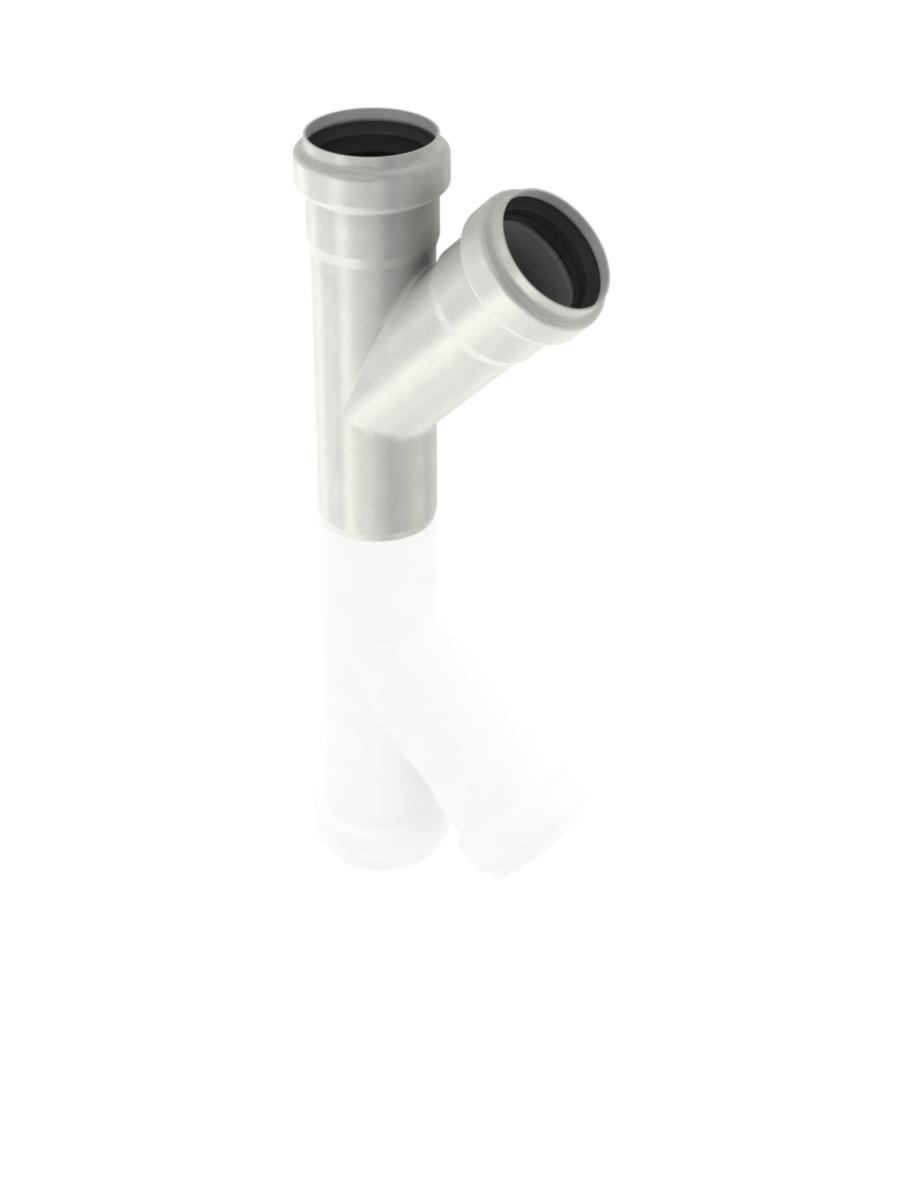

Branch pipe 45° AISI 304
BRANCH PIPE 50/45° 304L ACO PIPE
Article number: Suppl. article no:
1450829
98748
to see price and stock
- Article number: 1450829
- Suppl. article no: 98748
- Ean no: 8590830203112
- Replaces art.nbr: 1550109
- Material class PBS11B
Technical data
- Packagin Size: 1 ST/24 ST
- Outer pipe diameter connection 1: 50 mm
- Outer pipe diameter connection 2: 50 mm
- Outer pipe diameter connection 3: 50 mm
- Nominal diameter connection 1: DN 50
- Nominal diameter connection 2: DN 50
- Nominal diameter connection 3: DN 50
- Connection 1: Slide sleeve
- Connection 2: Slide sleeve
- Connection 3: Slide end
- Angle: 45 °
- Medium temperature (continuous): -50-130 °C
- Material connection 1: Stainless steel
- Material connection 2: Stainless steel
- Material connection 3: Stainless steel
- Material sealing: Ethylene-propylene diene monomer rubber (EPDM)
- Material quality connection 1: Stainless steel 304 (1.4301)
- Material quality connection 2: Stainless steel 304 (1.4301)
- Material quality connection 3: Stainless steel 304 (1.4301)
- Reducing: No
