Gustavsberg

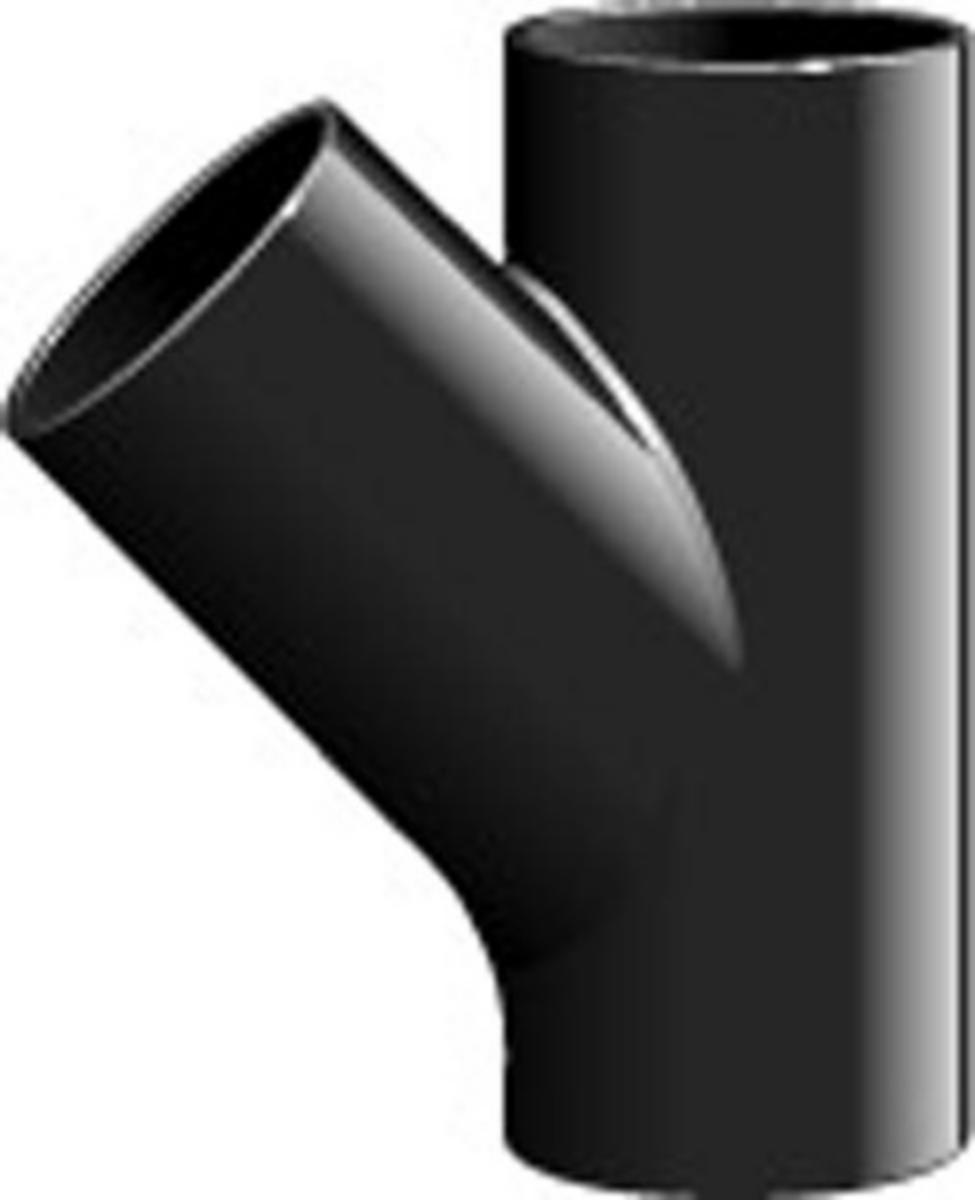

Branch pipe 45°, Gustavsberg MA
58x45° MA-BRANCH
Article number:
1193423
to see price and stock
MA manifold 45°.
- Article number: 1193423
- Ean no: 7331178110820
- Material class PBR11B
Technical data
- Packagin Size: 1 ST/500 ST
- Outer pipe diameter connection 1: 60 mm
- Outer pipe diameter connection 2: 60 mm
- Outer pipe diameter connection 3: 60 mm
- Nominal diameter connection 1: DN 50
- Nominal diameter connection 2: DN 50
- Nominal diameter connection 3: DN 50
- Connection 1: Slide end
- Connection 2: Slide end
- Connection 3: Slide end
- Wall thickness, connection 1: 5 mm
- Wall thickness, connection 2: 5 mm
- Wall thickness, connection 3: 5 mm
- FM quality mark: No
- Flange compression class: Other
- Multi-part: No
- LPCB quality mark: No
- Capped: No
- Material connection 3: Cast iron
- Material quality connection 3: Other
- Material quality connection 1: Other
- Material quality connection 2: Other
- Material connection 1: Cast iron
- Material connection 2: Cast iron
- With de-aerator: No
- With drain valve: No
- With buffer stud: No
- With sealing rings/gaskets: No
- Model: Y-piece
- Surface treatment connection 1: Blasted
- Surface treatment connection 2: Blasted
- Surface treatment connection 3: Blasted
- Surface protection connection 1: Coated
- Surface protection connection 2: Coated
- Surface protection connection 3: Coated
- Reducing: No
- Swept entry type (with inner radius): No
- System specific: Yes
- UL quality mark: No
- ULC quality mark: No
- Angle: 45 °
- Working length connection 3: 115 mm
- Ring stiffness class: Other
- REACH Date: 2021-06-17
- REACH Information obligation: No
