NIBE

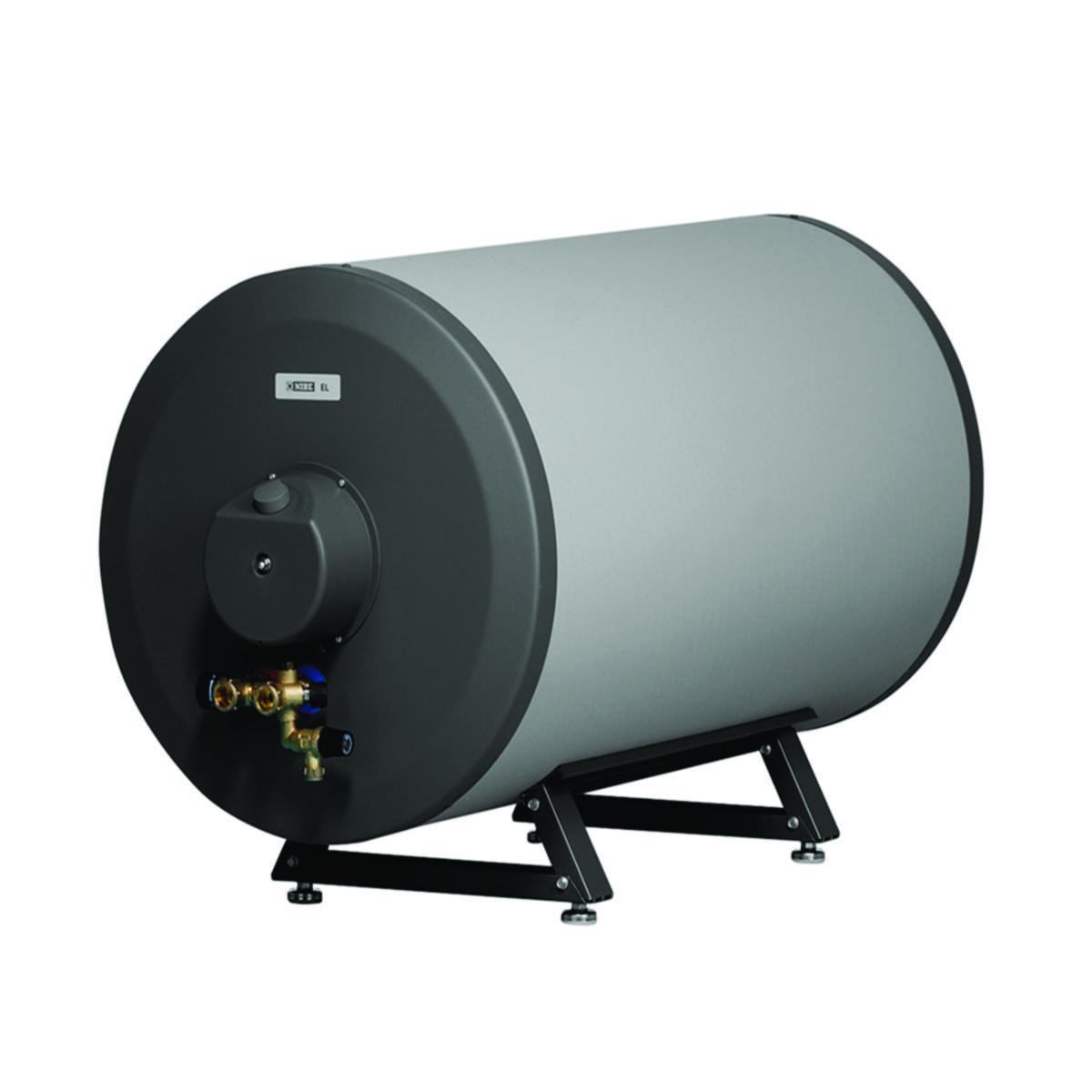

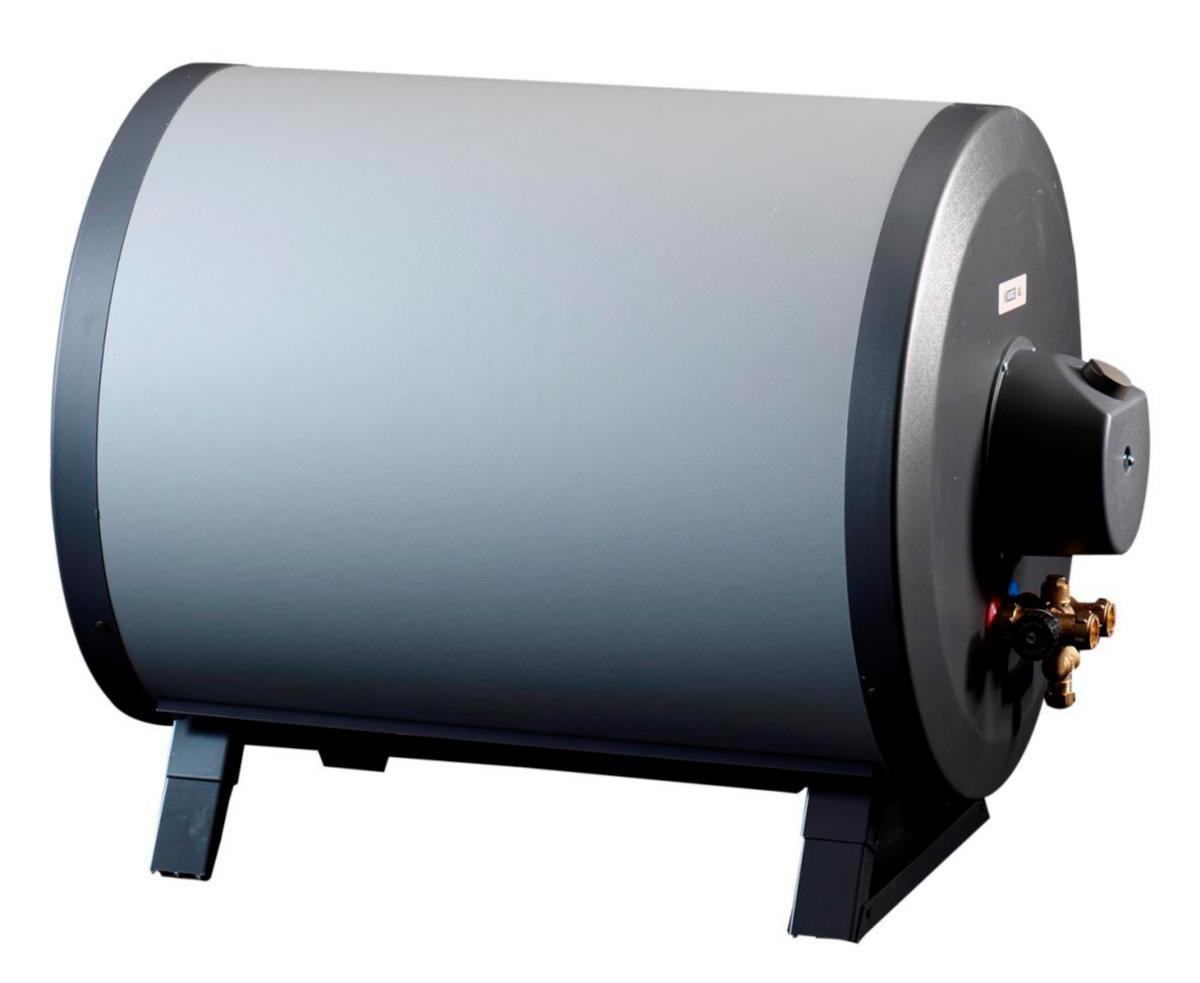

Electric water heater ELR, Nibe
EL 150 R 3KW, 400V, 3PHASE, HORIZONTAL
Article number: Suppl. article no:
6944807
074400
to see price and stock
For closed system. With immersion heater, overheating protection, thermostat and safety valve. For horizontal mounting
- Article number: 6944807
- Suppl. article no: 074400
- Ean no: 7331421322079
- Material class PFG110
Technical data
- Packagin Size: 1 ST/2 ST
- Tank volume: 150 l
- Connection voltage: 230-400 V
- Nominal power: 3 kW
- Diameter: 596 mm
- Height: 701 mm
- Width: 905 mm
- Outer pipe diameter hot tap water: 22 mm
- Outer pipe diameter cold tap water: 22 mm
- Material casing: Plastic
- Material boiler tank: Stainless steel
- Three-phase model: Yes
- Protective anode: No
- Cold tap water connection: Compression/soldered end
- Hot fill: No
- Hot tap water connection: Compression/soldered end
- Nominal diameter drain connection: 1/2 inch (15)
- Duo model: No
- ηwh (water heating energy efficiency): 38.1 %
- Frequency: 50 Hz
- Capacity profile: XL
- Degree of protection (IP): IP24
- With circulation connection: No
- With tap/mixer: Yes
- With off-peak electricity circuit: No
- With temperature indication: No
- With thermometer: No
- With pressure reducing valve: No
- With watercooler: No
- Horizontal positioning: Yes
- Vertical positioning: No
- With cleaning opening: No
- With temperature limit: Yes
- Heat-up time from 10 °C to 65 °C: 192 min
- Design form: Floor standing
- Plinth boiler: Yes
- Wall set-up: No
- Weight: 54 kg
- Energy efficiency class: C
- Suitable for boiling water: No
- Max. operating pressure: 10 bar
- Material: Stainless steel
