Purmo

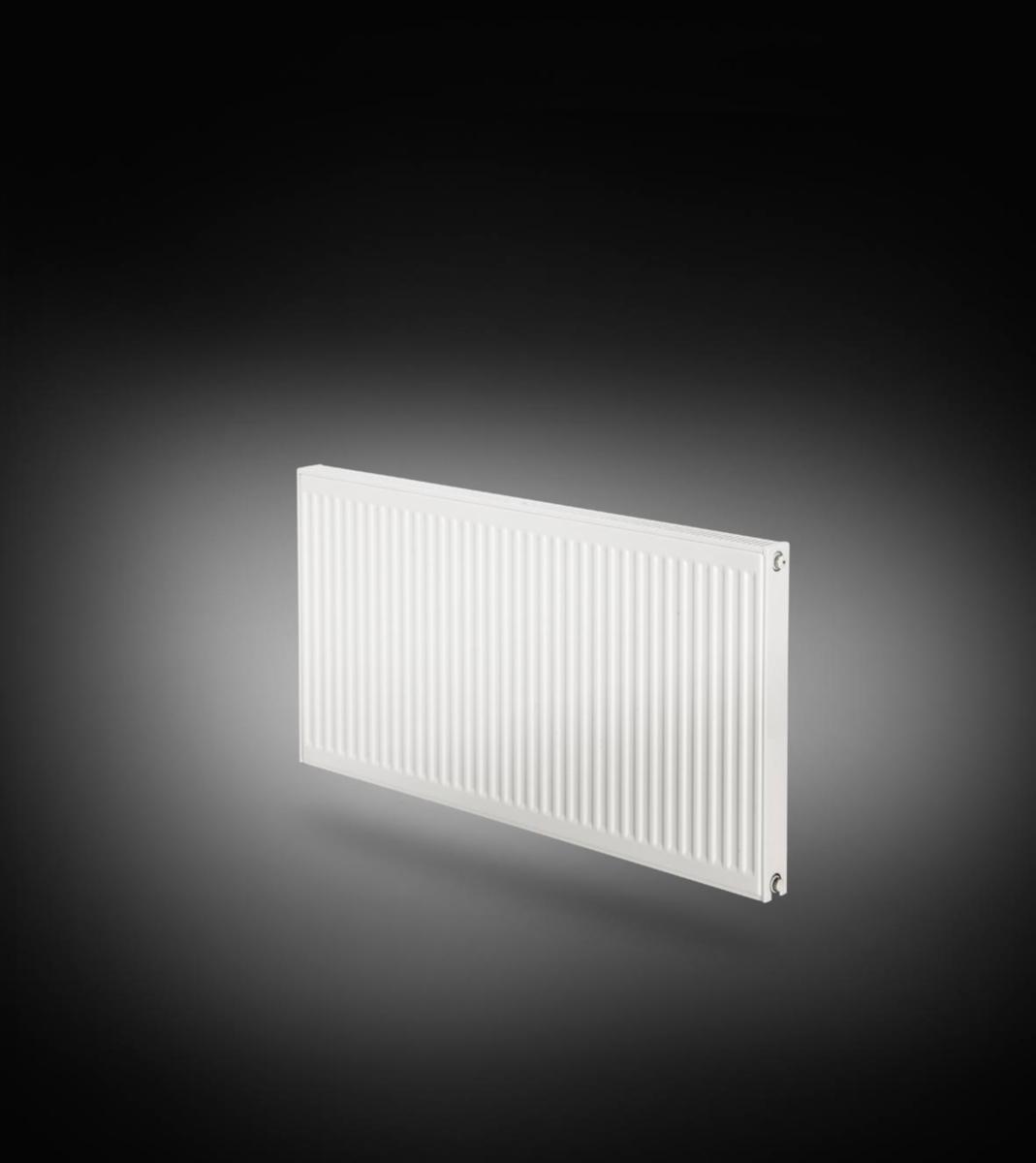

Radiator Purmo Compact C 22, excluding coupling, height 600 mm
C22 600 2600 PURMO COMPACT
Article number:
6733176
to see price and stock
A stylish compact radiator. With its classic design, PURMO Compact is an ideal basic radiator, which is designed for optimal heat output according to the European standardEN442. It is supplied with the mounted side plates and top grille with child-proof mounting.
For supply with couplings the following indication is given after the item number
D=Danfoss
M=MMA
Y=TA
* Heat output at Δd.t 50°C/Watt
** Heat output at Δd.t 30°C/Watt
For supply with couplings the following indication is given after the item number
D=Danfoss
M=MMA
Y=TA
* Heat output at Δd.t 50°C/Watt
** Heat output at Δd.t 30°C/Watt
- Article number: 6733176
- Ean no: 6418569067831
- Material class PEV100
Technical data
- Type: C22-6026
- Length: 2600 mm
- Height: 600 mm
- Depth: 110 mm
- Heat emission according to EN 442 20 °C - 55/45: 2246 W
- Heat emission according to EN 442 20 °C - 75/65: 4443 W
- Water content: 17.2 l
- Colour: White
- Degree of gloss: Glossy
- Thread connection: Internal thread
- Thread size (inch): 1/2 inch
- With integrated thermostatic valve: No
- Suitable for electrical element: No
- Suitable for damp space: No
- Material: Steel
- Max. operating pressure: 10 bar
- With de-aerator: Yes
- With drain valve: Yes
- With blind plugs: Yes
- With electrical element: No
- With single-point connection: Yes
- With de-aeration connection: No
- With mounting material: No
- With side lining: Yes
- With wall brackets: Yes
- With top lining: Yes
- N-exponent: 1.335
- Welded-on strips: Yes
- RAL-number: 9016
- Standard colour: Yes
- Type: 22
- Number of standard connections: 4
