MMA
Inserts for MMA's Stato and Minor Series, MMA

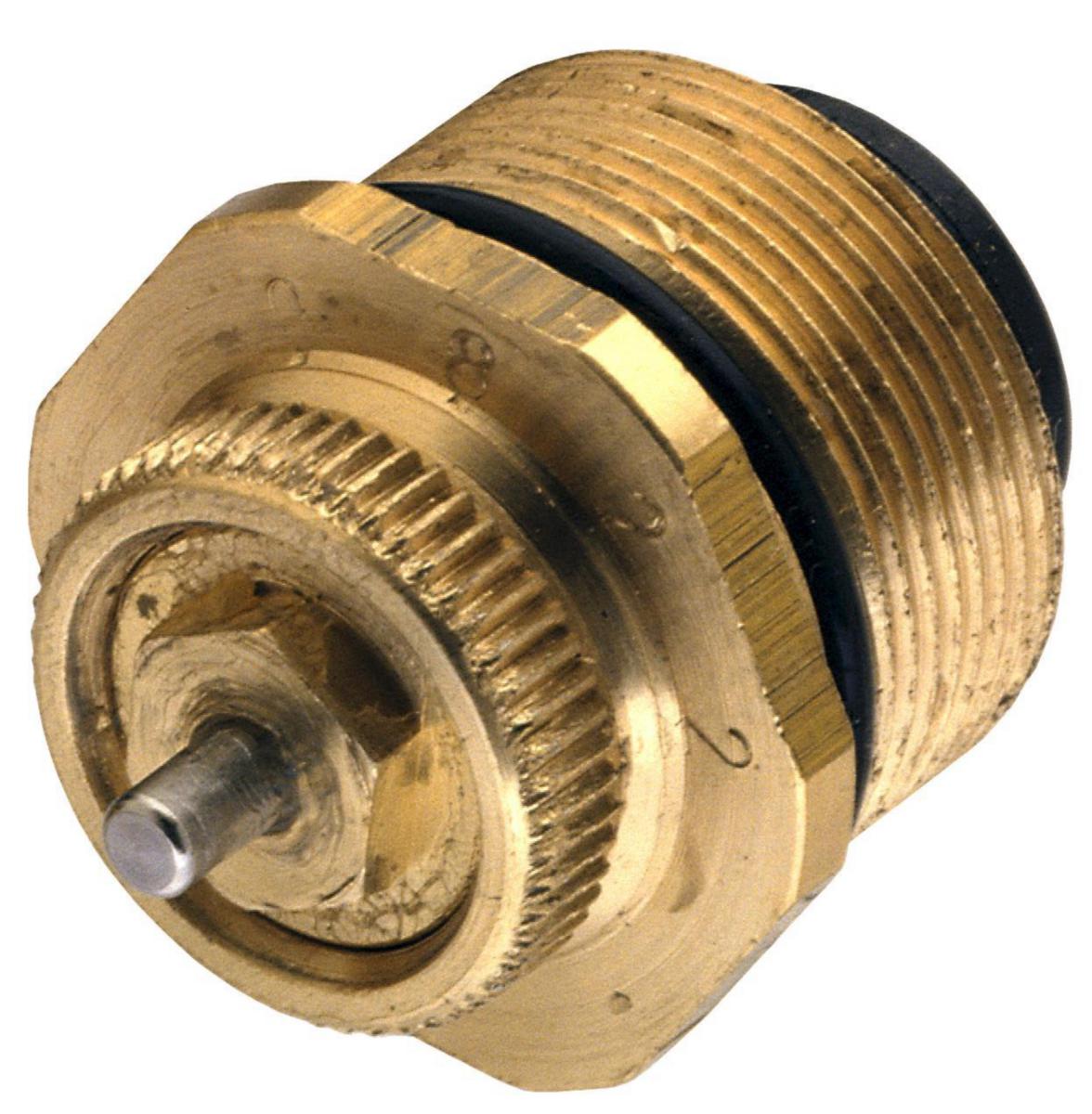

NTM MMA VALVE INSERT M SERIES 1966-1972
Article number: Suppl. article no:
4805652
4080901
to see price and stock
Stato/Minor/honeywell, 1966-72
- Article number: 4805652
- Suppl. article no: 4080901
- Ean no: 7330580080004
- Material class PEA11B
Technical data
- Size of radiator connection: 3/8 inch (10)
- Model: Tailpiece/external thread
- Shape: Straight
- Size of pipe connection: 3/8 inch (10)
- Thermostatically prepared: Yes
- Size of thermostatic adjustment element connection: M28 x 1.5
- Shortened construction length: No
- Can be preset: Yes
- Suitable for single pipe system: Yes
- Suitable for two pipe system: Yes
- Length of connection 1: 29 mm
- Housing material: Bronze
- Surface protection: Untreated
- With bent tailpiece: No
- Presetting: With valve guard
- Reverse direction of flow: No
- Operation: Thermostatic without button
- With dust cap: Yes
- Kv value: 0.02-0.82
- Kvs value: 0.82
- With compression set: No
- Automatic flow control: No
- Colour button: White
- Height: 0 mm
- Throughflow capacity (min. 10 kPa): 6-250 l/h
- Throughflow capacity (min. 15 kPa): 7.5-300 l/h
- With straight tailpiece: No
- Length of connection 2: 29 mm
- Kv 2 value: 0.4
- Working length connection 1: 10 mm
- Working length connection 2: 6 mm
- Pipe diameter compression set: 10 mm
- Type: NTM
