MMA

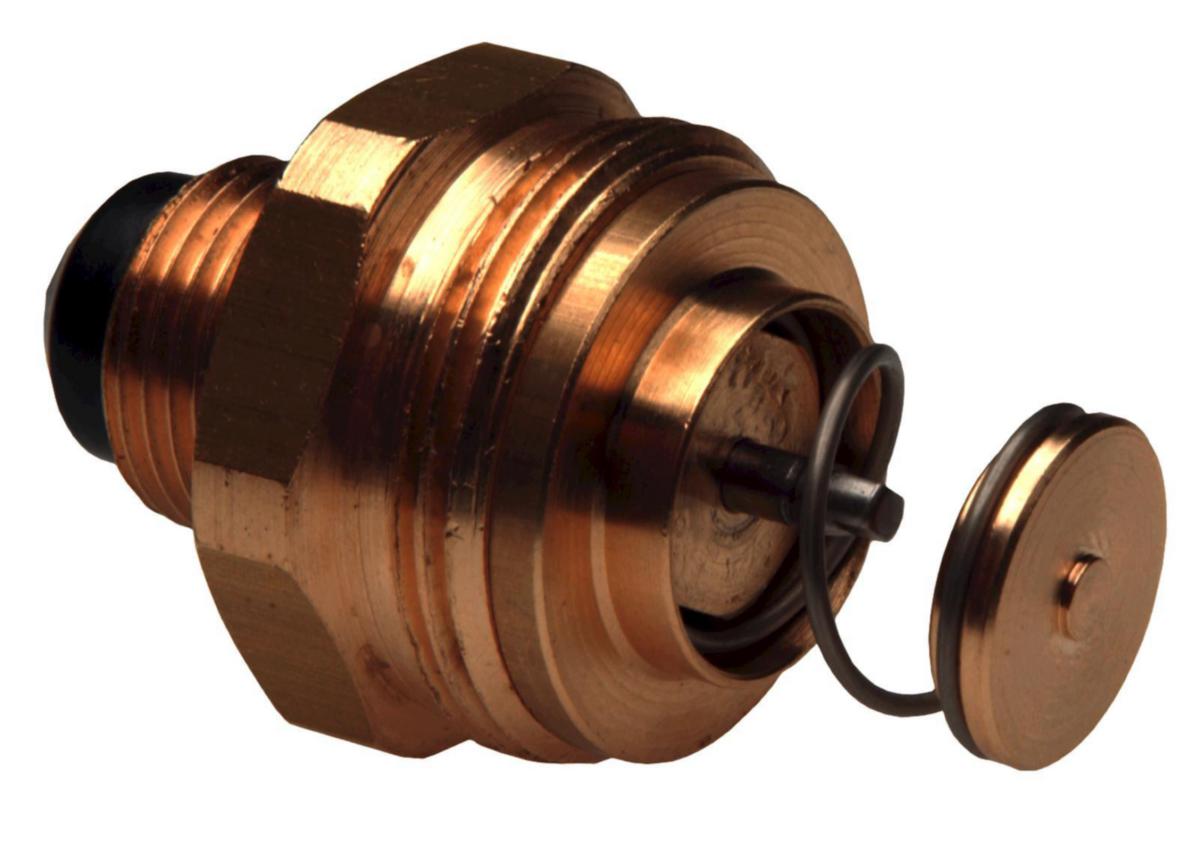

Replacement insert NAF 57/64, MMA
10 B10 MMA VALVE INSERT F NAF (57-70)
Article number: Suppl. article no:
4805248
4096490
to see price and stock
For NAF57 10 1957-65 and NAF64 10 1964-70.
- Article number: 4805248
- Suppl. article no: 4096490
- Ean no: 7330580090225
- Material class PEA11B
Technical data
- Packagin Size: 1 ST/10 ST
- Size of radiator connection: 3/8 inch (10)
- Model: Tailpiece/external thread
- Shape: Straight
- Size of pipe connection: 3/8 inch (10)
- Thermostatically prepared: Yes
- Size of thermostatic adjustment element connection: M28 x 1.5
- Shortened construction length: No
- Can be preset: Yes
- Suitable for single pipe system: Yes
- Suitable for two pipe system: Yes
- Length of connection 1: 29 mm
- Housing material: Bronze
- Surface protection: Untreated
- With bent tailpiece: No
- Presetting: With valve guard
- Reverse direction of flow: No
- Operation: Thermostatic without button
- With dust cap: Yes
- Kv value: 0.02-0.82
- Kvs value: 0.82
- With compression set: No
- Automatic flow control: No
- Colour button: White
- Height: 0 mm
- Throughflow capacity (min. 10 kPa): 6-250 l/h
- Throughflow capacity (min. 15 kPa): 7.5-300 l/h
- With straight tailpiece: No
- Length of connection 2: 29 mm
- Kv 2 value: 0.4
- Working length connection 1: 10 mm
- Working length connection 2: 6 mm
- Pipe diameter compression set: 10 mm
- Type: 10B10
