Purmo

Cross connection c/c 50, Purmo

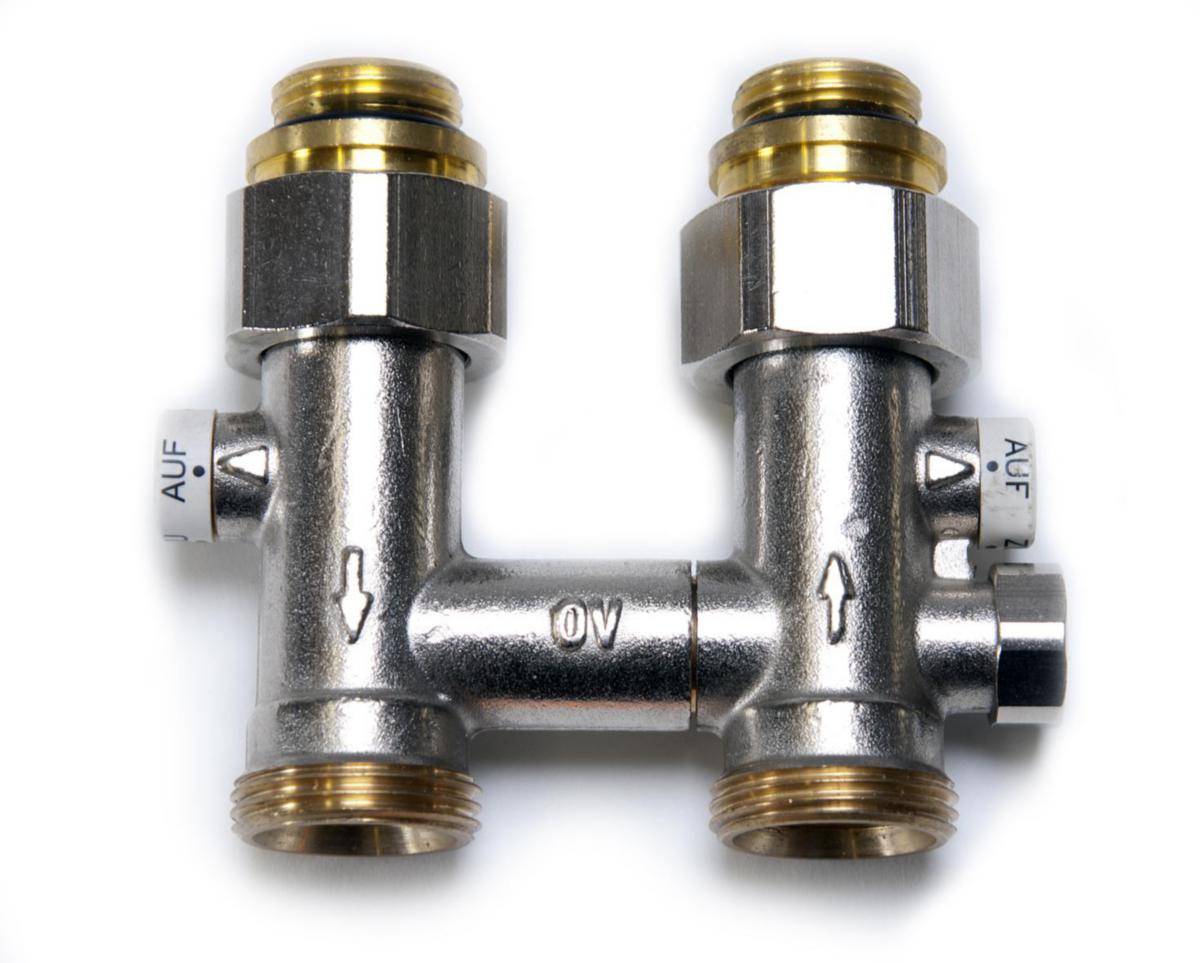

PURMO INVERSION 50MM C/C EUROCONE 20XR15
Article number:
6712091
Suppl. article no:
AZ0CP00GG00010T0





 to see price and stock
For reversing the flow if supply and return have been mixed up, incl. connection to the radiator external thread 1/2" x 3/4". Transition nipples (AZ03TP0040013300) for transition to 1/2" to the radiator are included. Fits radiators with built-in valve and 50 mm c/c type CV, CVM, Belize and PurmoKon. With built-in shutdown.
  • Article number:
    6712091
  • Suppl. article no:
    AZ0CP00GG00010T0
  • Ean no:
    9004465420565
  • Material class
    PEV140
Technical data
  • Connection 1: External thread cylindrical BSPP-G (ISO 228-1)
  • Connection 2: External thread cylindrical BSPP-G (ISO 228-1)
  • Connection 3: Union nut
  • Connection 4: Union nut
  • Nominal diameter connection 1: 3/4 inch (20)
  • Nominal diameter connection 2: 3/4 inch (20)
  • Nominal diameter connection 3: 3/4 inch (20)
  • Nominal diameter connection 4: 3/4 inch (20)
  • Outer pipe diameter connection 4: 21.3 mm
  • Outer pipe diameter connection 3: 21.3 mm
  • Outer pipe diameter connection 2: 26.9 mm
  • Outer pipe diameter connection 1: 26.9 mm
  • Material: Brass
  • Surface protection: Nickel-plated
