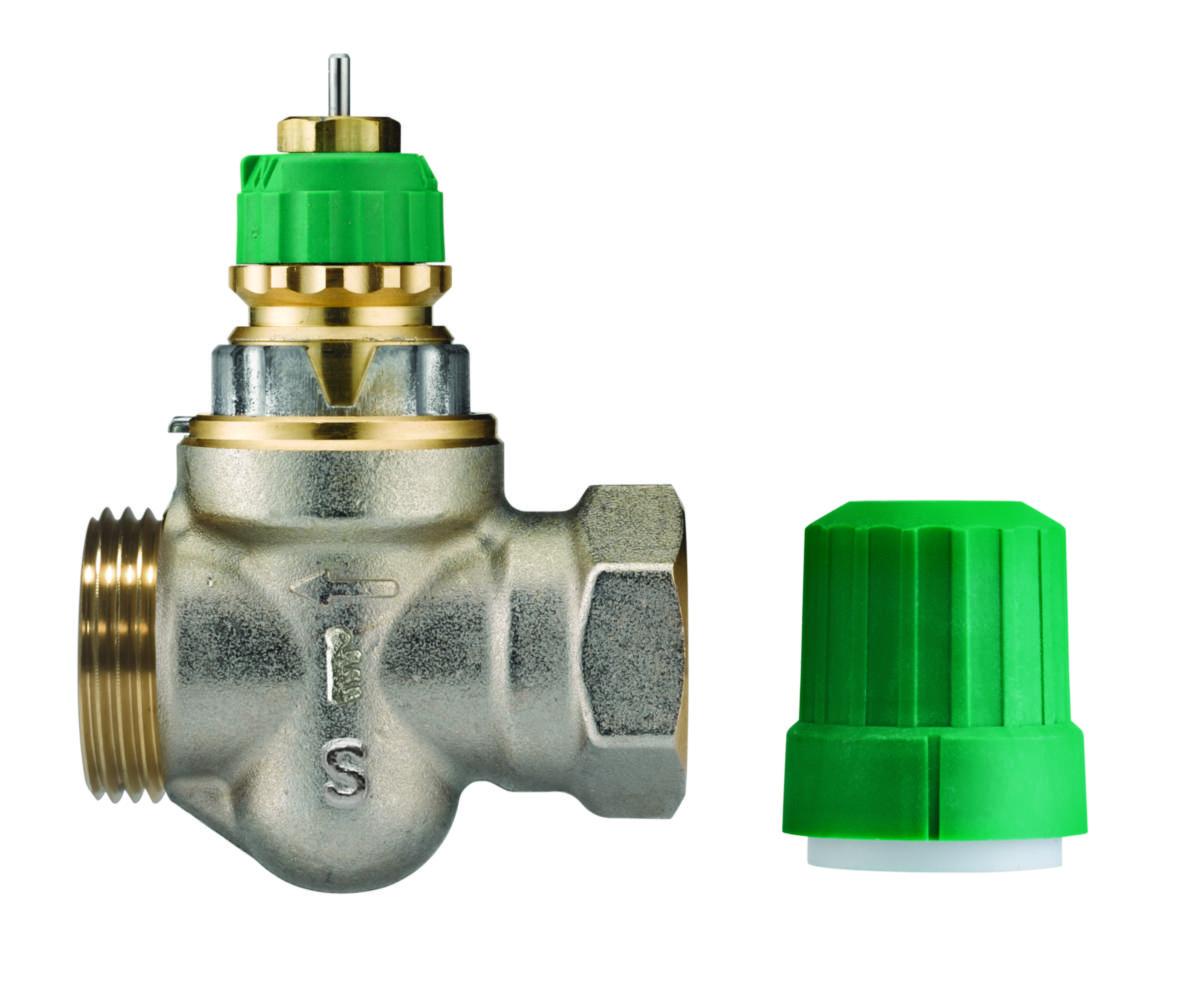

Radiator valve RA-DV PURE straight without coupling parts, Danfoss
Dynamic Valve
Article number: Suppl. article no:
6677002
015G0274
to see price and stock
RA-DV PURE straight, without coupling parts. Pressure-independent radiator valve. Working range 10-60 kPa. Flow range 10-130 l/h. Low-lead variant in brass with a lead content below 0.1%. Dimensions according to EN215, Swedish standard.
- Article number: 6677002
- Suppl. article no: 015G0274
- Ean no: 5715162477199
- Material class PEA100
Technical data
- Size of radiator connection: M26 x 1.5
- Model: Tailpiece/internal thread
- Shape: Straight
- Size of pipe connection: 1/2 inch (15)
- Thermostatically prepared: Yes
- Size of thermostatic adjustment element connection: 22 mm
- Can be preset: Yes
- Suitable for single pipe system: No
- Suitable for two pipe system: Yes
- Housing material: Brass
- Surface protection: Nickel-plated
- With bent tailpiece: No
- Presetting: Without valve guard
- Reverse direction of flow: No
- Operation: Thermostatic without button
- With dust cap: Yes
- With compression set: No
- Automatic flow control: Yes
- Throughflow capacity (min. 10 kPa): 10-135 l/h
- Throughflow capacity (min. 15 kPa): 10-135 l/h
- With straight tailpiece: No
- Working length connection 1: 55 mm
- Working length connection 2: 55 mm
- With sealing ring: No
- Pressure independent: Yes
- Thermostatic adjustment element connection: Click
- REACH Date: 2022-09-09
- REACH Information obligation: No
