Ground Source Heat Pump Compress 7800i LWF, Bosch

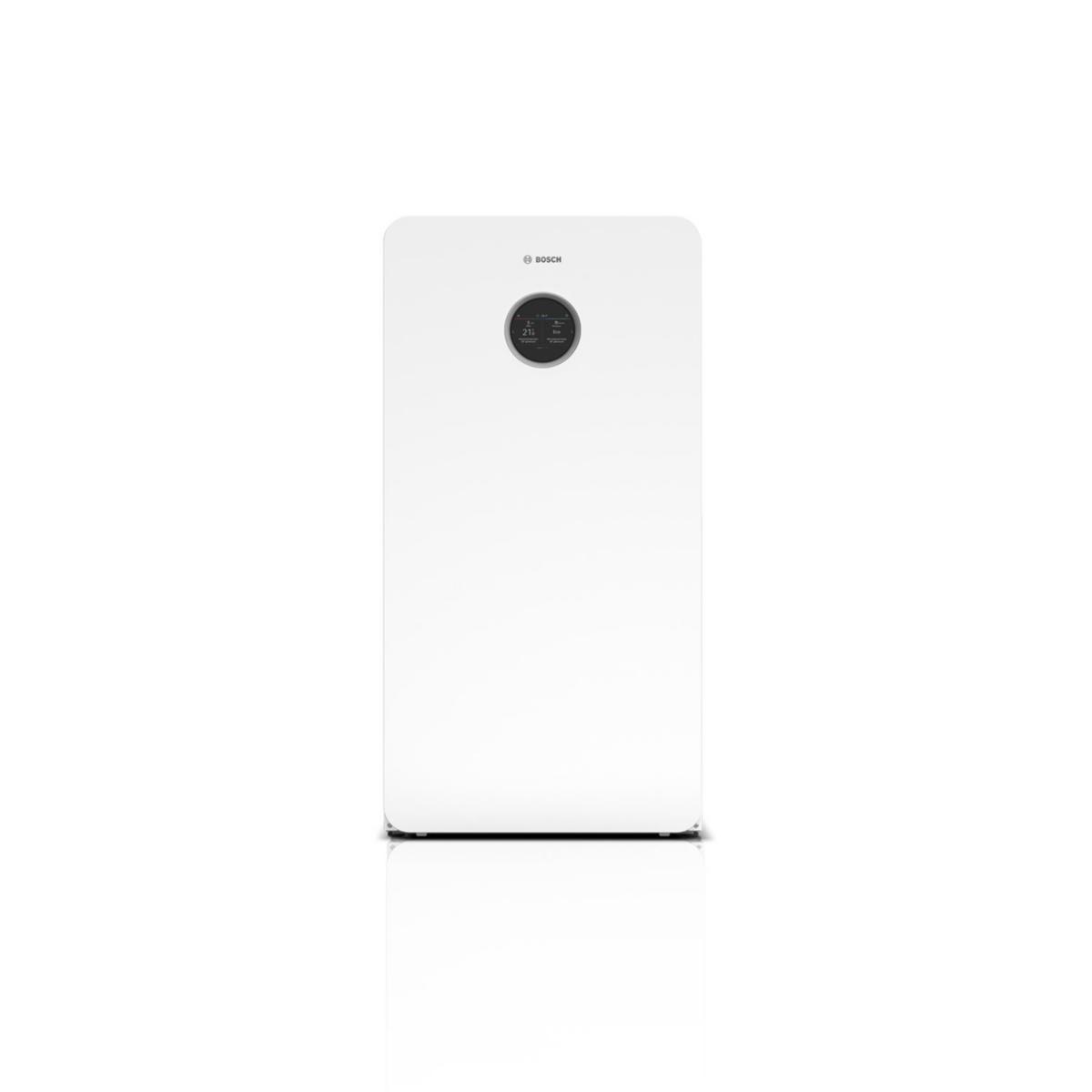

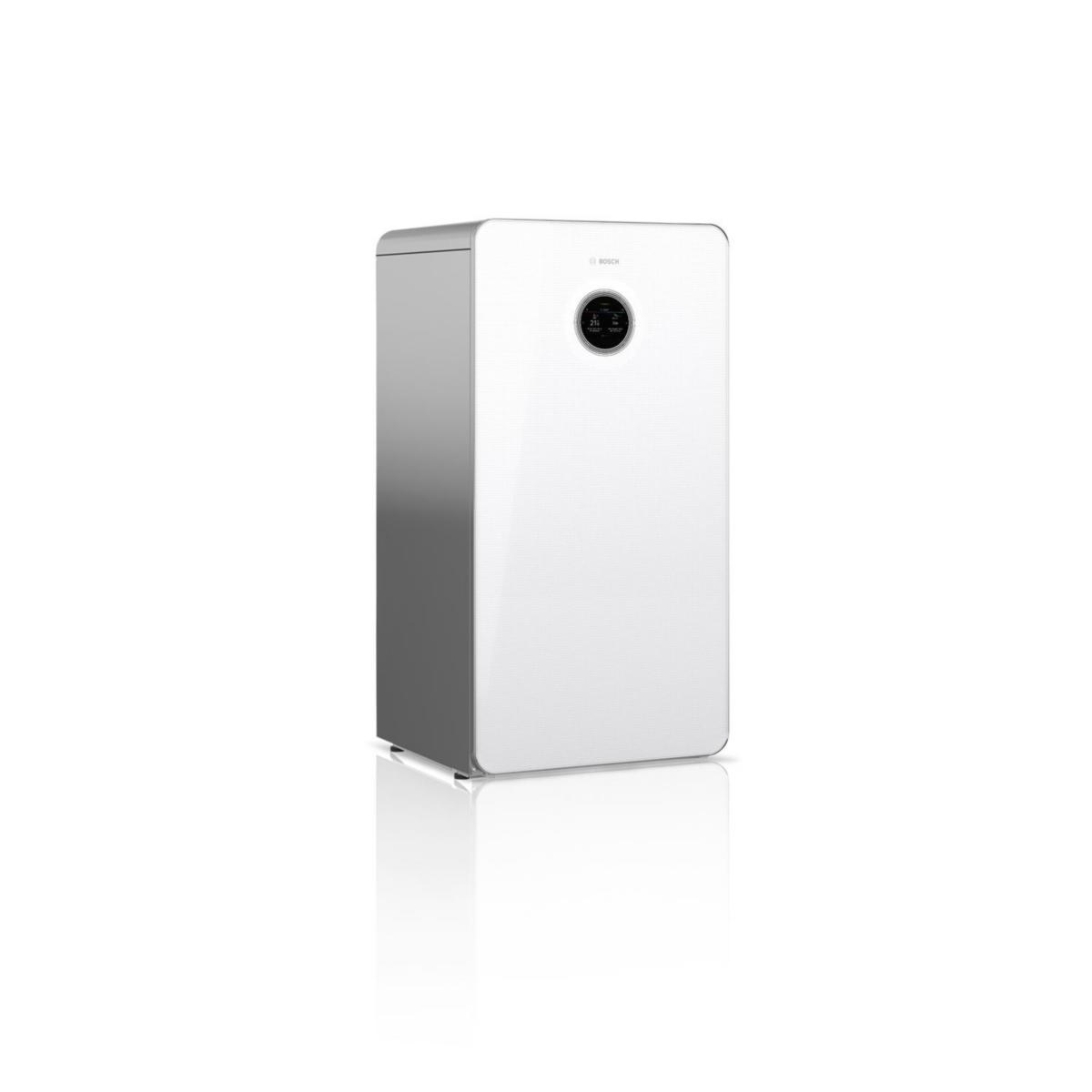

Bosch Compress 7800i LW 12 F HEATPUMP LIQUID/WATER
Artikelnummer: Lev. artikelnr:
6249362
8738213118
för att se saldo och pris
Bosch Compress 7800i LW F is a liquid / water heat pump for the energy sources land, mountain, lake or groundwater. Bosch Compress 7800i LW F contains a user-friendly control center with a large and clear touch color screen and with possible connection to a smartphone. The Bosch Compress 7800i LW F produces heat and also has an integrated supplement of up to 9kW. Bosch Compress 7800i LW F has an inverter-controlled compressor that works between 2 - 16 kW depending on model and needs and operating conditions. Integrated in the Bosch Compress 7800i LW F, the expansion vessel, filling set and the integrated circulation pumps on the hot and cold side are controlled completely automatically as needed.
- Article number: 6249362
- Suppl. article no: 8738213118
- Ean no: 4062321533120
- Material class PEQ100
Teknisk data
- Connection voltage: 400 V
- Width: 600 mm
- Depth: 610 mm
- Height: 1180 mm
- Power electric heating element: 0-9 kW
- Weight: 174 kg
- Type of refrigerant: R410a
- COP at 0/35 °C (B0/W35) according to EN 14511: 4.75
- Cooling integrated: No
- Cascadable: Yes
- Suitable for swimming pool water heating: Yes
- Suitable for closed circuit well (soil collector): Yes
- Suitable for hot tap water: Yes
- Suitable for open well (groundwater): No
- Operating temperature source: -5-30 °C
- Max. operating pressure source system: 3 bar
- With electric heating element: Yes
- Swimming pool controls: No
- Energy efficiency class space heating: A+++
- Remote operation possible: Yes
- Suitable for cooling: Yes
- Max. operating pressure output system: 3 bar
- Hot tap water feature integrated: No
- Nominal volume flow rate source system: 0.28 l/s
- Nominal volume flow rate output system: 0.21 l/s
- Fuse (slow): 25 A
- Outer pipe diameter connection output system: 28 mm
- Outer pipe diameter connection source system: 28 mm
- Data transfer via USB: No
- Max. heating water supply temperature: 65 °C
- Outer pipe diameter tap water: 22 mm
- Heating capacity at 0/35 °C (B0/W35) according to EN 14511: 3-12.53 kW
- Water heating energy efficiency class according to 811/2013/EU: A+
- Capacity profile: XL
- Max. pressure of hot tap water: 10 bar
- Degree of protection (IP): IPX1
- Sound performance level according to EN 12102 at 0/35 °C: 41 dB(A)
- ηwh (water heating energy efficiency): 124 %
- Data transfer via bus connection: No
- Data transfer via internet: Yes
- REACH Date: 2021-12-16
- REACH Information obligation: No
