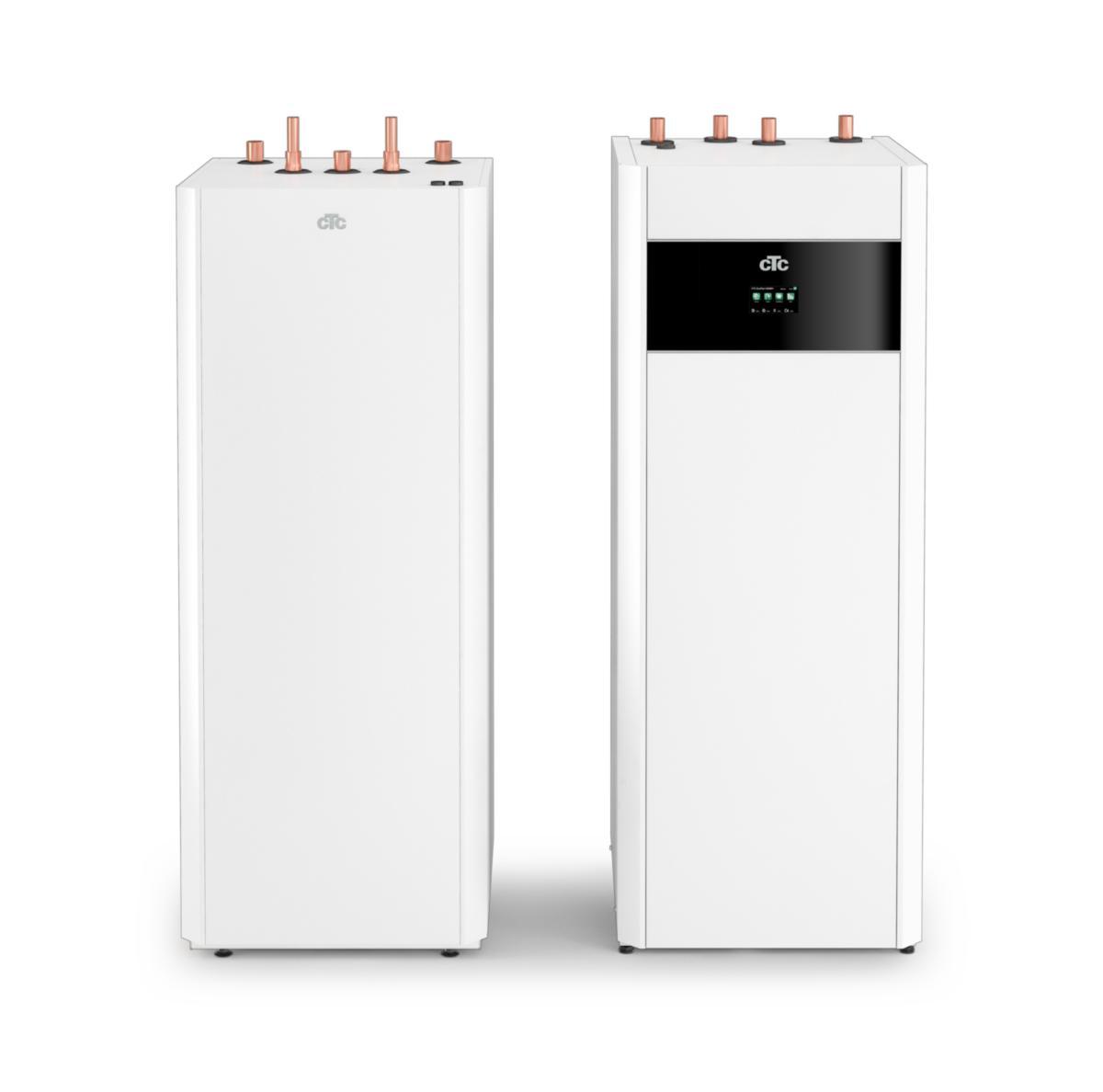

Ground Source Heat Pump EcoPart i600, CTC
CTC EcoPart i608M
Article number: Suppl. article no:
6249344
588601001
Normally in stock
to view the store status of the store
to see price and stock
Of course! Please provide the product description you would like me to translate.
- Article number: 6249344
- Suppl. article no: 588601001
- Ean no: 7333077097653
- Material class PEQ120
Technical data
- Connection voltage: 400 V
- Width: 596 mm
- Depth: 673 mm
- Height: 1632 mm
- Power electric heating element: 0.3-9 kW
- Weight: 207 kg
- Type of refrigerant: R407c
- COP at 0/35 °C (B0/W35) according to EN 14511: 4.78
- Cooling integrated: No
- Suitable for swimming pool water heating: Yes
- Suitable for closed circuit well (soil collector): Yes
- Suitable for hot tap water: Yes
- Suitable for open well (groundwater): No
- Operating temperature source: -5-20 °C
- Max. operating pressure source system: 3 bar
- With electric heating element: Yes
- Swimming pool controls: No
- Energy efficiency class space heating: A+++
- Remote operation possible: Yes
- Suitable for cooling: Yes
- Max. operating pressure output system: 3 bar
- Hot tap water feature integrated: No
- Nominal volume flow rate source system: 0.39 l/s
- Nominal volume flow rate output system: 0.29 l/s
- Fuse (slow): 16 A
- Outer pipe diameter connection output system: 28 mm
- Outer pipe diameter connection source system: 28 mm
- Heating capacity at 0/35 °C (B0/W35) according to EN 14511: 2.27-7.67 kW
- Degree of protection (IP): IPX1
- Tank volume: 7.4 l
- Sound performance level according to EN 12102 at 0/35 °C: 34 dB(A)
- COPd at Tj = +7 °C: 5.97
- COP at 10/35 °C (W10/W35) according to EN 14511: 3.46
- Heating capacity at 10/35 °C (W10/W35) according to EN 14511: 2.92-10.65 kW
- Refrigerant pre-charge: 2.4 kg
