NIBE

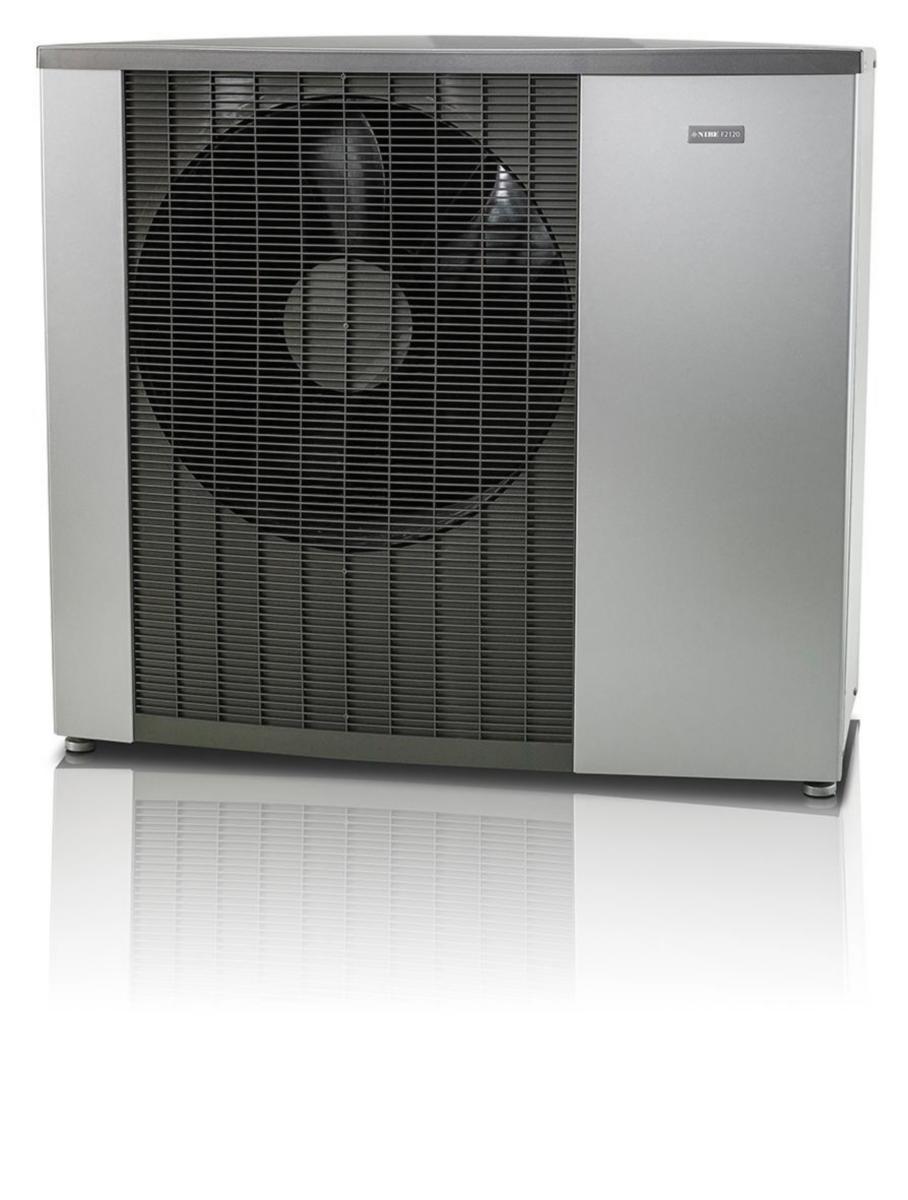

Air/water heat pump F2120, Nibe
FIGHTER 2120-16 AIR/WATER NIBE 3-PHASE
Article number: Suppl. article no:
6251366
064139
to see price and stock
Inverter-controlled outdoor air unit designed to dock to water-borne heating systems together with indoor module. Pre-installed trough warmer. Without water heater.
- Article number: 6251366
- Suppl. article no: 064139
- Ean no: 7331421335741
- Material class PEQ140
Technical data
- Height: 1130 mm
- Width: 1280 mm
- Depth: 612 mm
- Weight: 183 kg
- Refrigerant pre-charge: 3 kg
- Degree of protection (IP): IP24
- Type of refrigerant: R410a
- Connection voltage: 400 V
- Swimming pool controls: Yes
- Heating capacity at 7/35 °C according to EN 14511: 5.17 kW
- Type of regulation: Weather-dependent control
- Suitable for swimming pool water heating: Yes
- Modulating compressor: Yes
- External controller required: No
- Sofstarter built-in: Yes
- COP at 7/35 °C according to EN 14511: 5.11
- Suitable for hot tap water: Yes
- Sound performance level according to EN 12102 at 0/35 °C: 53 dB
- Max. heating water supply temperature: 65 °C
- Type of pump (system pump): Energy saving
- Max. operating pressure output system: 4.5 bar
- Regulation for buffer tank control: Yes
- Cascadable: Yes
- Suitable for active cooling: Yes
- Hot tap water control integrated: No
- Suitable for additional heating central heating: Yes
- Remote operation: Yes
- Data transfer via internet: Yes
- Data transfer via USB: No
- Connection and control multiple output systems possible: Yes
- Room temperature control: Yes
- Regulation for central heating boiler control: Yes
- COPd at Tj = +7 °C: 4.67
- Energy efficiency class space heating: A+++
- Air temperature: -25-43 °C
- Kind of optimization: Space sensor
- Type of speed control (system pump): Automatically controlled on dT
- Air volume: 0-4150 m³/h
- Fuse (slow): 10 A
- Capacity profile: XXL
- Speed control pump (system pump): External
- Data transfer via bus connection: Yes
- Nominal volume flow rate output system: 0.38 l/s
- ηwh (water heating energy efficiency): 103 %
- Energy efficiency class space heating (35 °C) at warmer conditions: A
- Limitation max. electric power consumption: 9.5 A
- Cooling performance at 35/18 °C according to EN 14511: 4-8.1 kW
- Cooling performance at 35/7 °C according to EN 14511: 3-7 kW
- REACH Date: 2024-01-23
- REACH contains candidate substances: Bly
- Type: F2120-16
- Design: 3-phase
- REACH Information obligation: Yes
