Eveco

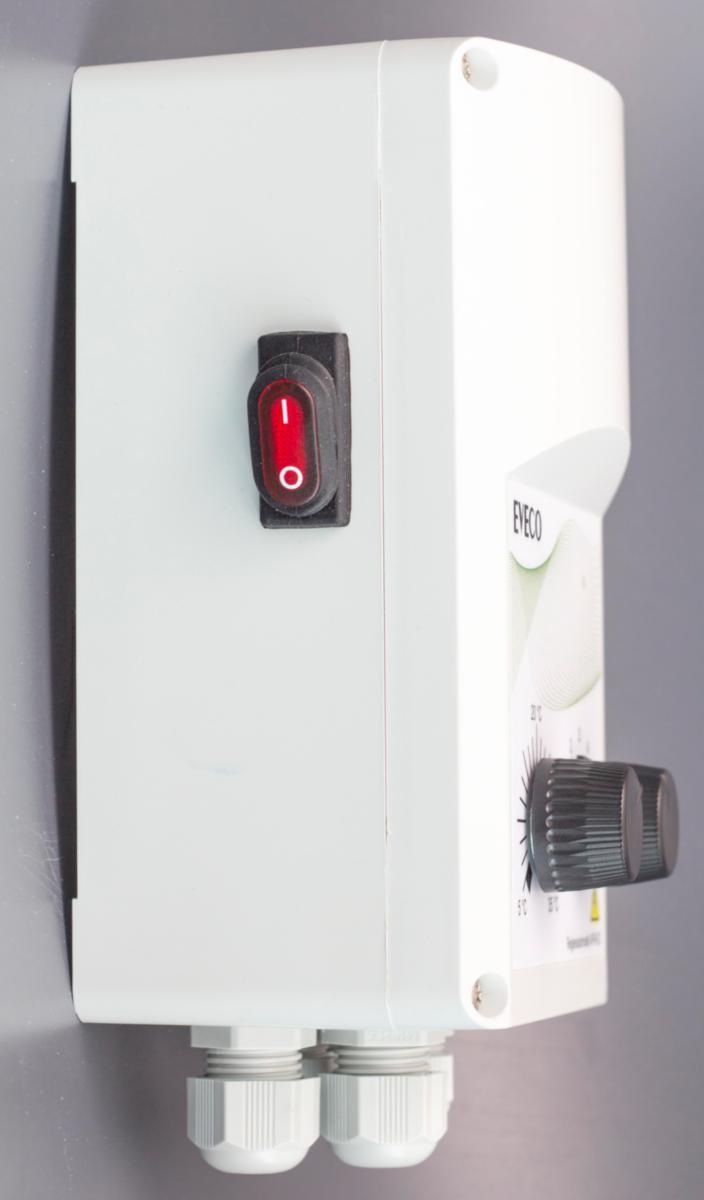

Temperature control AFR-EC, Eveco
Air heater controller
Article number: Suppl. article no:
6704772
AFR-EC
to see price and stock
AFR-EC is a speed control and electronic thermostat in one. The speed regulation takes place through a 0-10V signal, and you can choose the speed yourself or let the automatic control select the speed based on the temperature difference between actual and setpoint. When delivered, the temperature sensor is mounted in a throttle nipple, but can be moved to another location if desired. Max 50m cable length to the sensor.
- Article number: 6704772
- Suppl. article no: AFR-EC
- Material class PEZ250
Technical data
- Connection: Other
- Number of cooler outputs: 1
- Number of heater outputs: 1
- Width: 128 mm
- Depth: 98 mm
- External sensor: Yes
- Colour: Grey
- Height: 208 mm
- Adjustable differential: No
- Degree of protection (IP): IP54
- Communications protocol: Other
- Contact type: Breaker contact (NC)
- Suitable for cooling: Yes
- Temperature readable: Yes
- Operation: Turn
- Max. contact load: 10 A
- Max. contact voltage: 230 V
- With display: No
- With receiver: No
- Measuring range: 5-35 °C
- RAL-number: 7035
- Regulation type modulating: Yes
- Regulation type on/off: Yes
- Sensor/feeler type: Resistance sensor
- Type of power supply: 230 V
- REACH Date: 2022-10-01
- REACH Information obligation: No
