Frico

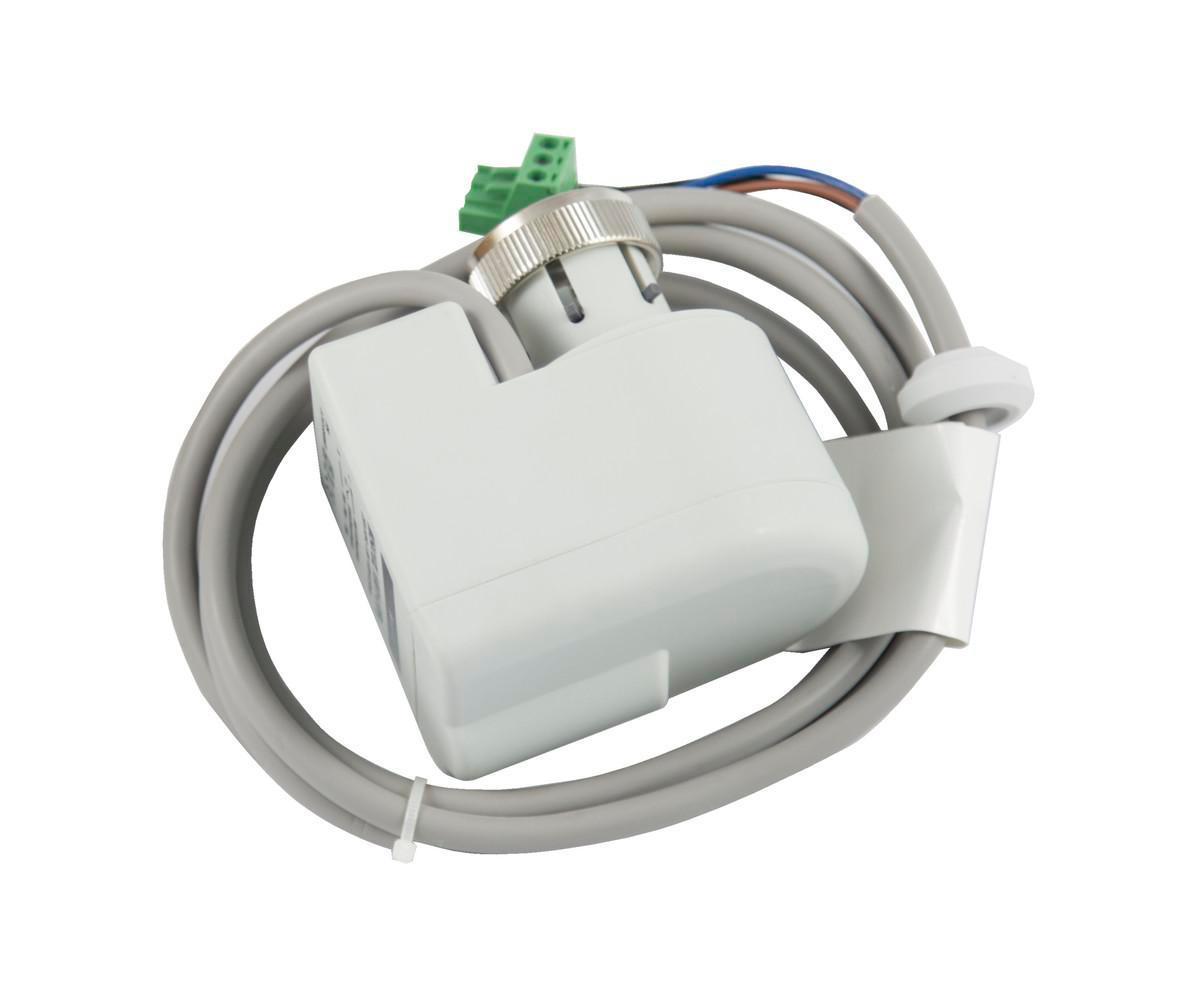

Valve actuator SD230, Frico
SD230 Actuator 230V
Article number: Suppl. article no:
6704549
16979
to see price and stock
SD230, Actuator.
The actuator regulates the heat supply on/off. In de-energized mode, the SD230 is open.
The actuator regulates the heat supply on/off. In de-energized mode, the SD230 is open.
- Article number: 6704549
- Suppl. article no: 16979
- Ean no: 7393410008890
- Material class PEZ130
Technical data
- Connection to stop valve: M30 x 1.5
- Width: 81 mm
- Function: Deactivated when open NO
- Colour: White
- Operating time: 3 s
- Height: 88 mm
- Degree of protection (IP): IP54
- Supply voltage: 230 V AC
- With valve adaptor: No
- With end contacts: Yes
- Model: Other
- Ambient temperature: 0-60 °C
- Self-adjusting travel length: No
- Stroke length: 6.5 mm
- REACH Date: 2021-07-20
- REACH Information obligation: No
