Esbe

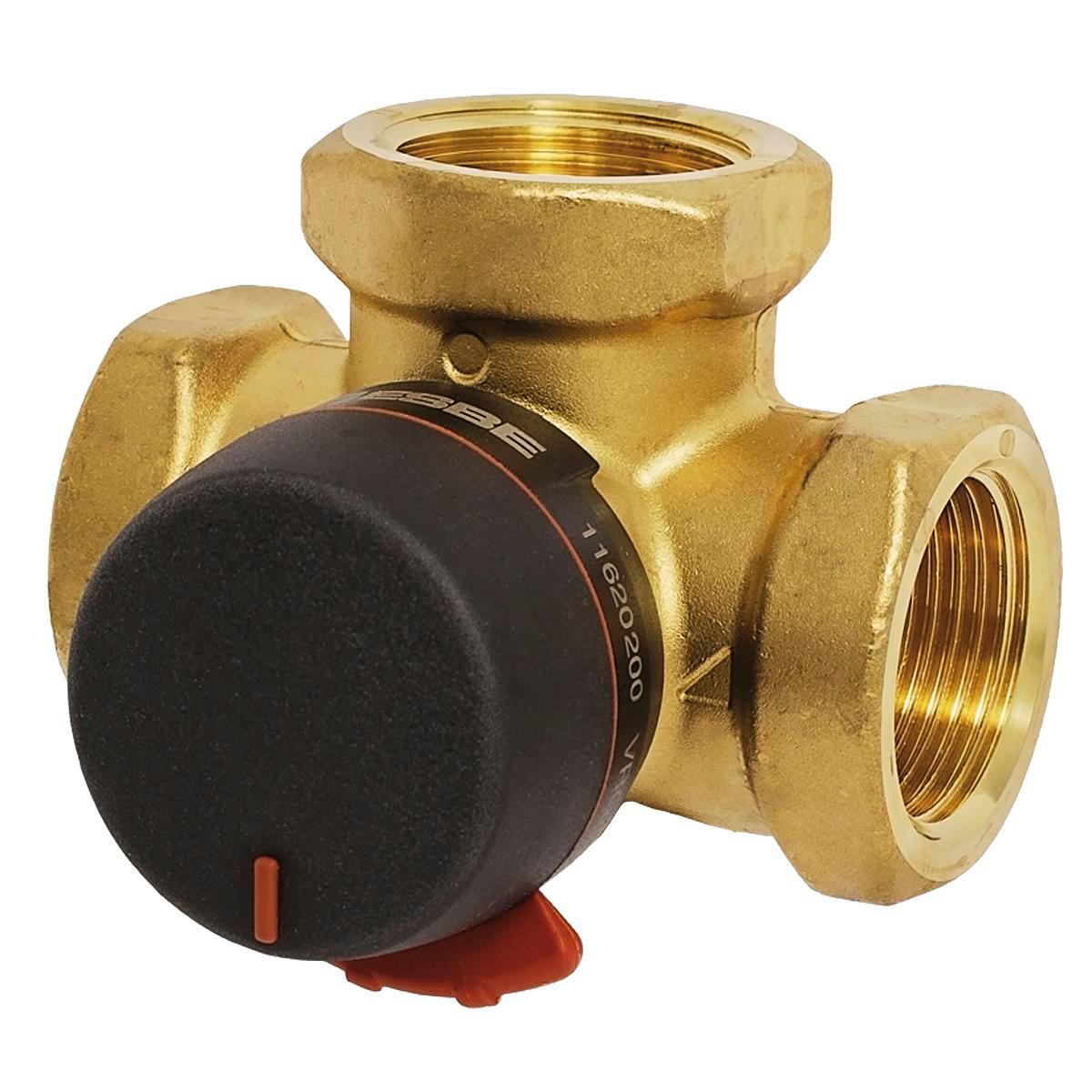

Switching valve VRG231, Esbe
ESBE VRG231 25-10 RP 1
Article number: Suppl. article no:
4905474
11620200
to see price and stock
3-way distribution valve in dezincification-resistant brass with internally threaded connection. ESBE distribution valve series VRG230 is intended for distribution in heating and cooling applications. Temperature range -10 to +130°C. Suitable actuator for motorization is ESBE series ARA600.
- Article number: 4905474
- Suppl. article no: 11620200
- Ean no: 7330193036108
- Material class PEB11B
Technical data
- Connections: Internal thread
- Article compression class: PN 10
- Nominal diameter: DN 25
- Kvs value: 10
- Housing material: Brass
- Characteristic curve: Linear
- KVS value for bypass: 10
- Leakage loss of Kvs value: 0.5 %
- Material quality: Dezincification resistant brass (DZR)
- Max. pressure difference in opened position: 1 bar
- With coupling connection 3: No
- With coupling connection 1: No
- With coupling connection 2: No
- Surface protection: Untreated
- Length of connection 1: 20.5 mm
- Length of connection 2: 82 mm
- Length of connection 3: 20.5 mm
- REACH contains candidate substances: Bly
- REACH Date: 2021-01-19
- REACH Information obligation: Yes
