Esbe

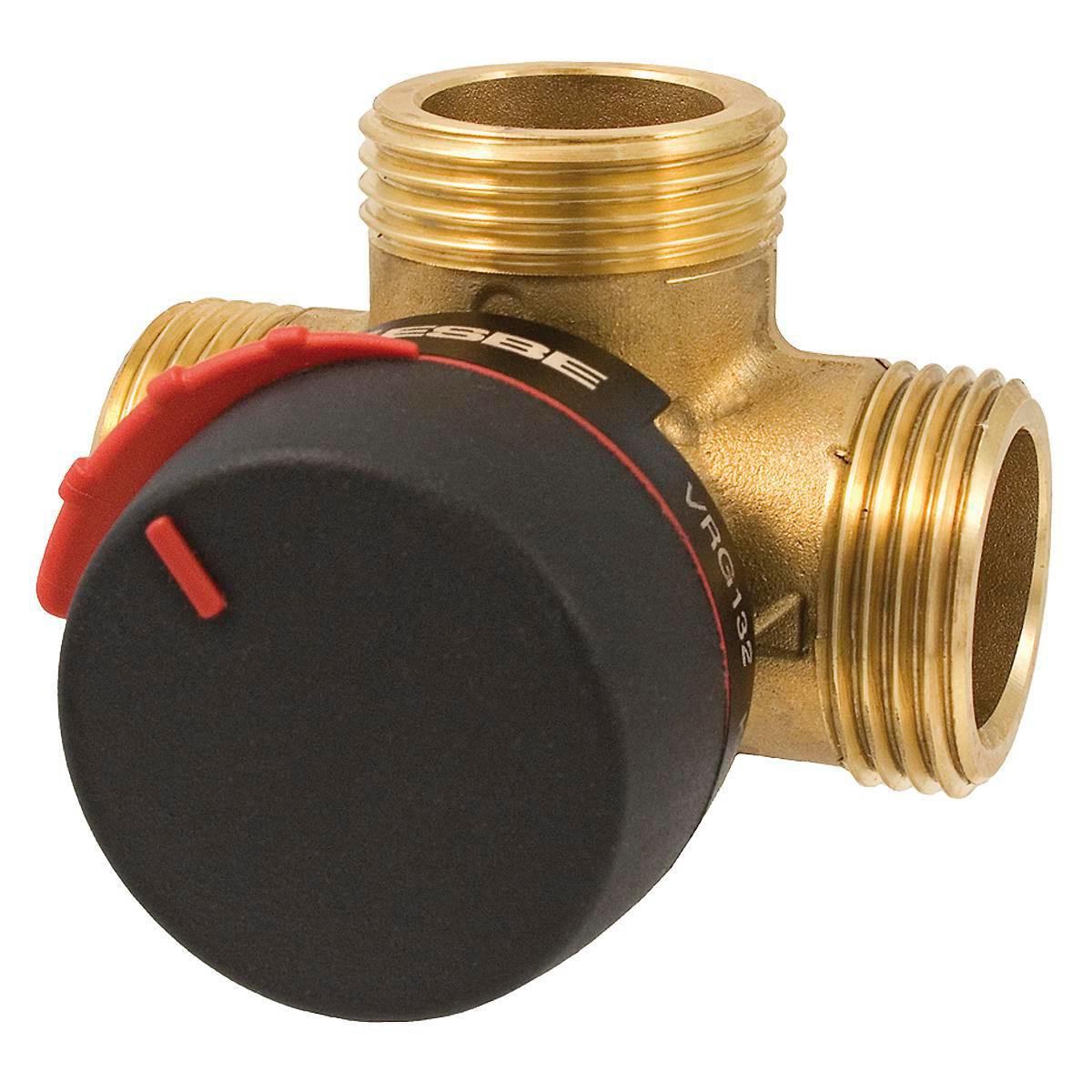

Shunt valve VRG132, Esbe
ESBE VRG132 20-4 G 1
Article number: Suppl. article no:
4905452
11602200
to see price and stock
3-way shunt valve VRG132 in dezincification-resistant brass with externally threaded connection. ESBE shunt valve series VRG130 is suitable for both mixing and distribution. Temperature range -10 to +130°C. Suitable actuator for motorization is ESBE series ARA600.
- Article number: 4905452
- Suppl. article no: 11602200
- Ean no: 7330193034036
- Material class PED10A
Technical data
- Connections: External thread
- Article compression class: PN 10
- Nominal diameter: DN 20
- Kvs value: 4
- Working length connection 1: 36 mm
- Working length connection 2: 36 mm
- Working length connection 3: 36 mm
- Housing material: Brass
- Characteristic curve: Linear
- Characteristic curve for bypass: Quadratic
- KVS value for bypass: 4
- Leakage loss of KVS value for bypass: 0.05 %
- Leakage loss of Kvs value: 0.05 %
- Material quality: Dezincification resistant brass (DZR)
- Max. pressure difference in opened position: 1 bar
- With T-piece for 4-way connection: No
- With coupling connection 3: No
- With coupling connection 1: No
- With coupling connection 2: No
- Surface protection: Untreated
- Length of connection 1: 18 mm
- Length of connection 2: 72 mm
- Length of connection 3: 18 mm
- REACH Date: 2021-01-19
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
