Esbe

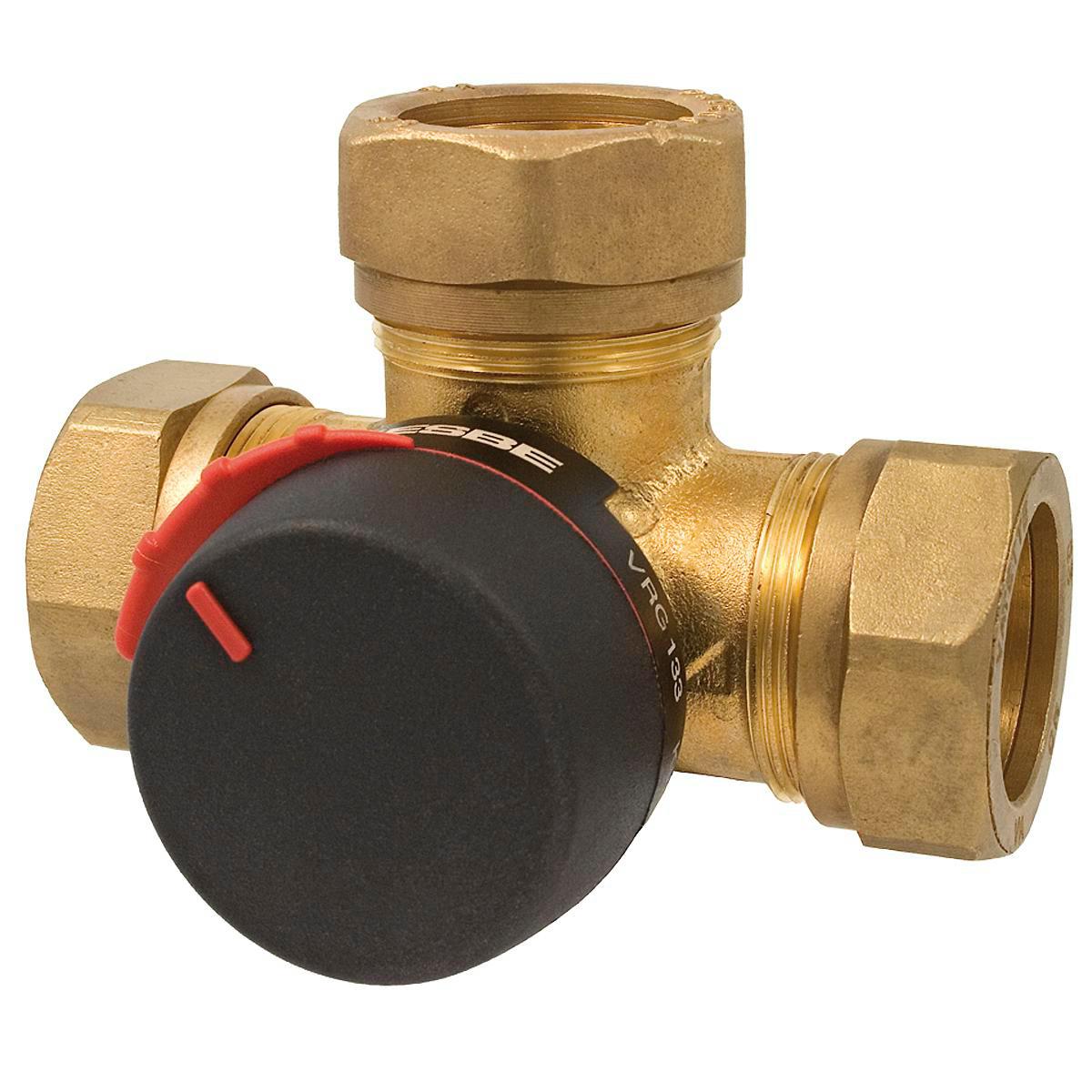

Shunt valve VRG133, Esbe
VRG133 DN25 3-WAY SHUNT VALVE ESBE, KVS10 28MM PN10
Article number: Suppl. article no:
4905444
11603100
to see price and stock
3-way shunt valve in dezincification-resistant brass with clamping ring connection. ESBE shunt valve series VRG130 is suitable for both mixing and distribution. Temperature range -10 to +130°C. Suitable actuator for motorization is ESBE series ARA600.
- Article number: 4905444
- Suppl. article no: 11603100
- Ean no: 7330193034104
- Replaces art.nbr: 4905379
- Material class PED10A
Technical data
- Connections: Compression ring
- Article compression class: PN 10
- Nominal diameter: DN 25
- Outer pipe diameter all connections: 28 mm
- Kvs value: 10
- Working length connection 1: 41 mm
- Working length connection 2: 41 mm
- Working length connection 3: 41 mm
- Housing material: Brass
- Characteristic curve: Linear
- Characteristic curve for bypass: Quadratic
- KVS value for bypass: 10
- Leakage loss of KVS value for bypass: 0.05 %
- Leakage loss of Kvs value: 0.05 %
- Material quality: Dezincification resistant brass (DZR)
- Max. pressure difference in opened position: 1 bar
- With T-piece for 4-way connection: No
- With coupling connection 3: Yes
- With coupling connection 1: Yes
- With coupling connection 2: Yes
- Surface protection: Untreated
- Length of connection 1: 20.5 mm
- Length of connection 2: 82 mm
- Length of connection 3: 20.5 mm
- Medium temperature (continuous): -10-110 °C
- REACH Date: 2021-01-19
- REACH contains candidate substances: Bly
- Type: VRG133
- REACH Information obligation: Yes
