Mixing valve BLVent F, TA
TA MATIC MIXING VALVE DN 25 DN 25 TEMP 35-65 C MAX 500 KPA
Article number: Suppl. article no:
4927892
34401020605
to see price and stock

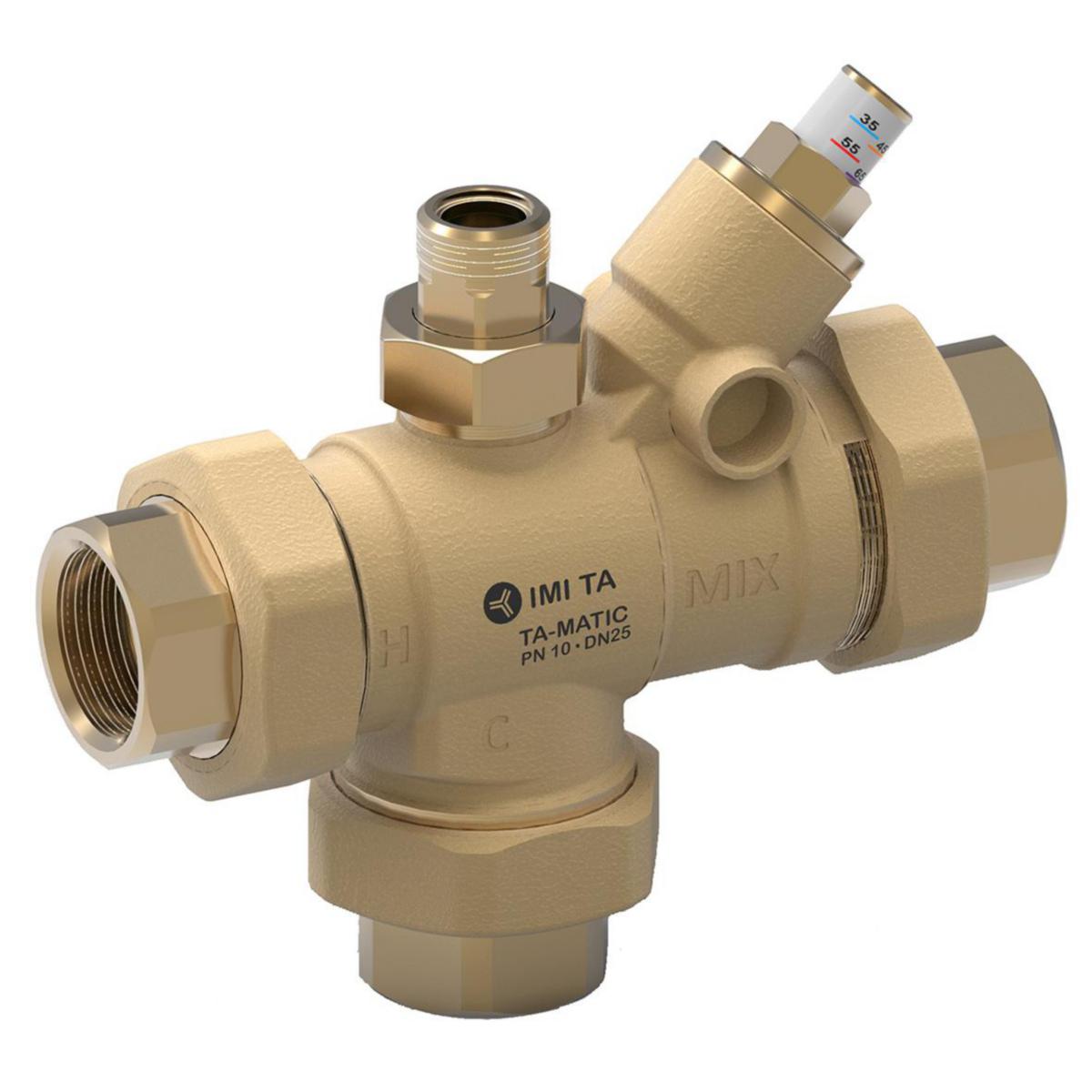

Thermostatic mixing regulator for tap hot water 35-65 ° C. including coupling with internal thread.
- Article number: 4927892
- Suppl. article no: 34401020605
- Ean no: 5902276898082
- Material class PEB130
Technical data
- Connection 1: Internal thread cylindrical BSPP-G (ISO 228-1)
- Temperature setting range: 35-65 °C
- Article compression class: PN 10
- Housing material: Brass
- Kvs value: 4
- Nominal diameter: 1 inch (25)
- Setting can be locked: Yes
- With drain valve: No
- With thermometer connection: Yes
- Min. flow: Yes
- With thermometer: No
- Length of connection 1: 69 mm
- Length of connection 2: 93 mm
- Design: VVC G1/2"
