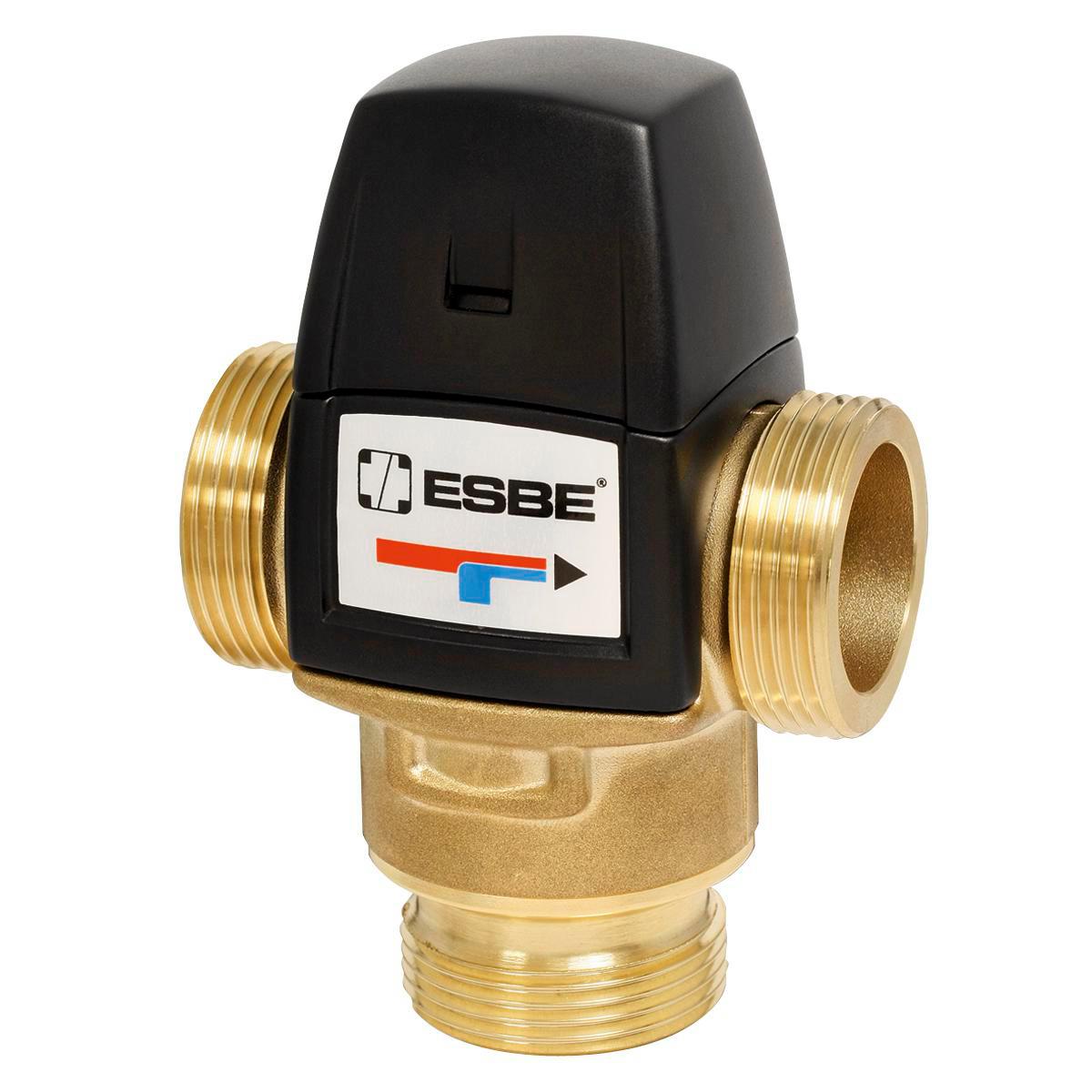

Mixing valve VTS522, Esbe
Thermostatic mixing valve
Article number: Suppl. article no:
4923775V
31720100
to see price and stock
Mixing valve series VTS520 offers a high flow capacity and good functionality for tap water systems connected to solar heating systems with high water temperatures. Equivalent to series VTS550 but the connection diagram is different. Max. differential pressure 0.3 MPa. Max. continuous operating temperature 110°C, short-term 120°C.
- Article number: 4923775V
- Suppl. article no: 31720100
- Ean no: 7330193040662
- Material class PEB110
Technical data
- Adjustment range hot water temperature: 45-65 °C
- Connection supply: External thread
- Connection size supply: 1 inch
- Thermostatic: Yes
- Connection to draw-off points: External thread
- Connection size to draw-off points: 1 inch
- Model: Surface mounting
- With temperature limit: No
- Extension set available: No
- With shut-off valve: No
- With filter: No
- With fastening eyes for front wall installations: No
- Kvs value: 3.2
- Temperature blocking (38 °C): No
- Max. supply temperature: 110 °C
- REACH contains candidate substances: Bly
- REACH Date: 2021-01-19
- REACH Information obligation: Yes
