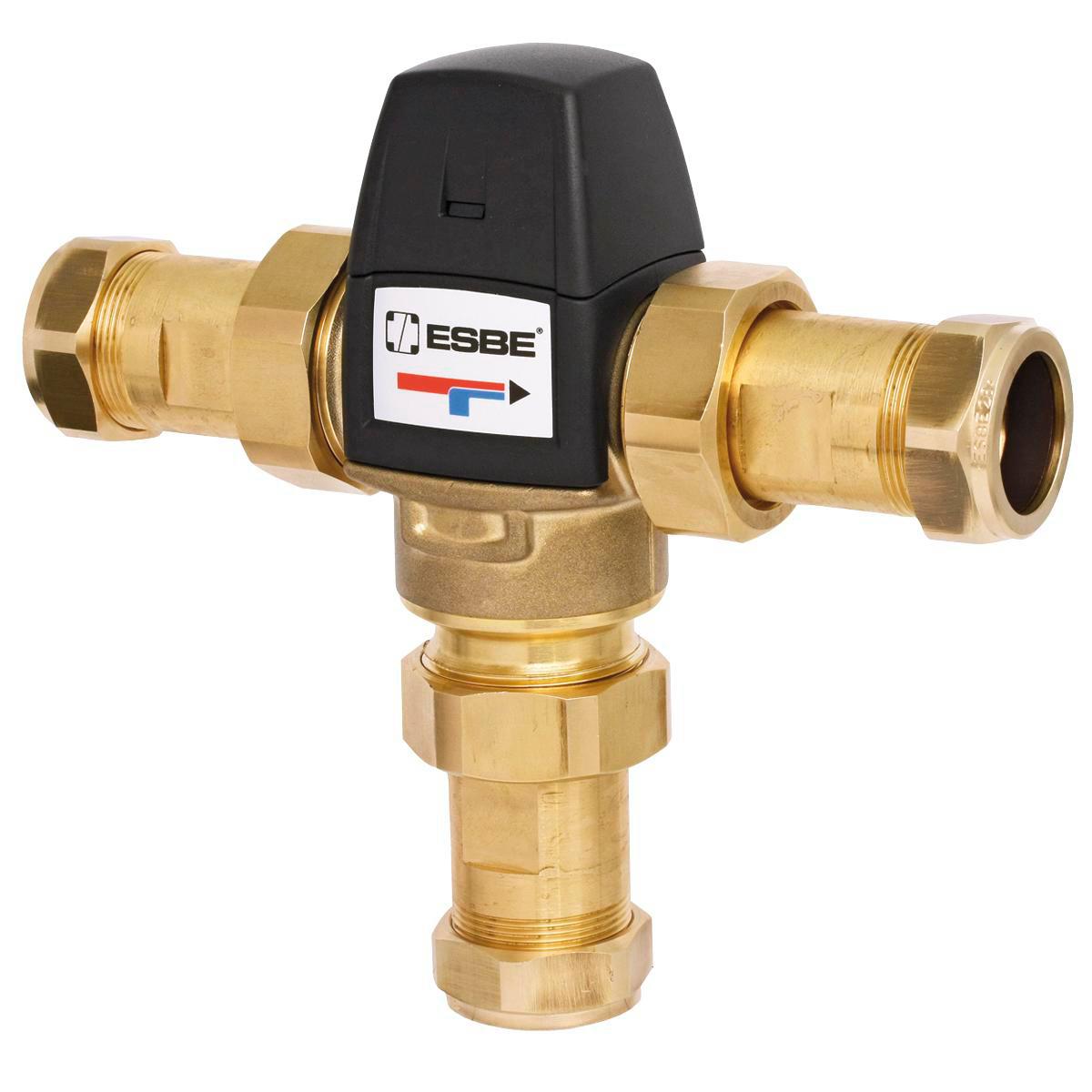

Mixing valve VTA523, Esbe

VTA523 MIXING VALVE ESBE 20-43°C KLK28 3.4
Article number:
4923733
Suppl. article no:
31621600





 to see price and stock
Säker vatteninstallationDenna produkt innehåller ett eller flera ämnen på kandidatförteckningen.
Mixing valve series VTA520 which offers high flow capacity and good functionality for universal applications such as domestic water control with or without hot water circulation.
  • Article number:
    4923733
  • Suppl. article no:
    31621600
  • Ean no:
    7330193040242
  • Material class
    PEB110
Technical data
  • Adjustment range hot water temperature: 20-43 °C
  • Connection supply: Compression ring
  • Connection size supply: 28 mm
  • Thermostatic: Yes
  • Connection to draw-off points: Clamp connection
  • Connection size to draw-off points: 28 mm
  • Model: Surface mounting
  • With temperature limit: No
  • Extension set available: No
  • With shut-off valve: No
  • With filter: No
  • With fastening eyes for front wall installations: No
  • Kvs value: 3.4
  • Temperature blocking (38 °C): No
  • Max. supply temperature: 95 °C
  • REACH Date: 2021-01-19
  • REACH contains candidate substances: Bly
  • Type: VTA 523
  • REACH Information obligation: Yes
