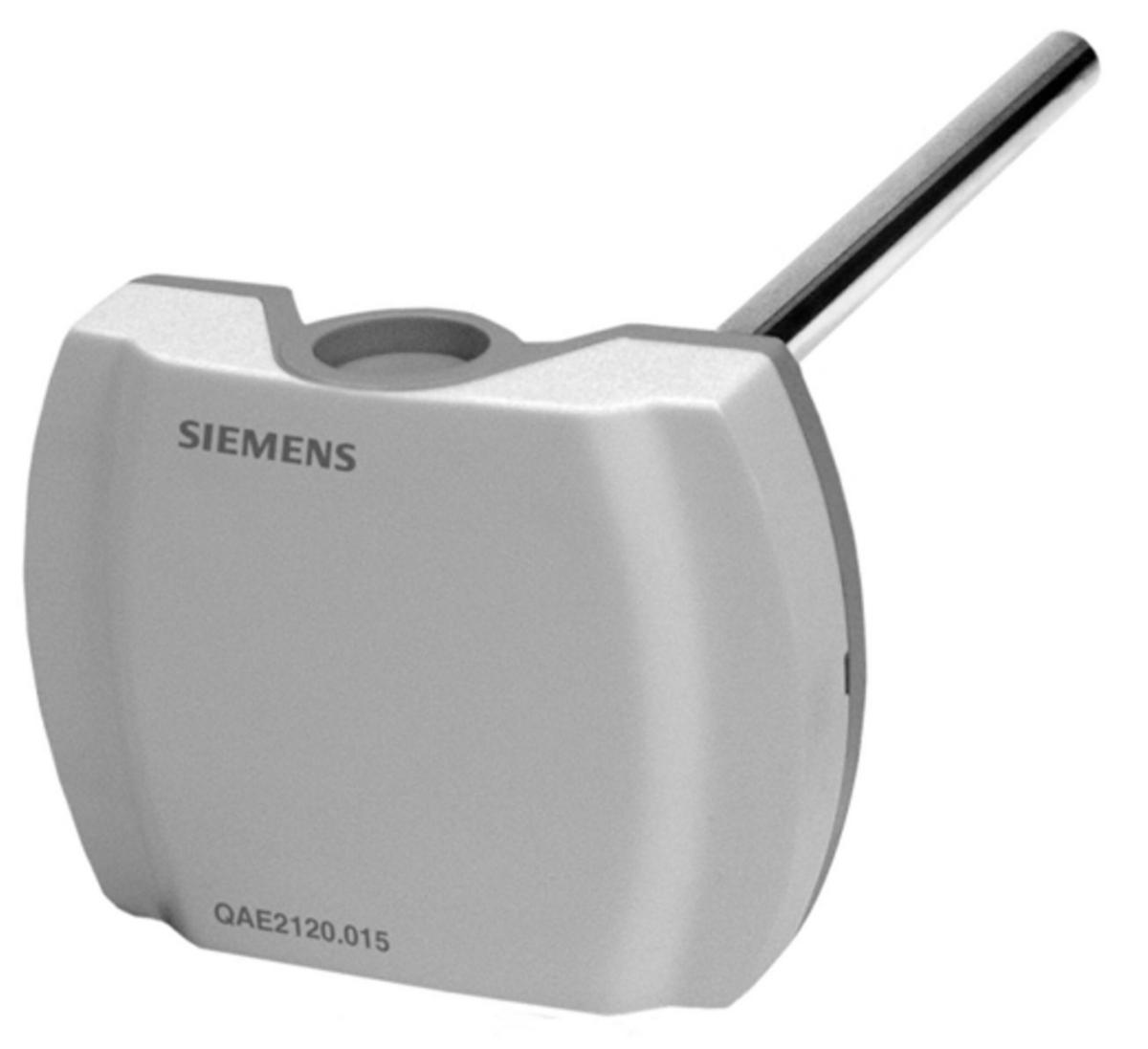

Immersion temperature sensor QAE, Siemens
SENSOR SIEMENS QAE2120.010 TEMP. DIVE LGNI 1000
Article number: Suppl. article no:
5353772
BPZ:QAE2120.010
to see price and stock
Immersion temperature sensor without thermowell for measuring the water temperature in pipelines.
Plug length 110 mm, for installation without thermowell. Loose thermowells in various materials as accessories. Control and restriction of the flow temperature. Restriction of return temperature. The sensor consists of a plastic cover with snap closure and a sensor tube. The connection terminals are available after removing the cover. The cable is supplied through a sealing cable bushing Pr 18.6. Minimum insertion length into the medium for all sensors is 60 mm.
Plug length 110 mm, for installation without thermowell. Loose thermowells in various materials as accessories. Control and restriction of the flow temperature. Restriction of return temperature. The sensor consists of a plastic cover with snap closure and a sensor tube. The connection terminals are available after removing the cover. The cable is supplied through a sealing cable bushing Pr 18.6. Minimum insertion length into the medium for all sensors is 60 mm.
- Article number: 5353772
- Suppl. article no: BPZ:QAE2120.010
- Ean no: 7612914073464
- Material class PEF22B
Technical data
- Insert length: 100 mm
- Housing width: 80 mm
- Housing depth: 31 mm
- Housing height: 60 mm
- Degree of protection (IP): IP42
- Temperature measuring range: -30-130 °C
- Explosion-proof: No
- Sensor type: Ni1000
- Wireless: No
- Type: QAE2120.009
