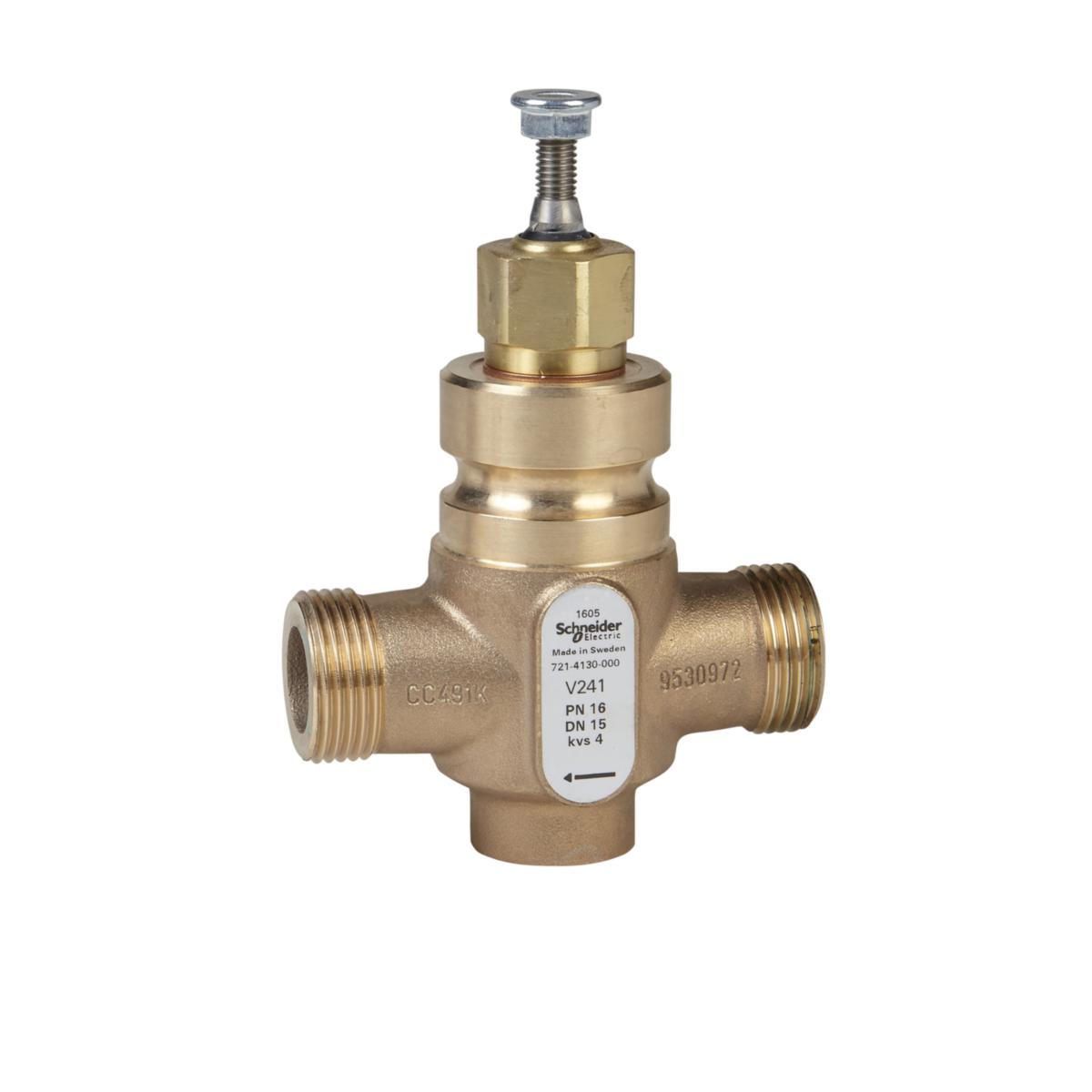

Cone Valve V241, Schneider
Valve 2 way Thread V241/15/4.0
Article number: Suppl. article no:
5495124
7214130000
to see price and stock
The cone valve V241 can be used with advantage in a large number
applications in heating, cooling, air treatment
and tap water. The valve can handle the following types of media; hot water and cooling water, consumption water and water with antifreeze, e.g. glycol. If media with a temperature lower than 0 °C is used, the valve should be equipped with stem heaters to prevent freezing on the stem.
The two-way valve V241 comes in several valve sizes.
applications in heating, cooling, air treatment
and tap water. The valve can handle the following types of media; hot water and cooling water, consumption water and water with antifreeze, e.g. glycol. If media with a temperature lower than 0 °C is used, the valve should be equipped with stem heaters to prevent freezing on the stem.
The two-way valve V241 comes in several valve sizes.
- Article number: 5495124
- Suppl. article no: 7214130000
- Ean no: 3606489658502
- Material class PEF430
Technical data
- Nominal diameter connection 1: 1/2 inch (15)
- Nominal diameter connection 2: DN 15
- Outer pipe diameter connection 1: 15 mm
- Outer pipe diameter connection 2: 26.9 mm
- Kvs value: 4
- Connection 1: Other
- Connection 2: External thread cylindrical BSPP-G (ISO 228-1)
- Article compression class: PN 16
- Surface protection: Untreated
- Housing material: Bronze
- Material quality: Bronze (Rg 5)
- Stroke length: 20 mm
- Automatic flow control: No
- Leakage loss of Kvs value: 0.02 %
- Flange compression class: PN 16
- Characteristic curve: Equal percentage
- Suitable for cooling: Yes
- Suitable for process water: Yes
- Suitable for tap water: Yes
- REACH Date: 2019-01-01
- REACH Information obligation: No
