Esbe

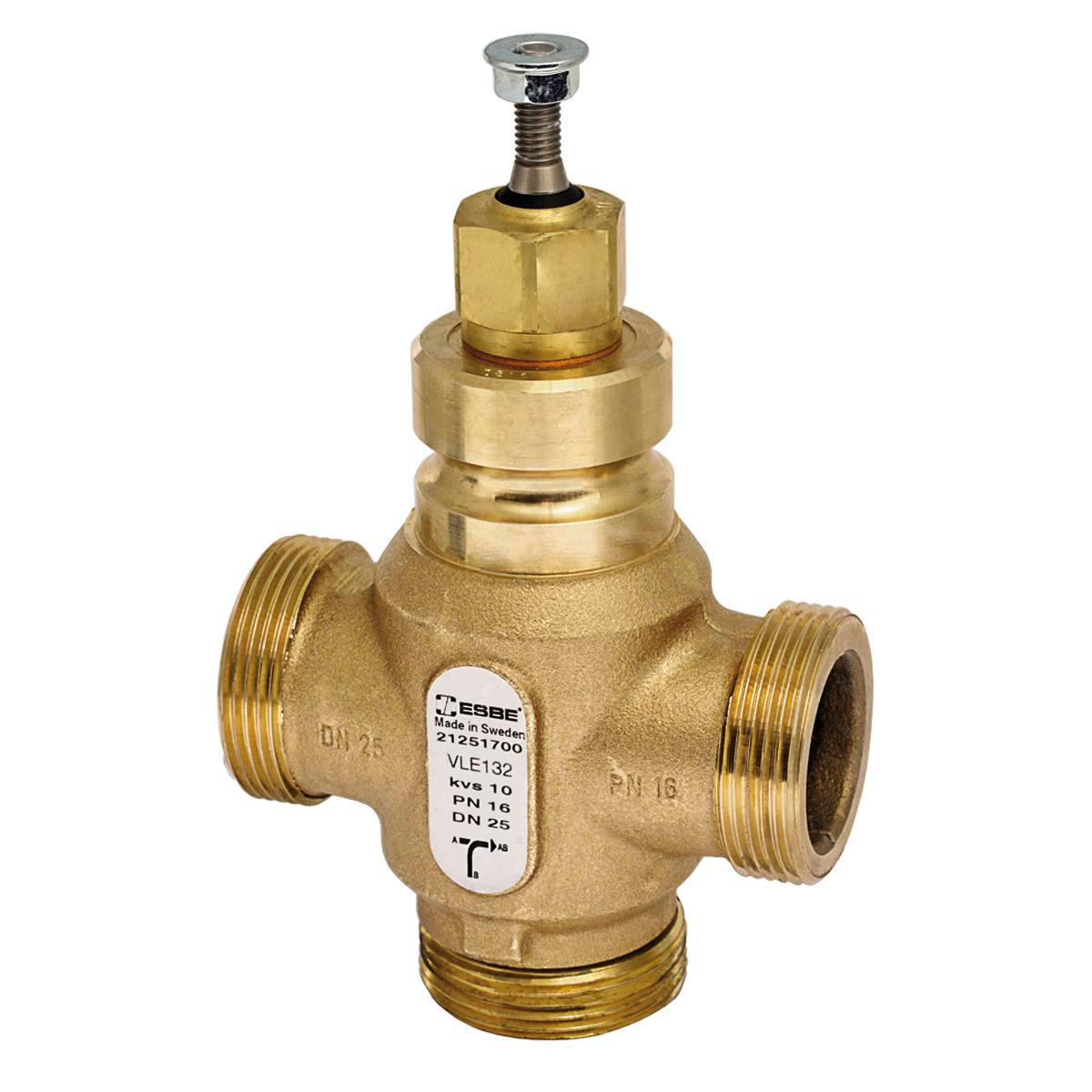

Control valve ESBE VLE132 3-way. Threaded
VLE132 G1 1/2 DN25 3-WAY ESBE PN16 G1 1/2 DN25 KVS 10
Article number: Suppl. article no:
5362190
21251700
to see price and stock
- Article number: 5362190
- Suppl. article no: 21251700
- Ean no: 7330193025829
- Replaces art.nbr: 4551447V
- Material class PEF40B
Technical data
- Connections: External thread
- Article compression class: PN 16
- Kvs value: 10
- Leakage loss of Kvs value: 0.02 %
- Material quality: Bronze (Rg 5)
- Nominal diameter: DN 25
- Housing material: Bronze
- Stroke length: 20 mm
- Max. pressure difference in opened position: 6 bar
- Surface protection: Untreated
- With coupling connection 3: No
- With coupling connection 1: No
- With coupling connection 2: No
- Characteristic curve: Equal percentage
- Length of connection 1: 52.5 mm
- Length of connection 2: 52 mm
- Length of connection 3: 52.5 mm
- Outer pipe diameter all connections: 40 mm
- KVS value for bypass: 10
- Medium temperature (continuous): -20-120 °C
- REACH Date: 2021-01-19
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
