Esbe

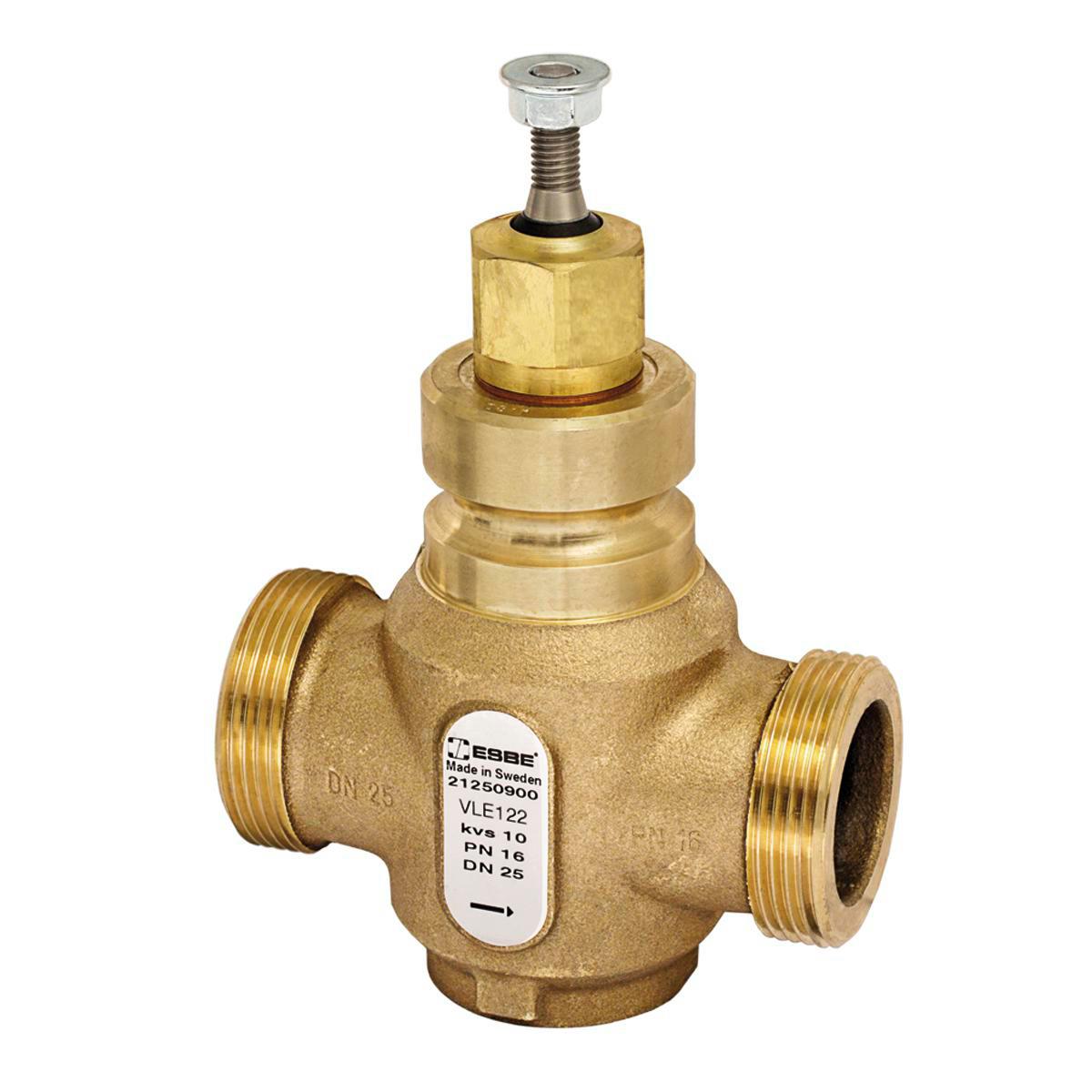

Control valve ESBE VLE122 2-way. Threaded
VLE122 G1 2-WAY CONTROL VALVE ESBE PN16 G1 DN15 KVS 1.0
Article number: Suppl. article no:
5362177
21250400
to see price and stock
- Article number: 5362177
- Suppl. article no: 21250400
- Ean no: 7330193025454
- Replaces art.nbr: 5495121
- Material class PEF40B
Technical data
- Nominal diameter connection 1: DN 15
- Nominal diameter connection 2: DN 15
- Kvs value: 1
- Connection 1: External thread cylindrical BSPP-G (ISO 228-1)
- Connection 2: External thread cylindrical BSPP-G (ISO 228-1)
- Article compression class: PN 16
- Surface protection: Untreated
- Material quality: Bronze (Rg 5)
- Stroke length: 20 mm
- Medium temperature (continuous): -20-150 °C
- Leakage loss of Kvs value: 0.02 %
- Length of connection 1: 50 mm
- Length of connection 2: 36 mm
- Max. pressure difference in opened position: 6 bar
- Characteristic curve: Equal percentage
- REACH contains candidate substances: Bly
- REACH Date: 2024-01-23
- REACH Information obligation: Yes
