Danfoss

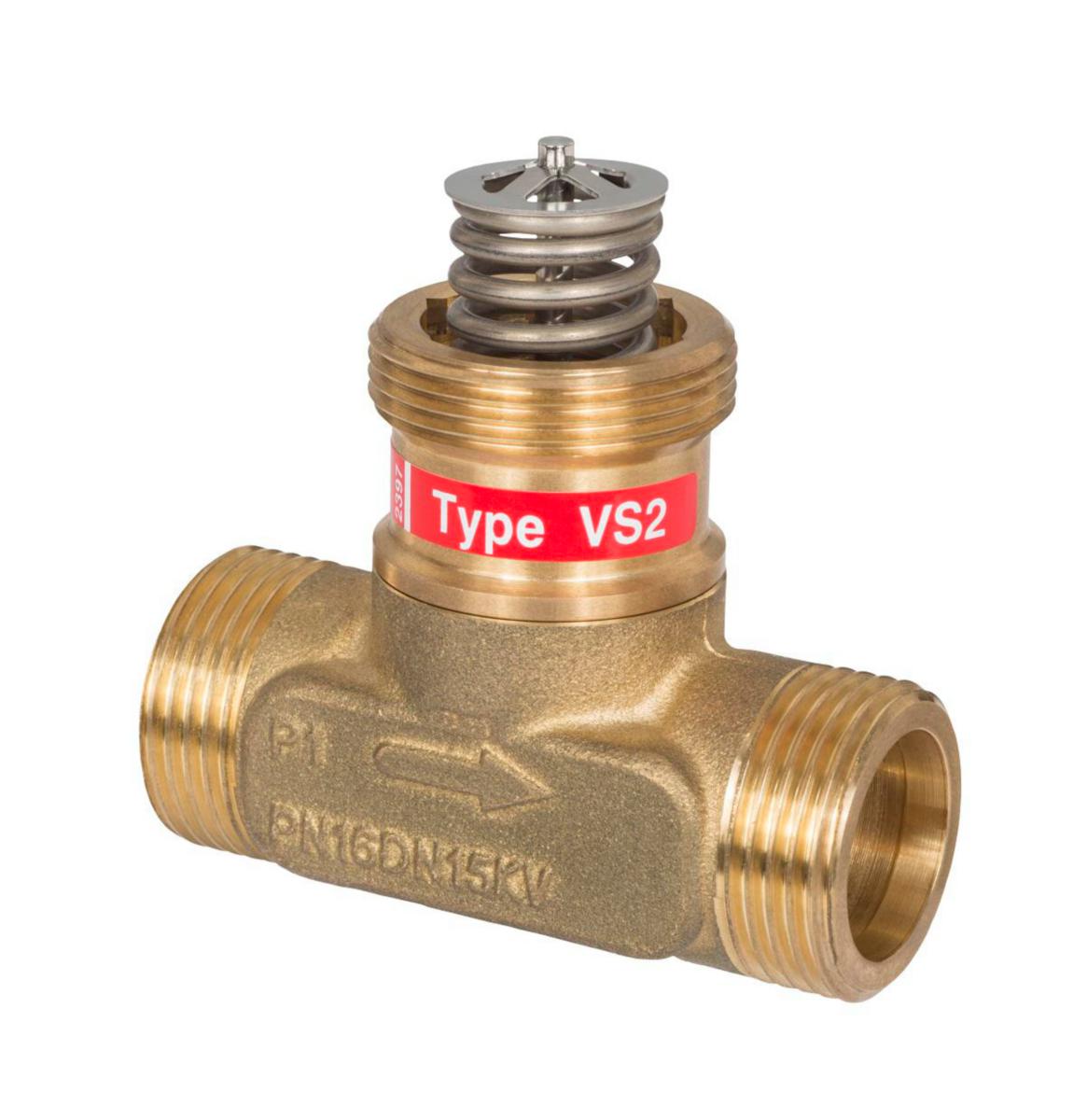

Danfoss control valve VS2
VS 2 PN16 15/1,6 2-way seated PN16. DN15 MALE THREAD
Article number: Suppl. article no:
5360083
065F2115
to see price and stock
- Article number: 5360083
- Suppl. article no: 065F2115
- Ean no: 5702421510223
- Material class PEF30B
Technical data
- Packagin Size: 1 ST/36 ST
- Nominal diameter connection 1: 3/4 inch (20)
- Nominal diameter connection 2: 3/4 inch (20)
- Kvs value: 1.6
- Connection 1: External thread cylindrical BSPP-G (ISO 228-1)
- Connection 2: External thread cylindrical BSPP-G (ISO 228-1)
- Article compression class: PN 16
- Surface protection: Untreated
- Housing material: Brass
- Material quality: Dezincification resistant brass (DZR)
- Stroke length: 4 mm
- Medium temperature (continuous): 2-130 °C
- Automatic flow control: No
- Leakage loss of Kvs value: 0.05 %
- Axle height: 54 mm
- Length of connection 1: 65 mm
- Length of connection 2: 65 mm
- Max. pressure difference in opened position: 6 bar
- With flow measuring point: No
- Characteristic curve: Linear
- Suitable for heating: Yes
- REACH Date: 2024-03-11
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
