Siemens

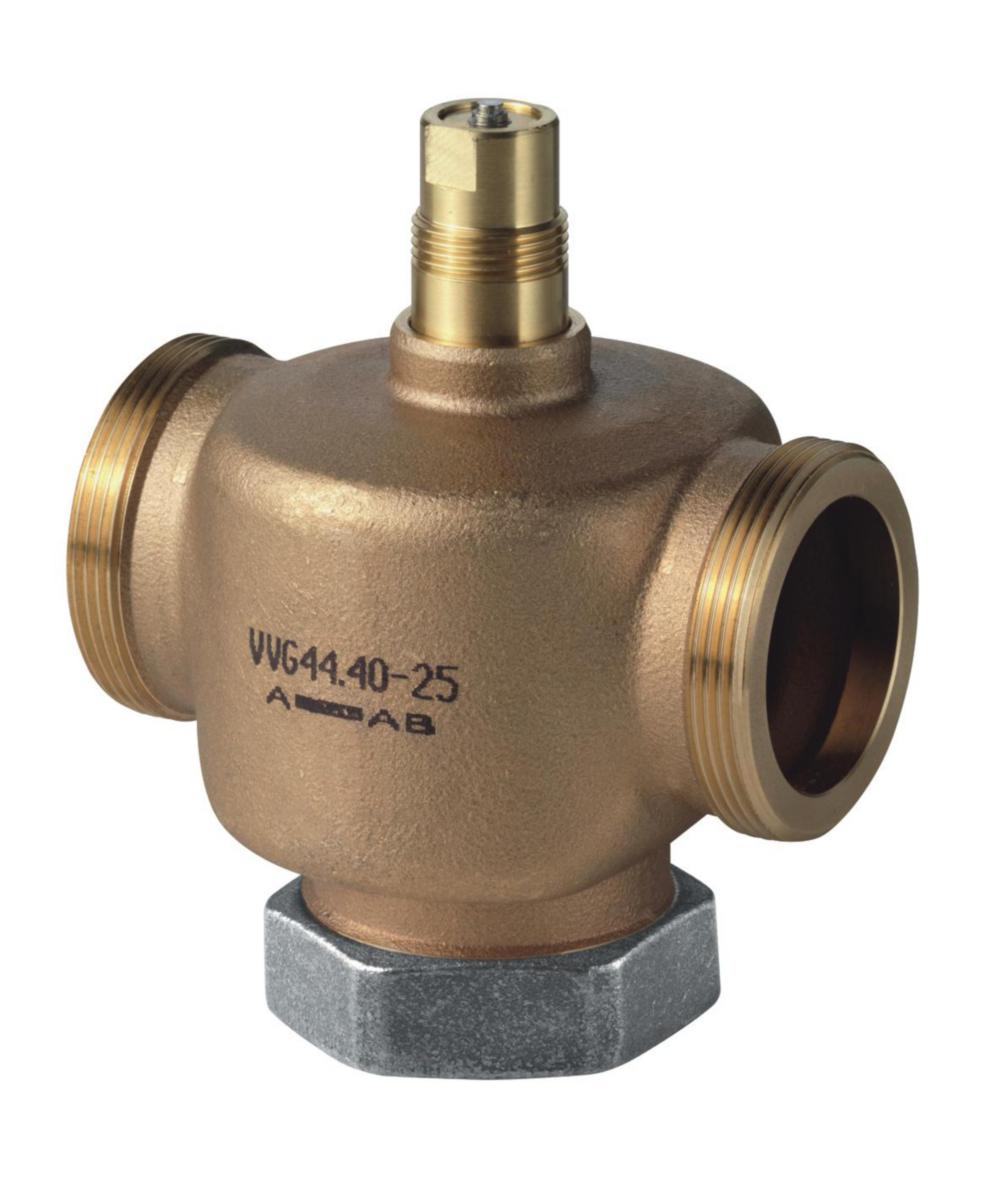

Control valve 2-way VVG44, Siemens
15 CONTR VALVE VVG44.15-1.6 2-WAY KVS 1.6 PN16 GG
Article number: Suppl. article no:
5353685
BPZ:VVG44.15-1.6
to see price and stock
2-way valve without actuator, excl. couplers.
- Article number: 5353685
- Suppl. article no: BPZ:VVG44.15-1.6
- Ean no: 7612914011381
- Material class PEF20B
Technical data
- Nominal diameter connection 1: DN 15
- Nominal diameter connection 2: DN 15
- Outer pipe diameter connection 1: 15 mm
- Outer pipe diameter connection 2: 15 mm
- Kvs value: 1.6
- Connection 1: External thread cylindrical BSPP-G (ISO 228-1)
- Connection 2: External thread cylindrical BSPP-G (ISO 228-1)
- Article compression class: PN 16
- Surface protection: Other
- Housing material: Other
- Type: VVG44.15-1.6
- Material quality: Bronze (Rg 5)
- Stroke length: 5.5 mm
- With coupling connection 1: Yes
- With coupling connection 2: Yes
- Control ratio (Svo): 100 %
- Automatic flow control: No
- Leakage loss of Kvs value: 0.02 %
- Working length connection 1: 50 mm
- Working length connection 2: 50 mm
- Axle height: 49 mm
- Length of connection 1: 50 mm
- Length of connection 2: 50 mm
- Max. pressure difference in opened position: 4 bar
- With flow measuring point: No
- Flange compression class: PN 16
- Characteristic curve: Linear
- REACH Date: 2024-05-01
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
