Danfoss

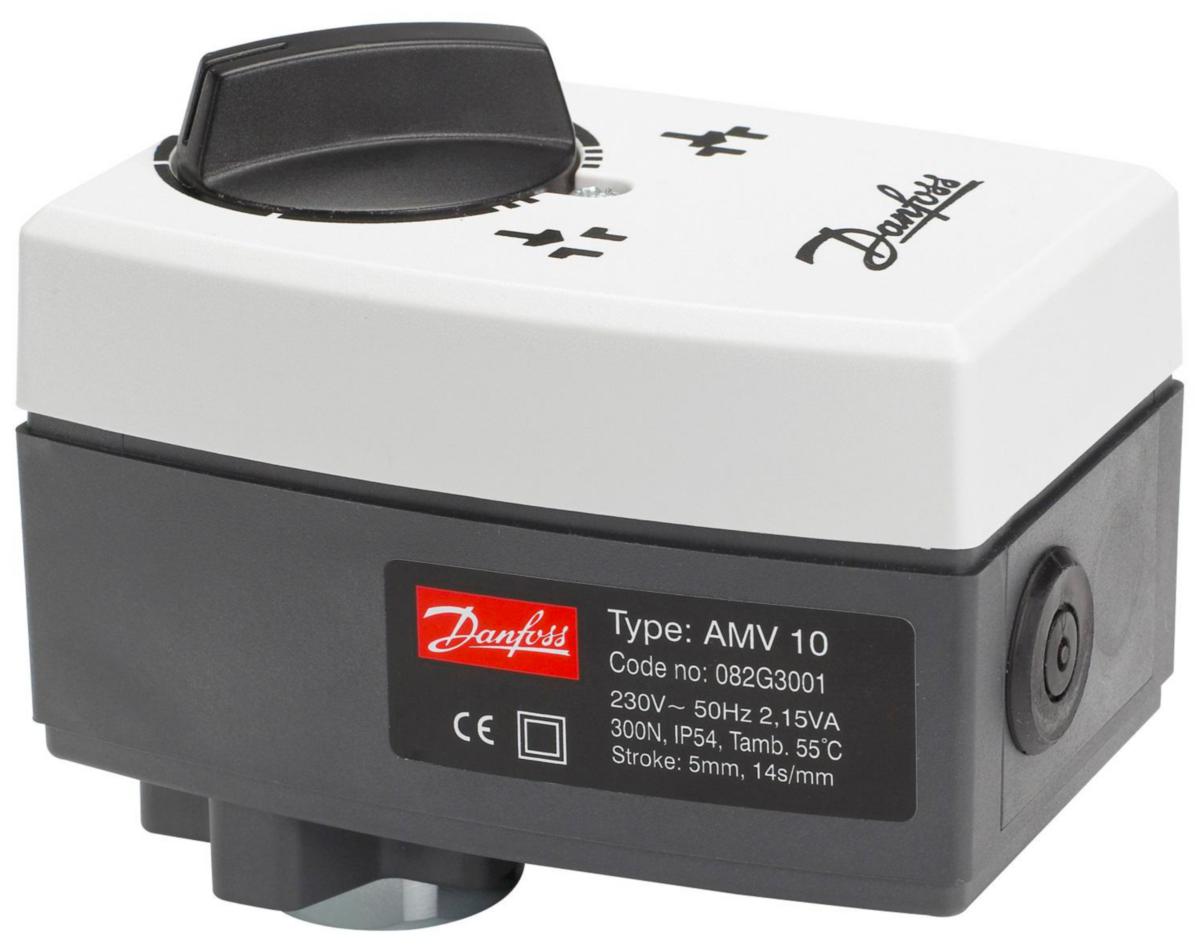

Actuator Danfoss AME/AMV
AMV10 230V 14s/mm 5 mm 300N 230V. 14S/MM. 5MM. 300N
Article number: Suppl. article no:
5550593
082G3001
to see price and stock
- Article number: 5550593
- Suppl. article no: 082G3001
- Ean no: 5702421507469
- Material class PEF31A
Technical data
- Packagin Size: 1 ST/16 ST
- Operating time: 70 s
- Supply voltage: 230 V AC
- Degree of protection (IP): IP54
- Width: 83 mm
- Ambient temperature: 0-55 °C
- Depth: 121 mm
- Height: 107 mm
- Deactivated when closed: No
- Transmission: With cogwheels
- Control signal: 3-point
- Self-adjusting travel length: Yes
- Adjusting force: 300 N
- Model: Linear
- Allowable relative humidity: 5-95 %
- Stroke length: 5 mm
- Suitable for valve: Yes
- Return at zero supply voltage: No
- Adjustable operating range: No
- Adjustable position feedback signal: No
- Regulation type modulating: No
- Connection to stop valve: Brand-dependent
- Suitable for air accessory: No
- Regulation type on/off: No
- Regulation type splitrange: No
- Position reporting system: None
- Housing material: Plastic
- Automatic stroke recognition: No
- Max. electric power input: 2 VA
- With mechanical setting indicator: Yes
- Auxiliary contacts: No
- Communications protocol: None
- REACH Date: 2023-02-16
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
